3

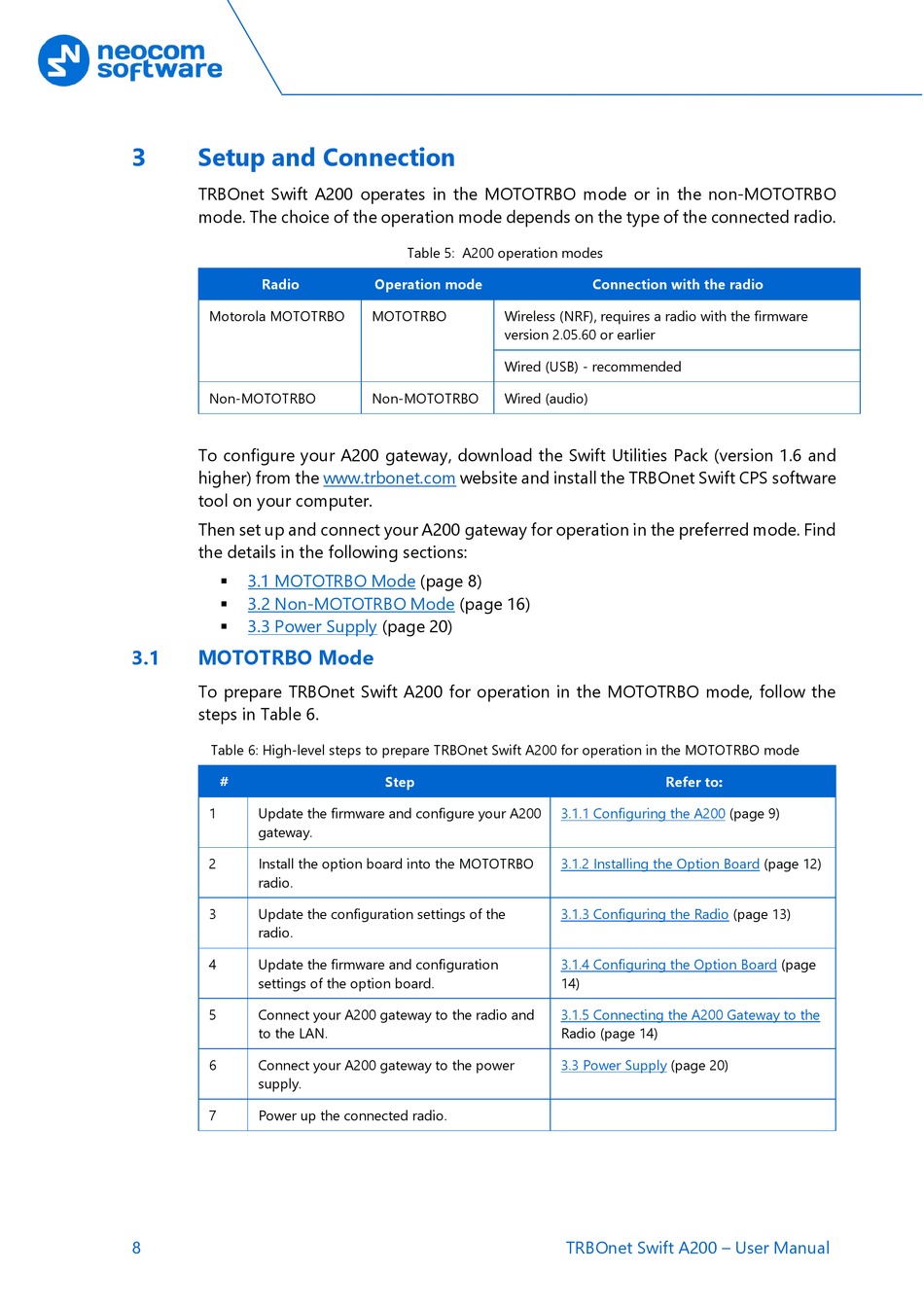

Setup and Connection

TRBOnet Swift A200 operates in the MOTOTRBO mode or in the non-MOTOTRBO
mode. The choice of the operation mode depends on the type of the connected radio.
Radio
Motorola MOTOTRBO
Non-MOTOTRBO
To configure your A200 gateway, download the Swift Utilities Pack (version 1.6 and
higher) from the
tool on your computer.
Then set up and connect your A200 gateway for operation in the preferred mode. Find
the details in the following sections:

3.1 MOTOTRBO Mode


3.2 Non-MOTOTRBO Mode

3.3 Power Supply

3.1 MOTOTRBO Mode
To prepare TRBOnet Swift A200 for operation in the MOTOTRBO mode, follow the
steps in Table 6.
Table 6: High-level steps to prepare TRBOnet Swift A200 for operation in the MOTOTRBO mode
#
1 Update the firmware and configure your A200
gateway.
2 Install the option board into the MOTOTRBO
radio.
3 Update the configuration settings of the
radio.
4 Update the firmware and configuration
settings of the option board.
5 Connect your A200 gateway to the radio and
to the LAN.
6 Connect your A200 gateway to the power
supply.
7 Power up the connected radio.
8
Table 5: A200 operation modes
Operation mode
MOTOTRBO
Non-MOTOTRBO
www.trbonet.com website and install the TRBOnet Swift CPS software
(page 8)
(page 16)
(page 20)
Step
Connection with the radio
Wireless (NRF), requires a radio with the firmware
version 2.05.60 or earlier
Wired (USB) - recommended
Wired (audio)
Refer to:
3.1.1 Configuring the A200
3.1.2 Installing the Option Board
3.1.3 Configuring the Radio
3.1.4 Configuring the Option Board
14)
3.1.5 Connecting the A200 Gateway to the
Radio (page 14)
3.3 Power Supply (page 20)
TRBOnet Swift A200 – User Manual
(page 9)
(page 12)
(page 13)
(page
