Wiring Specifications - SMC Networks EX260-SPR1/3 Quick Start Manual

IO-Link Compatible SI Unit
EX260-SIL1-X207/X210

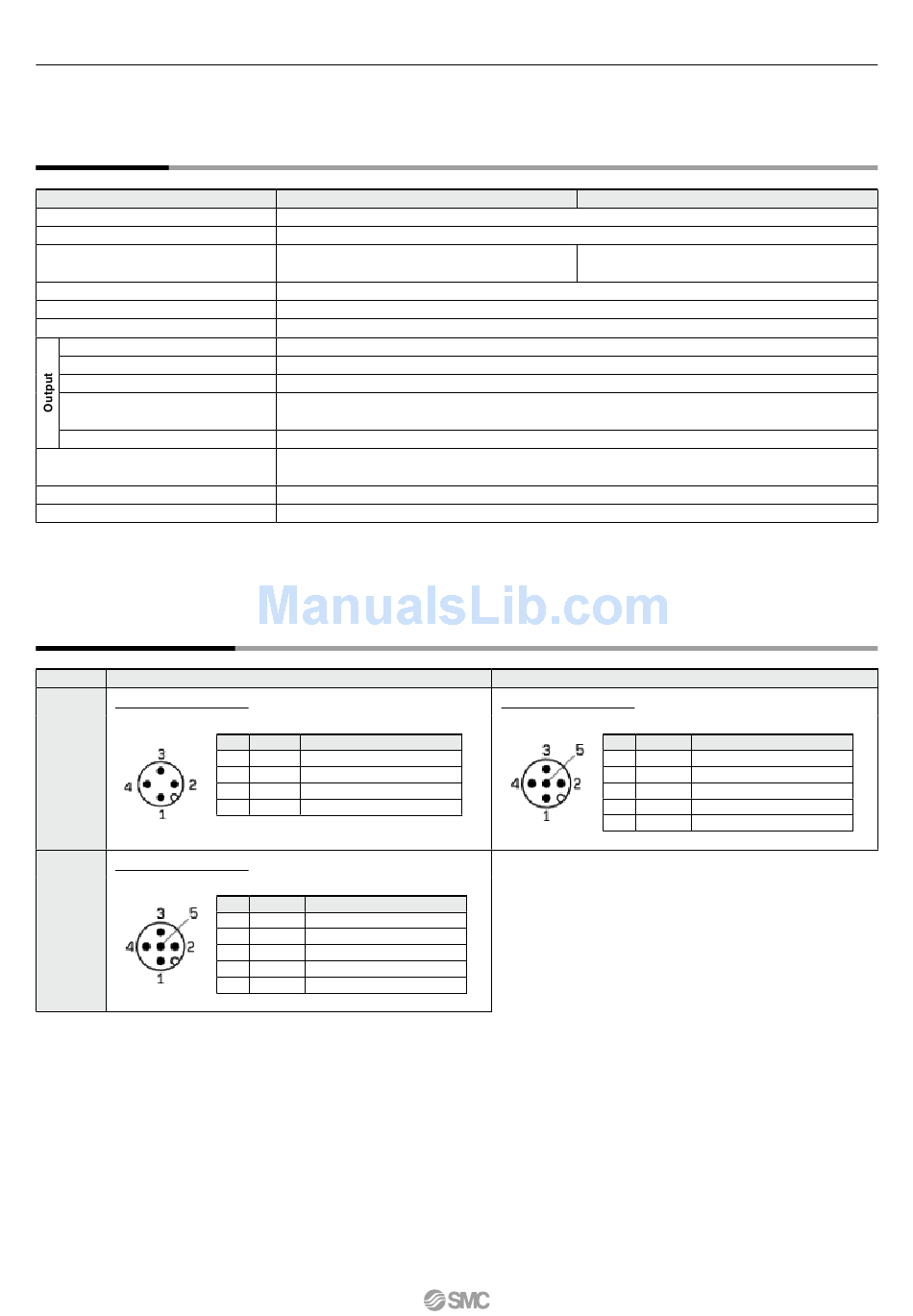

Specifications
Item
Protocol
Communication speed
IO-Link port class
(Communication connector)
IO-Link type
Vendor ID
Process data size
Number of outputs
Output type
Connected load
Solenoid valve power supply
Residual voltage
Control unit power supply
Weight
Standards
IODD files are required to configure this product.
Please contact SMC for the IODD files.
Also, please contact SMC for the operation manual.

Wiring Specifications

Suffix
M12 4-pin plug, A-coded
X207
M12 5-pin plug, A-coded
X210
EX260-SIL1-X207
(Valve power supplied from the valve power supply connector)
Solenoid valve with surge voltage suppressor of 24 VDC and 1.5 W or less (manufactured by SMC)
Communication connector
No. Designation Description
1
L+ +24 V for control unit
2
— Unused
3
L− 0 V for control unit
4
C/Q IO-Link communication data
No. Designation Description
1
L+ +24 V for control unit
2
SV24V +24 V for solenoid valve
3
L− 0 V for control unit
4
C/Q IO-Link communication data
5
SV0V 0 V for solenoid valve
Specialized Product
IO-Link version 1.1
COM2 (38.4 kbps)/COM3 (230.4 kbps) (Selected by DIP switch)
Class A
Device
131
0 byte input/4 bytes output
32 outputs
PNP (Negative common)/Source
22.8 to 26.4 VDC
2 A or less (according to the solenoid valve station specification)
0.4 VDC or less
18 to 30 VDC
0.1 A or less
200 g or less
CE marking, UL/CSA
Power supply connector for solenoid valve
M12 5-pin plug, A-coded
P .G.
Point to Group
information
EX260-SIL1-X210
Class B
(Valve power supplied from the communication connector)
No. Designation Description
1
— Unused
2
SV24V +24 V for solenoid valve
3
— Unused
4
— Unused
5
SV0V 0 V for solenoid valve
