IO-Link Compatible SI Unit
EX260-SIL1-X207/X210

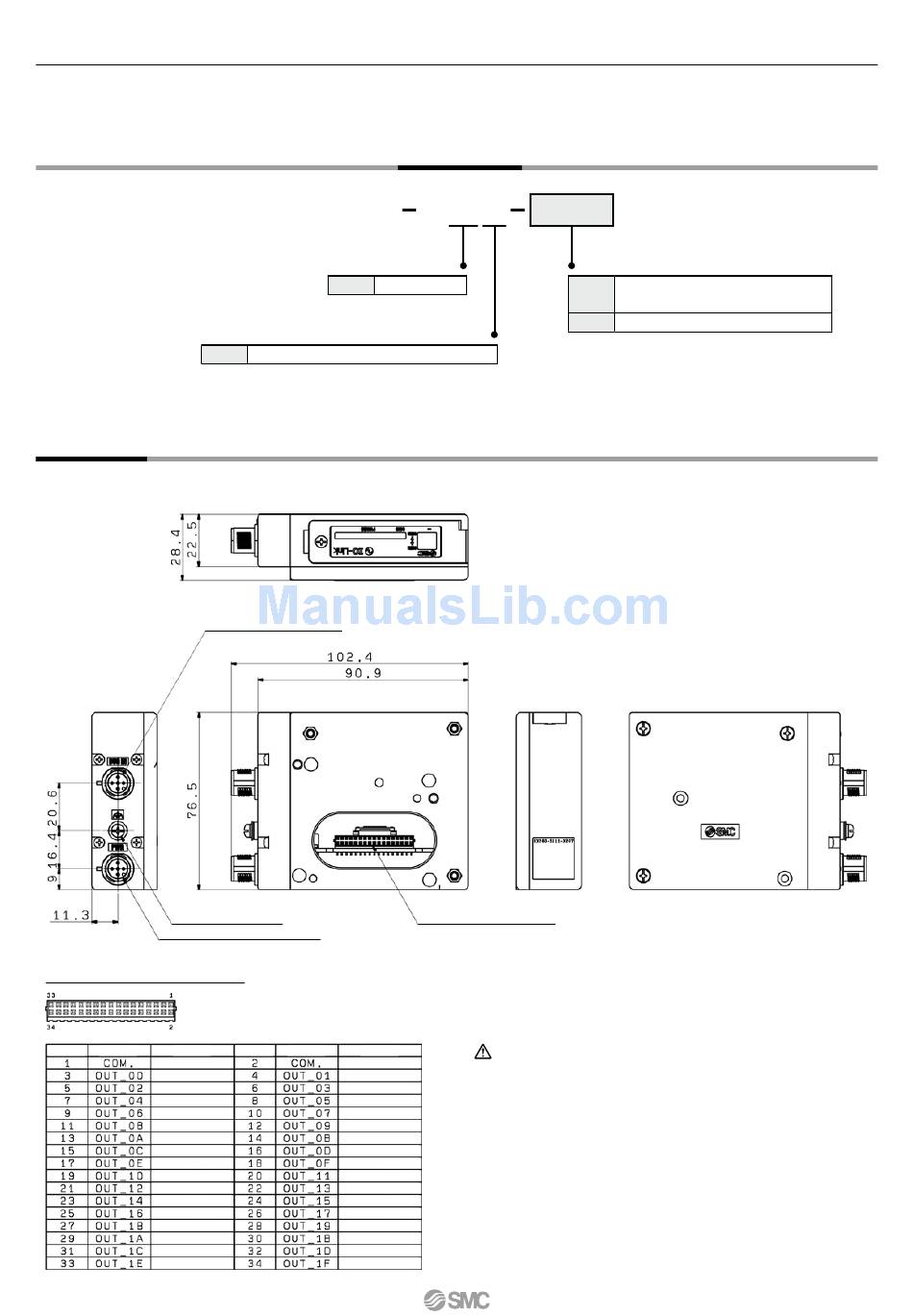

Dimensions
EX260-SIL1-X207
(The X210 is not provided with a power supply connector.)
Communication connector
Ground terminal (M3)
Power supply connector (PWR)
Output connector (34 pins, Receptacle)
No. Designation Description
Output common (0 V)
Solenoid output 0
Solenoid output 2
Solenoid output 4
Solenoid output 6
Solenoid output 8
Solenoid output 10
Solenoid output 12
Solenoid output 14
Solenoid output 16
Solenoid output 18
Solenoid output 20
Solenoid output 22
Solenoid output 24
Solenoid output 26
Solenoid output 28
Solenoid output 30
EX260
Communication protocol
IL
Output specification
1
32 outputs, PNP (Negative common)/Source
No. Designation Description
Output common (0 V)
Solenoid output 1
Solenoid output 3
Solenoid output 5
Solenoid output 7
Solenoid output 9
Solenoid output 11
Solenoid output 13
Solenoid output 15
Solenoid output 17
Solenoid output 19
Solenoid output 21
Solenoid output 23
Solenoid output 25
Solenoid output 27
Solenoid output 29
Solenoid output 31
Specialized Product

How to Order

S IL 1 X207
IO-Link
Output connector (34 pins)
Caution
• For dimensions when combined with the valve manifold, use the
dimensions of the valve manifold where the standard EX260 series unit
is mounted.
• Order the valve manifold separately. Specify "no SI unit" and "negative
common" for the valve manifold specifications.
P .G.
Point to Group
information
IO-Link port class
IO-Link port Class A, Valve power
X207
supplied from another connector
X210
IO-Link port Class B
[mm]
