Chapter 1 Interface Introduction

1.1 Overview

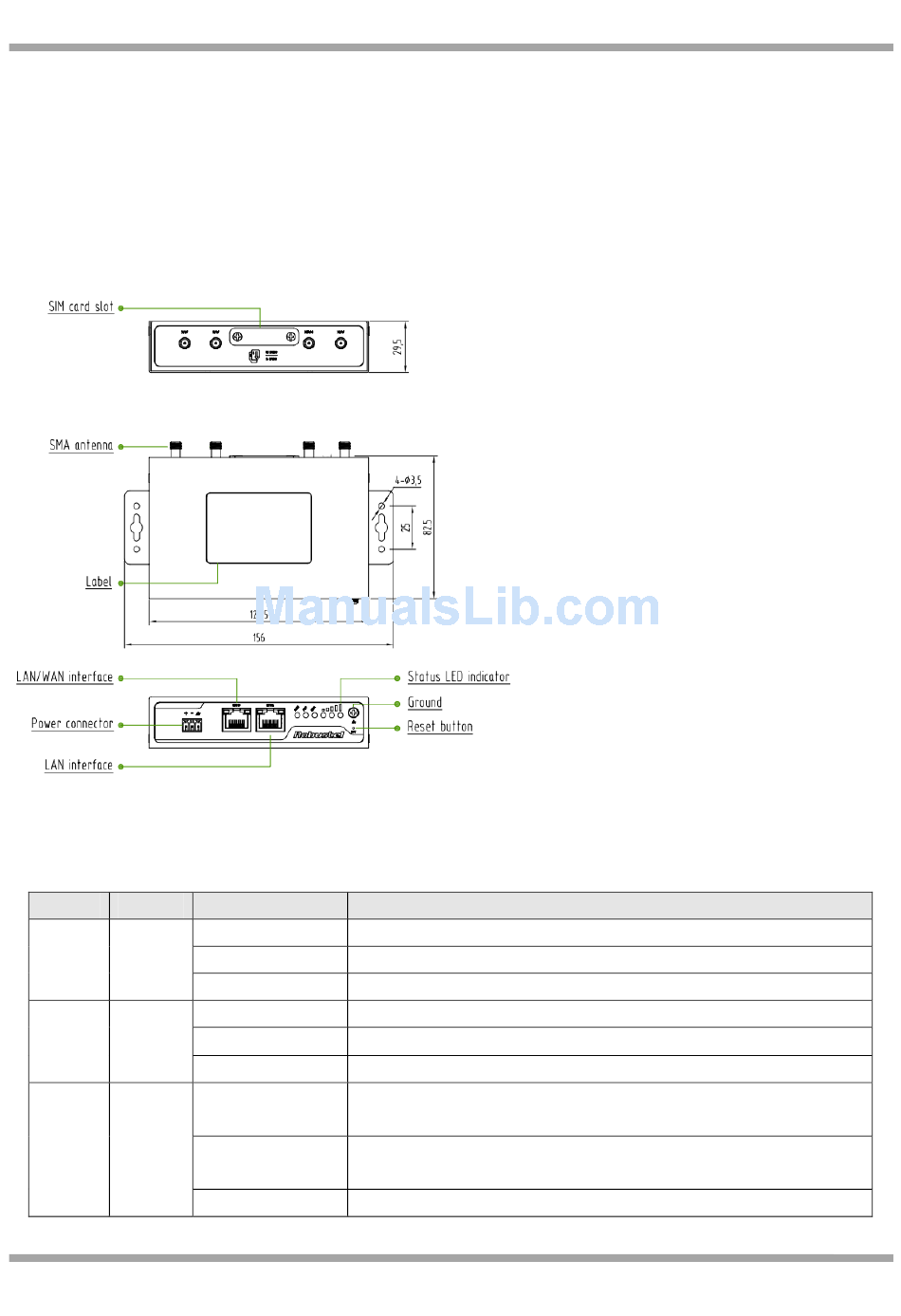

As shown in the following figures, R2000 router has two Ethernet ports (2xLAN or 1xLAN+1xWAN) and two cellular
SIM card slots.

1.2 LED Indicators

Name Color
RUN Green
PPP Green
USR Green
RT_QG_R2000 Installation and Configuration_v.2.0.2
Status Function
Blinking Router is ready.
On Router is starting.
Off Router is power off.
Blinking PPP Indicator: Null
On PPP Indicator: PPP connection is up.
Off PPP Indicator: PPP connection is down.
SIM: using backup SIM card.
Blinking
NET: register to a low level network.
SIM: working fine.
Off after blinking
NET: working fine.
Light up OpenVPN: OpenVPN is connected.
