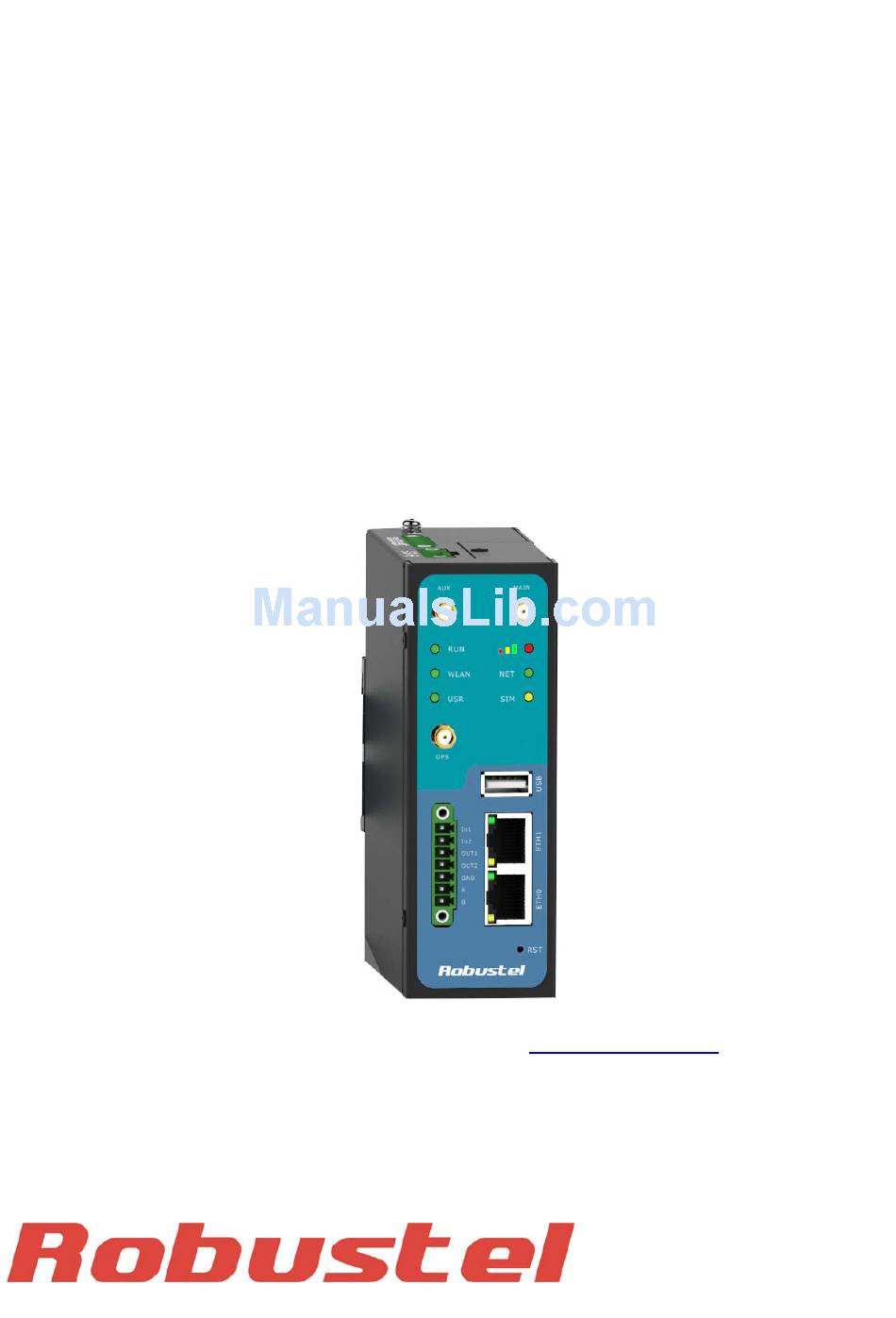

Robustel GoRugged R3000‐3P‐GPS
Dual SIM Industrial Cellular VPN Router
For GPRS/EDGE/UMTS/HSPA Networks

User Guide

Document Name:          User Guide
Firmware            :          1.01.18
Date                    :          2014‐12‐10
Doc ID                  :
)
RT_UG_R3000‐3P‐GPS_v.1.0.0



www.robustel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoRugged R3000-3P-GPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Robustel GoRugged R3000-3P-GPS

  • Page 1 Date                    :          2014‐12‐10  Doc ID                  :        RT_UG_R3000‐3P‐GPS_v.1.0.0        www.robustel.com               ...
  • Page 2       Technical Support Contact Information  Tel      :        +86‐18924045664  Fax      :        +86‐20‐82321505  E‐mail :        support@robustel.com  Web    :        www.robustel.com               ...
  • Page 3 Robustel GoRugged R3000‐3P‐GPS User Guide    Important Notice  Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data  may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare  when wireless devices such as the router are used in a normal manner with a well‐constructed network, the router  should not be used in situations where failure to transmit or receive data could result in damage of any kind to the  user or any other party, including but not limited to personal injury, death, or loss of property. Robustel accepts no  responsibility  for  damages  of  any  kind  resulting  from  delays  or  errors  in  data  transmitted  or  received  using  the  router, or for failure of the router to transmit or receive such data.    Safety Precautions  General   The router generates radio frequency (RF) power. When using the router care must be taken on safety issues  related to RF interference as well as regulations of RF equipment.   Do  not  use  your  router  in  aircraft,  hospitals,  petrol  stations  or  in  places  where  using  cellular  products  is ...
  • Page 4 Robustel GoRugged R3000‐3P‐GPS User Guide     Do not expose the router to extreme conditions such as high humidity / rain, high temperatures, direct sunlight,  caustic / harsh chemicals, dust, or water.   Do not try to disassemble or modify the router. There is no user serviceable part inside and the warranty would  be void.   Do not drop, hit or shake the router. Do not use the router under extreme vibrating conditions.   Do not pull the antenna or power supply cable. Attach/detach by holding the connector.   Connect the router only according to the instruction manual. Failure to do it will void the warranty.   In case of problem, please contact authorized distributor.      RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          3 / 129 ...
  • Page 5 Robustel GoRugged R3000‐3P‐GPS User Guide    Regulatory and Type Approval Information  Table 1: Directives  Directive of the European Parliament and of the Council of 27 January 2003    on the restriction of the use of certain hazardous substances in electrical and    2002/95/EC  electronic equipment (RoHS)    Directive  of  the  European  Parliament  and  of  the  Council  on  waste  electrical  and  electronic  2002/96/EC  equipment (WEEE)  Directive of the European Parliament and of the Council of 8 December    2003 amending directive 2002/96/ec on waste electrical and electronic    2003/108/EC  equipment (WEEE)    Table 2: Standards of the Ministry of Information Industry of the People’s Republic of China  SJ/T  “Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Information  11363‐2006  Products” (2006‐06).  “Marking for Control of Pollution Caused by Electronic Information Products”   ...
  • Page 6: Table Of Contents

    Robustel GoRugged R3000‐3P‐GPS User Guide    Contents  Chapter 1.   Product Concept  ............................ 7   1.1   Overview .............................. 7   1.2   Packing List .............................. 7   1.3   Specifications ............................. 9   1.4   Selection and Ordering Data ........................ 12   Chapter 2.   Installation  .............................. 13   2.1   LED Indicators  ............................ 13   2.2   PIN assignment  ............................ 13  ...
  • Page 7 Robustel GoRugged R3000‐3P‐GPS User Guide    3.27   Configuration ‐> SNMP  .......................... 85   3.28   Configuration ‐> VRRP .......................... 87   3.29   Configuration ‐> AT over IP  ........................ 88   3.30   Configuration ‐> Phone Book ........................ 89   3.31   Configuration ‐> SMS  .......................... 90   3.32   Configuration ‐> Reboot  ........................... 91   3.33   Configuration ‐> Portal .......................... 92   3.34  ...
  • Page 8: Chapter 1. Product Concept

    Robustel GoRugged R3000‐3P‐GPS User Guide    Chapter 1. Product Concept   1.1 Overview  Robustel  GoRugged  R3000  is  a  rugged  cellular  router  offering  state‐of‐the‐art  mobile  connectivity  for  machine  to  machine (M2M) applications.     Dual SIM redundancy for continuous cellular connections, supports 2G/3G.   WAN link management: cellular WAN/Ethernet WAN backup.   VPN tunnel: IPSec/OpenVPN/PPTP/L2TP/GRE.   Supports Modbus gateway (Modbus RTU/ASCII to Modbus TCP).   Supports GPS&GLONASS , provides real time location and tracking.   Supports SDK, provides user programmatic interface.     Supports 802.1Q VLAN Trunk.  ...
  • Page 9 Robustel GoRugged R3000‐3P‐GPS User Guide         3‐pin pluggable terminal block with lock for power connector x 1     7‐pin pluggable terminal block with lock for serial port, I/O and console port x 1     CD with user guide x 1  Note: Please notify your sales representative if any of the above items are missing or damaged.    Optional accessories (can be purchased separately):   SMA antenna (Stubby antenna) x 1  Stubby antenna                                             ...
  • Page 10: Specifications

    Robustel GoRugged R3000‐3P‐GPS User Guide     Ethernet cable x 1     Wall Mounting Kit     35mm Din‐Rail mounting kit     AC/DC Power Supply Adapter (12VDC, 1.5A) x 1 (EU, US, UK, AU plug optional)      1.3 Specifications  Cellular Interface  Standards: GSM/GPRS/EDGE/UMTS/HSPA   GPRS/EDGE: 850/900/1800/1900 MHz   HSUPA: 900/2100 or 850/1900 MHz optional, DL/UL 7.2/5.76 Mbps, fallback to 2G   HSPA+: 850/900/1900/2100 MHz, DL/UL 21/5.76 Mbps, fallback to 2G   SIM: 2 x (3V & 1.8V)   Antenna Interface: SMA Female     RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          9 / 129 ...
  • Page 11: Digital Input  1

    Robustel GoRugged R3000‐3P‐GPS User Guide      Ethernet Interface  Number of Ports: 2 x 10/100 Mbps, 2 LANs or 1 LAN 1 WAN   Magnet Isolation Protection: 1.5KV     Digital Input  Type: 2 x DI, Dry Contact   Dry Contact: On: open, Off: short to GND   Isolation: 3K VDC or 2K Vrms   Absolute Maximum VDC: 5V   Digital Filtering Time Interval: Software selectable   Interface: 3.5mm terminal block with lock     Digital Output  Type: 2 x DO, Sink   Isolation: 3K VDC or 2K Vrms   Absolute Maximum VDC: 30V   Absolute Maximum ADC: 300mA   Interface: 3.5mm terminal block with lock     Serial Interface  Number of Ports: 1 x RS‐232, 1 x RS‐485 or 2 x RS232 or 2 x RS485   ESD Protection: ±15KV  ...
  • Page 12 Robustel GoRugged R3000‐3P‐GPS User Guide    GPS & GLONASS Interface  Antenna Interface: SMA Female, 50 ohms impedance   Tracking Sensitivity: GPS: better than ‐148 dBm                                   GLONASS: better than ‐140 dBm  Horizontal position accuracy: GPS: 2.5 m                                                   GLONASS: 4.0 m ...
  • Page 13: Selection And Ordering Data

    Robustel GoRugged R3000‐3P‐GPS User Guide    Data Link: 400 mA (peak) @ 12 V    Physical Characteristics  Housing & Weight: Metal, 500g   Dimension: (L x W x H): 125 x 108 x 45 mm   Installation: 35mm Din‐Rail or wall mounting or desktop     Regulatory and Type Approvals  Approval & Detective: CE, R&TTE, FCC, RCM, RoHS, WEEE   EMC: EN 61000‐4‐2 (ESD) Level 4, EN 61000‐4‐3 (RS) Level 4   EN 61000‐4‐4 (EFT) Level 4, EN 61000‐4‐5 (Surge) Level 3  EN 61000‐4‐6 (CS) Level 4, EN 61000‐4‐8, EN 61000‐4‐12    Environmental Limits  Model No.  Description  Operating Environment  R3000‐3P‐GPS  HSPA+ Router  ‐40 to 85°C/5 to 95% RH    1.4 Selection and Ordering Data  Please refer to corresponding R3000 datasheet.    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          12 / 129 ...
  • Page 14: Chapter 2. Installation

    Robustel GoRugged R3000‐3P‐GPS User Guide    Chapter 2. Installation  2.1 LED Indicators            Name  Color  Status  Function  Blinking  Router is ready.  RUN  Green  On  Router is starting.  Off  Router is power off.  Blinking  PPP Indicator: Null  PPP  Green  On  PPP Indicator: PPP connection is up.  Off  PPP Indicator: PPP connection is down.  On/Blinking  VPN tunnel/PPPoE/DynDNS/GPS is up.  USR  Green  Off  VPN tunnel/PPPoE/DynDNS/GPS is down.  Green  On  Signal level: 21‐31 (Perfect signal level). ...
  • Page 15: Usb Interface

    Robustel GoRugged R3000‐3P‐GPS User Guide    PIN  Debug  RS232  Direction  1  2  1  RXD    Device R3000‐3P‐GPS  3  2  TXD    R3000‐3P‐GPS  Device  3  GND  GND    4  5  4    TXD  R3000‐3P‐GPS  Device  5    RXD  6  Device R3000‐3P‐GPS  7  6    RTS  R3000‐3P‐GPS  Device  7    CTS ...
  • Page 16: Reset Button

    Robustel GoRugged R3000‐3P‐GPS User Guide    2.4 Reset Button  Function  Operation  Reboot  Push the button for 5 seconds under working status.  Push the button for 60 seconds once you power on the  Restore to factory  router  until  all  the  three  LEDs  at  the  left  side  (RUN,  default setting  PPP, USR) blink at the same time for 5 times.  Reset Button        2.5 Ethernet ports  Each Ethernet port has  two LED indicators (please check the following  picture). The  yellow  one  is  Speed  indicator  and  the  green  one  is  Link  indicator.  There  are  three ...
  • Page 17: Mount The Router

    Robustel GoRugged R3000‐3P‐GPS User Guide    2.6 Mount the Router  Use 2 pcs of M3 screw to mount the router on the wall.        Or mount the router on a DIN rail with 3 M3 screws.                                        2.7 Install SIM Card and Micro SD Card        RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          16 / 129 ...
  • Page 18: Connect The External Antenna

    Robustel GoRugged R3000‐3P‐GPS User Guide     Inserting SIM Card or Micro SD Card  Make sure power supply is disconnected.  Use a screwdriver to unscrew the screw on the cover, and then remove the cover, you could find the SIM Card  slots and the Micro SD slot.  Insert the SIM card or Micro SD card, and you need press the card with your fingers until you hear “a cracking  sound”. Then use a screwdriver to screw the cover.     Removing SIM Card or Micro SD Card  Make sure router is power off.  Press the card until you hear “a cracking sound”, when the card will pop up to be pulled out.    Note:  Don’t forget screw the cover for again‐theft.  Don’t touch the metal surface of the SIM card in case information in the card is lost or destroyed.  Don’t bend or scratch your SIM card. Keep the card away from electricity and magnetism.  Make sure router is power off before inserting or removing your SIM card or Micro SD card.    2.8 Connect the External Antenna  Connect router with an external antenna connector. Make sure the antenna is basing on the correct frequency and is  screwed tightly.    SMA Male antenna connector for Cellular    SMA  Male  antenna  connector for GPS          RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          17 / 129 ...
  • Page 19: Ground The Router

    Robustel GoRugged R3000‐3P‐GPS User Guide    2.9 Ground the Router  Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground  connection from the ground screw to the grounding surface prior to connecting devices.    Screw    Note: This product is intended to be mounted to a well‐grounded mounting surface, such as a metal panel.        RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          18 / 129 ...
  • Page 20: Chapter 3. Configuration Settings Over Web Browser

    Robustel GoRugged R3000‐3P‐GPS User Guide    Chapter 3. Configuration settings over web browser  The router can be configured through your web browser. A web browser is included as a standard application in the  following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc. The product provides an  easy and user‐friendly interface for configuration.  There are various ways to connect the router, either through an external repeater/hub or connect directly to your PC.  However, make sure that your PC has an Ethernet interface properly installed prior to connecting the router.  You must configure your PC to obtain an IP address through a DHCP server or a fixed IP address that must be in the  same subnet as the router. The best and easiest way is to configure the PC to get an IP address automatically from  the router using DHCP. If you encounter any problems accessing the router web interface it is advisable to uninstall    your firewall program on your PC, as these tend to cause problems accessing the IP address of the router.  3.1 Configuring PC in Windows  1. Go to Start / Control Panel (in Classic View). In the Control Panel, double‐click Network Connections.  2. Double‐click Local Area Connection.      3. In the Local Area Connection Status window, click Properties.    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          19 / 129 ...
  • Page 21 Robustel GoRugged R3000‐3P‐GPS User Guide        4. Select Internet Protocol (TCP/IP) and click Properties.      5. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons.    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          20 / 129 ...
  • Page 22: Factory Default Settings

    Robustel GoRugged R3000‐3P‐GPS User Guide        6. Click OK to finish the configuration.    3.2 Factory Default Settings  Before configuring your router, you need to know the following default settings.      Item  Description  Username  admin  Password  admin  Eth0    192.168.0.1/255.255.255.0, LAN mode  Eth1  192.168.0.1/255.255.255.0, LAN mode  DHCP Server  Enabled.      RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          21 / 129 ...
  • Page 23: Control Panel

    Robustel GoRugged R3000‐3P‐GPS User Guide    3.3 Control Panel  This section allows users to save configuration, reboot router, logout and select language.          RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          22 / 129 ...
  • Page 24: Status -> System

    Robustel GoRugged R3000‐3P‐GPS User Guide    Control Panel  Item  Description  Button  Save  Click to save the current configuration into router’s flash.    After  save  the  current  configuration,  router  needs  to  be  rebooted  to  Reboot    make the modification taking effect.  Logout  Click to return to the login page.    Language  Select from Chinese, English, German, French and Spanish.  Refresh  Click to refresh the status.    Apply  Click to apply the modification on every configuration page.    Cancel  Click to cancel the modification on every configuration page.    Note: The steps of how to modify configuration are as bellow:  1. Modify in one page; ...
  • Page 25 Robustel GoRugged R3000‐3P‐GPS User Guide        Router Information  Item  Description  Device Model  Show the model name of this device  Serial Number  Show the serial number of this device  Device Name  Show the device name to distinguish different devices you have installed.  Firmware Version  Show the current firmware version  Hardware Version  Show the current hardware version  Kernel Version  Show the current kernel version  Radio Module Type  Show the current radio module type  Radio Firmware Version  Show the current radio firmware version  Uptime  Show how long the router have been working since power on  CPU Load  Show the current CPU load  RAM Total/Free  Show the total capacity /Free capacity of RAM  System Time  Show the current system time        Current WAN Link    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          24 / 129 ...
  • Page 26 Robustel GoRugged R3000‐3P‐GPS User Guide    Item  Description  Current WAN Link  Show the current WAN link: Cellular WAN or Ethernet WAN.  IP Address  Show the current WAN IP address  Gateway  Show the current gateway  NetMask  Show the current netmask  DNS Server  Show the current primary DNS server and Secondary server  Show the current ICMP detection server which you can set in “Configuration‐>Link  Keeping PING IP Address  Management”.  Show  the  ICMP  Detection  Interval  (s)  which  you  can  set  in  “Configuration‐>Link  Keeping PING Interval  Management”.      Cellular Information  Item  Description  Current SIM  Show the SIM card which the router work with currently: SIM1 or SIM2  Phone No.  Show the phone number of the current SIM. ...
  • Page 27: Status -> Network

    Robustel GoRugged R3000‐3P‐GPS User Guide    1. Not registered, ME is currently not searching for new operator!  2. Registered to home network.  3. Not registered, but ME is currently searching for a new operator.  4. Registration denied.  5. Registered, roaming.  6. Unknown.  Signal Level (RSSI)  Show the current signal level.  Show Mobile Country Code (MCC) +Mobile Network Code (MNC), e.g. 46001.  Network Operator  Also it will show the Location Area Code (LAC) and Cell ID.  Network Service Type  Show the current network service type, e.g. GPRS.  IMEI/ESN  Show the IMEI/ESN number of the radio module.  IMSI  Show the IMSI number of the current SIM.  USB Status  Show the current status of USB host.    3.5 Status ‐> Network  This section displays the router’s Network status, which include status of Cellular WAN, ETH0, ETH11, DHCP and  Device List.        RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          26 / 129 ...
  • Page 28: Status -> Route

    Robustel GoRugged R3000‐3P‐GPS User Guide      Note: ETH0 WAN information will not be shown if you select “Cellular” in “Configuration”‐>”Link  Management”‐>”WAN Link”.          3.6 Status ‐> Route  This section displays the router’s route table.    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          27 / 129 ...
  • Page 29: Status -> Vpn

    Robustel GoRugged R3000‐3P‐GPS User Guide        3.7 Status ‐> VPN  This section displays the router’s VPN status, which includes IPSec, L2TP, PPTP, OpenVPN and GRE.                  RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          28 / 129 ...
  • Page 30: Status -> Services

    Robustel GoRugged R3000‐3P‐GPS User Guide        3.8 Status ‐> Services  This section displays the router’s Services’ status, including VRRP, DynDNS, Serial and DI/DO.                  DI/DO  Item  Description  DI  Show status of DI.    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          29 / 129 ...
  • Page 31: Status -> Event/Log

    Robustel GoRugged R3000‐3P‐GPS User Guide    DO  Show status of DO.  You can click button to change DO status of both DO_1 and DO_2 via web after you  DO Control  have enable DO in Configuration‐> DI/DO‐> DO‐> DO Configuration ‐> Enable.    3.9 Status ‐> Event/Log  This section displays the router’s event/log information. You need to enable router to output the log and select the  log level first, then you can view the log information here. Also you can click Download System Diagnosing Data to  download diagnose data.      Event/Log  Item  Description  Download  Select the log messages you want to download.  Select the Log level in the drop‐down menu: DEBUG, INFO, NOTICE, WARNING, ERR,  Log Level  CRIT, ALERT, EMERG.  Download System  Click Download System Diagnosing Data to download diagnose file.    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          30 / 129 ...
  • Page 32: Configuration -> Link Management

    Robustel GoRugged R3000‐3P‐GPS User Guide    Diagnosing Data  Select from “5 Seconds”, “10 Seconds”, “15 Seconds”, “30 Seconds” and “1 Minute”.  Manual Refresh  User can select these intervals to refresh the log information.    3.10 Configuration ‐> Link Management  This section allows users to set the WAN link and the related parameters.      Link Management  Item  Description  Default  Selected from “Cellular”, “Eth0”.  Primary Interface  Cellular: Select to make cellular as the primary WAN link.  Cellular  Eth0: Select to make Eth0 as the primary WAN link.  Selected from “None”, “Eth0”.  None: Do not select backup interface.  Backup Interface    None  Cellular: Select Cellular as the backup WAN link.  Eth0: Select Eth0 as the backup WAN link.  ICMP  Detection  Primary  Router  will  ping  this  primary  address/domain  name  to  check  that  if  the ...
  • Page 33: Configuration -> Cellular Wan

    Robustel GoRugged R3000‐3P‐GPS User Guide    retries.    3.11 Configuration ‐> Cellular WAN  This section allows users to set the Cellular WAN and the related parameters.  Note:  This  section  will  not  be  displayed  if  you  select  “Eth0  Only”  in  “Configuration”‐>”Link  Management”‐>”WAN  Link”.      RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          32 / 129 ...
  • Page 34 Robustel GoRugged R3000‐3P‐GPS User Guide          RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          33 / 129 ...
  • Page 35 Robustel GoRugged R3000‐3P‐GPS User Guide    Basic @Cellular WAN  Cellular Settings  Item  Description  Default  Select  from  “Auto”,  “Custom”  or  the  ISP  name  you  preset  in  “Configuration”‐>”Cellular WAN”‐>”ISP Profile”.  Auto:  Router  will  get  the  ISP  information  from  SIM  card,  and  set  the  APN,  Network Provider Type  Auto  username  and  password  automatically.  This  option  only  works  when  the ...
  • Page 36 Robustel GoRugged R3000‐3P‐GPS User Guide    After successful connection, the Max Retries counter will be set to 0.  Configurable after “Connect On Demand” was selected.  This field specifies the idle time setting for GPRS/3G auto‐disconnection and  Inactivity Time  0  trying to revert back to preferred SIM card.  0 means timeless.  The content which output to the serial device which connect to router and  Serial Output Content  Null  inform it that router is ready to receive serial data.  Tick  this  check  box  to  allow  router  automatically  connects  to  cellular  Triggered by Serial Data  Enable  network from idle mode when there is data comes out from serial port.  Tick  this  check  box  to  allow  router  automatically  connects  to  cellular  Triggered by Tel  Disable ...
  • Page 37 Robustel GoRugged R3000‐3P‐GPS User Guide    Important Note: You need to fill in tab Configuration‐> Link Management‐>  ICMP  Detection  Primary  Server  and  ICMP  Detection  Secondary  Server,  and  then this strategy can be activated.      Total  Ping  (5~100)  @  Switch  To  Backup  SIM  Preset Max Retries time that Router ping the preset address/domain name.  10  Card  When  ICMP  Detection Fails  Average  Ping  Route  will  count  the  “Average  Ping”  timeout  interval  after  router  ping  the ...
  • Page 38 Robustel GoRugged R3000‐3P‐GPS User Guide        Advanced @Cellular WAN  Item  Description  Default  Set  the  SIM  card’s  phone  number,  and  it  will  be  showed  in  “Status”‐>”System”‐>”System”‐>”Cellular  WAN  Information”‐“SIM  Phone  Phone No.  Number”.  Null  In general, you don’t need to set this number because router will read it  from the SIM card automatically.    Authentication  Select from “Auto”, “PAP” and “CHAP” as the local ISP required.  Auto  Maximum Transmission Unit. It is the identifier of the maximum size of  MTU  1500  packet, which is possible to transfer in a given environment.  Maximum Receiving Unit. It is the identifier of the maximum size of  MRU  1500 ...
  • Page 39: Configuration -> Ethernet

    Robustel GoRugged R3000‐3P‐GPS User Guide    can be separated by a space.  nobsdcomp   ISP Profile  This section allow users to preset some ISP profiles which will be shown in the selection list of  “Configuration”‐>”Cellular WAN”‐>”Network Provider Type”.      ISP Profile @Cellular WAN  Item  Description  Default  Input  the  ISP’s  name  which  will  be  shown  in  the  selection  list  of  ISP  Null  “Configuration”‐>”Cellular WAN”‐>”Network Provider Type”.  APN,  Username,  All these parameters were provided by the ISP.  Null  Password, Dialup No.    3.12 Configuration ‐> Ethernet  This section allows users to set the Ethernet WAN and LAN parameters of Eth0.   ...
  • Page 40 Robustel GoRugged R3000‐3P‐GPS User Guide          Eth0@Ethernet  Item  Description  Default  Ethernet Interface Type  Eth0 can work under two different kinds of mode: LAN and WAN.  LAN  Enable  Bridge  @  LAN  Enable  to  make  Eth0  works  under  bridge  mode  with  Eth1.  Eth0  and  Enable  Interface  Eth1 will have the same IP address under this mode.  IP  Address,  Netmask,  Set  the  IP  address,  Netmask,  MTU  and  Media  Type  of  Eth0.  These ...
  • Page 41 Robustel GoRugged R3000‐3P‐GPS User Guide    Static  Lease  @  DHCP  Define to lease static IP Addresses, which conform to MAC Address of  Null  Server  the connected equipment.    This section allows users to set the Ethernet WAN and LAN parameters of Eth1.            Eth1@Ethernet  Item  Description  Default  IP  Address,  Netmask,  Set  the  IP  address,  Netmask,  MTU  and  Media  Type  of  Eth1.  These  MTU, Media Type @ LAN  Null  parameters will be un‐configurable if you enable Bridge.  Interface ...
  • Page 42 Robustel GoRugged R3000‐3P‐GPS User Guide    @ DHCP Server  IP addresses which will lease to DHCP clients.  192.168.0.10 0  Define the Netmask which the DHCP clients will obtain from DHCP  255.255.255. Netmask @ DHCP Server  server.  0  Lease  Time  @  DHCP  Define the time which the client can use the IP address which obtained  60  Server(min)  from DHCP server.  Primary/Secondary    Define the primary/secondary DNS Server which the DHCP clients will  192.168.0.1/  DNS  Server  @  DHCP  obtain from DHCP server.  0.0.0.0  Server  Windows Name Server @  Define the WINS Server which the DHCP clients will obtain from DHCP  192.168.0.1  DHCP Server    server.  Static  Lease  @  DHCP ...
  • Page 43: Configuration -> Serial

    Robustel GoRugged R3000‐3P‐GPS User Guide    Note:  Please  disable  DHCP  Server  and  DHCP  Client  first  to  make  sure  DHCP relay can be enabled.    3.13 Configuration ‐> Serial  This section allows users to set the serial (RS232/RS485) parameters.       When Select Protocol “Transparent”:       When Select Protocol “Modbus”:    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          42 / 129 ...
  • Page 44 Robustel GoRugged R3000‐3P‐GPS User Guide         When Select Protocol “Transparent Over Rlink”:       When Select Protocol “Modbus Over Rlink”:       When Select Protocol “AT Over COM”:       When Select Protocol “GPS Report”:      RS232 @ Serial  Item  Description  Default  Select from “300”, “600”, “1200”, “2400”, “4800”, “9600”, “19200”, “38400”,  Baud‐rate  115200  “57600” , “115200”and “230400”.  Data bit  Select from “7” and “8”.  8  Parity  Select from “None”, “Odd” and “Even”.  None  Stop bit  Select from “1” and “2”.  1  Flow control  Select from “None”, “Software” and “Hardware”.  None ...
  • Page 45 Robustel GoRugged R3000‐3P‐GPS User Guide    “Modbus Over Rlink” “AT Over COM” and “GPS Report”.  None: Router will do nothing in RS232 serial port.  Transparent: Router will transmit the serial data transparently without any  protocols.  Modbus: Router will translate the Modbus RTU data to Modbus TCP data  and vice versa.  Transparent Over Rlink: Router will send all data from RS232 serial port to  Robustlink, then Robustlink will forward the data to another destination site.  Modbus Over Rlink: Router will translate all data from RS232 serial port to  Modbus TCP protocol data, and then send to Robustlink, after that  Robustlink will forward the data to another destination site.  AT Over COM: select to operate router via RS232 COM port. For example,  enter AT commands to router via RS232 COM port.  GPS Report: select to enable router to output GPS status data through RS232  port.  Select from “TCP Server”, “TCP Client” and “UDP”.  TCP Client: Router works as TCP client, initiate TCP connection to TCP server.  Server address supports both IP and domain name.  TCP  Mode @Transparent  TCP  Server:  Router  works  as  TCP  server,  listening  for  connection  request  from  Client  TCP client.  UDP: Router works as UDP client.  Local  Port  Enter the Local port for TCP or UDP. ...
  • Page 46 Robustel GoRugged R3000‐3P‐GPS User Guide    sent as soon it reaches the specified length.    Note: Data will also be sent as specified by the interval timeout or delimiter  settings even when data is not reaching the preset packet length.    When Delimiter 1 is enabled, the serial port will queue the data in the buffer and  send the data to the Cellular WAN/Ethernet WAN when a specific character,  Enable Delimiter1/2  entered in hex format, is received. A second delimiter character may be enabled  Disable  and specified in the Delimiter 2 field, so that both characters act as the delimiter  to control when data should be sent.    Delimiter1/2  (Hex)  Enter the delimiter in Hex.  0  @Transparent  The Delimiter process field determines how the data is handled when a delimiter  is received.    Delimiter  Process  None: Data in the buffer will be transmitted when the delimiter is received; the  Strip  @Transparent  data also includes the delimiter characters.    Strip: Data in the buffer is first stripped of the delimiter before being transmitted.  This item will show up When you enable any VPN tunnel of R3000, it means serial  data can be matched to this local IP address and be transmitted or received via  Local IP @ Modbus  0  VPN tunnel.  Note: when you do not enable any VPN tunnel, this item will not show up.  Local Port @ Modbus  Enter the Local port for Modbus.  0 ...
  • Page 47 Robustel GoRugged R3000‐3P‐GPS User Guide    Slave  ID @ Modbus Slave  Enter the ID number of TCP server.  Null  Interval  Timeout  @  The serial port will queue the data in the buffer and send the data to the Cellular  Transparent  Over  10  WAN/Ethernet WAN when it reaches the Interval Timeout in the field.  Rlink  Select From “Modbus RTU slave”, “Modbus ASCⅡ  slave”.  Attached  serial  device  Modbus RTU slave: router connects to slave device which works under Modbus  type  @  Modbus  Over  RTU protocol.  Null  Rlink  Modbus ASCⅡ  slave: router connects to slave device which works under  Modbus ASCⅡprotocol.  Enable  to  display  all  virtual  com  of  the  module  inside  the  router.  Generally, ...
  • Page 48 Robustel GoRugged R3000‐3P‐GPS User Guide     When Select Protocol “Modbus”:       When Select Protocol “Transparent Over Rlink”:       When Select Protocol “Modbus Over Rlink”:      RS485 @ Serial  Item  Description  Default  Select from “300”, “600”, “1200”, “2400”, “4800”, “9600”, “19200”, “38400”,  Baud‐rate  115200  “57600” , “115200”and “230400”.  Data bit  Select from “7” and “8”.  8  Parity  Select from “None”, “Odd” and “Even”.  None  Stop bit  Select from “1” and “2”.  1  Select from “None”, “Transparent” and “Modbus”.  Transparent: Router will transmit the serial data transparently without any  Protocol  Transparent  protocols.  Modbus: Router will transmit the serial data with Modbus protocol.  Mode @Transparent  Select from “TCP Server”, “TCP Client” and “UDP”.  TCP Client ...
  • Page 49 Robustel GoRugged R3000‐3P‐GPS User Guide    Note: when you do not enable any VPN tunnel, this item will not show up.  The serial port will queue the data in the buffer and send the data to the  Cellular WAN/Ethernet WAN when it reaches the Interval Timeout in the  Interval  Timeout  field.    10  @Transparent  Note: Data will also be sent as specified by the packet length or delimiter  settings even when data is not reaching the interval timeout in the field.  The Packet length setting refers to the maximum amount of data that is  allowed to accumulate in the serial port buffer before sending. 0 for packet  length, no maximum amount is specified and data in the buffer will be sent  Packet  Length  as specified by the interval timeout or delimiter settings or when the buffer  1360  @Transparent  is full. When a packet length between 1 and 1024 bytes is specified, data in  the buffer will be sent as soon it reaches the specified length.    Note: Data will also be sent as specified by the interval timeout or delimiter  settings even when data is not reaching the preset packet length.  When Delimiter 1 is enabled, the serial port will queue the data in the buffer  and send the data to the Cellular WAN/Ethernet WAN when a specific  Enable Delimiter1  character, entered in hex format, is received. A second delimiter character  Disable  may be enabled and specified in the Delimiter 2 field, so that both  characters act as the delimiter to control when data should be sent.    Delimiter1  (Hex)  @  Enter the delimiter in Hex.  0  Transparent ...
  • Page 50: Configuration -> Di/Do

    Robustel GoRugged R3000‐3P‐GPS User Guide    Modbus  section only displayed when you select “Modbus RTU master” or “Modbus  ASCII master” in “Attached serial device type”.  Slave  Address  @  This connection is usually used to connect to the Modbus slave devices  Null  Modbus Slave  which as TCP server. Enter IP address of the TCP server.  Slave  Port  @  Modbus  Enter the port number of TCP server.  Null  Slave  ID @ Modbus Slave  Enter the ID number of TCP server.  Null  Interval  Timeout  @  Serial port will queue the data in buffer and then send it to the Cellular  Transparent  Over  10  WAN/Ethernet WAN when it reaches the Interval Timeout in this field.  Rlink  Select From “Modbus RTU slave”, “Modbus ASCⅡ  slave”.  Attached  serial  device  Modbus RTU slave: router connects to slave device which works under  Modbus  type  @  Modbus  Over ...
  • Page 51 Robustel GoRugged R3000‐3P‐GPS User Guide    Enable DI  Click to Enable DI.  Disable  Select from “OFF”, “ON”, “EVENT_COUNTER”.  OFF:  Connect  to  GND  (logic  0).  When  pin  DI  connects  to  GND,  R3000  will  detect there is a DI alarm input.  Mode  OFF  ON: Open from GND (logic 1). When pin DI does not connect to GND, R3000  will detect there is a DI alarm input.  EVENT_COUNTER: under event counter mode.  Software filtering is used to control switch bounces.  Filtering  1  Input from 0 to 10000ms.  Available when DI under Event Counter mode.  Input from 0 to 100. (0=will not trigger alarm)  Count Trigger  0  It will trigger alarm when counter reaches this figure. After triggering alarm, DI  will keep counting but not trigger alarm again.  Available when DI under Event Counter mode.  Select from “Hi to Lo”, “Lo to Hi”.  In  Event  Counter  mode,  the  channel  accepts  limit  or  proximity  switches  and ...
  • Page 52 Robustel GoRugged R3000‐3P‐GPS User Guide        DO @ DI/DO  Item  Description  Default  Enable  Click to enable DO.  Disable  Digital Output initiates according to different alarm source.  Selected  from  “DI  Alarm”,  “SMS  Control”,  “Call  Control”,  selections  can  be  one  or  more.  DI Alarm: Digital Output triggers the related action when there is alarm from Digital  Alarm Source  Input.  Null  SMS Control:    Digital Output triggers the related action when receiving SMS from  the number in the phone book.  Call  Control:  Digital  Output  triggers  the  related  action  when  receiving  phone  call ...
  • Page 53: Configuration -> Usb

    Robustel GoRugged R3000‐3P‐GPS User Guide    Available when enable Pulse in Alarm On Action/Alarm Off Action.  Delay  The first pulse will be generated after a “Delay”.  0  Input from 0 to 30000ms. (0=generate pulse without delay)  Available when enable Pulse in Alarm On Action/Alarm Off Action.  In Pulse Output mode, the selected digital output channel will generate a square  Low  wave as specified in the pulse mode parameters. The low level widths are specified  10  here.  Input from 1 to 30000 ms.  Available when enable Pulse in Alarm On Action/Alarm Off Action.  In Pulse Output mode, the selected digital output channel will generate a square  High  wave  as  specified  in  the  pulse  mode  parameters.  The  high  level  widths  are  10  specified here.  Input from 1 to 30000 ms.  Available when enable Pulse in Alarm On Action/Alarm Off Action.  Output  0  The number of pulses, input from 0 to 30000. (0 for continuous pulse output)  Available when enable SMS Control in Alarm Source.  SMS Content On  Null ...
  • Page 54: Configuration -> Gps

    Robustel GoRugged R3000‐3P‐GPS User Guide    Enable  automatic  update  Click  Enable  to  automatically  update  the  configuration  file  of  R3000  when  Disable  of configuration  insert the USB storage devices which has R3000’s configuration file.  Enable  automatic  update  Click  Enable  to automatically update the firmware  of R3000 when insert the  Disable  of firmware  USB storage devices which has R3000’s firmware.    3.16 Configuration ‐> GPS  This section allows users to set the GPS setting parameters.        GPS Setting @ GPS  Item  Description  Default ...
  • Page 55 Robustel GoRugged R3000‐3P‐GPS User Guide    Made Good and Ground Speed(VTG)+ Recommended Minimum Specific  GPS/TRANSIT Data(RMC).  NMEA RMC: Recommended Minimum Specific GPS/TRANSIT Data(RMC). RS232 Report Interval  Set the interval to report GPS status to RS232 serial port of router.  1  Index  @  GPS  Server  Show the index of GPS Server.  Null  Setting  Server  Name  @  GPS  Show the type of GPS Server.  Null  Server Setting  Add  Click “Add” to add GPS Server.    Select  from  “NMEA  GGA+VTG”,  “NMEA  GGA+VTG+RMC”  and  “NMEA  RMC”.  NMEA GGA+VTG: Global Positioning System Fix Data(GGA)+ Track Made  NMEA  Good and Ground Speed(VTG).  Report Type  NMEA GGA+VTG+RMC: Global Positioning System Fix Data(GGA)+ Track  GGA+VTG ...
  • Page 56 Robustel GoRugged R3000‐3P‐GPS User Guide        GPS Status @ GPS  Item  Description  Default  Show the GPS Status.    GPS status includes: Not Installed, Disabled, No Fix/Invalid, Standalone GPS  Fix, Differential GPS Fix.  Not Installed: No GPS module inside.  Disabled: GPS function is not enabled (not click “Enable GPS” in item “GPS  Setting” yet).  Not  GPS Status  No  Fix/Invalid:  GPS  function  is  enabled,  but  do  not  get  GPS  signal  (User  Installed  should put router outdoor to get stronger GPS signal).  Standalone GPS Fix: Standalone GPS techniques is a mature, universal GPS  positioning mode, only get position from satellite.  Differential  GPS  Fix:  Differential  GPS  techniques  are  used  to  enhance  the ...
  • Page 57: Configuration -> Nat/Dmz

    Robustel GoRugged R3000‐3P‐GPS User Guide      3.17 Configuration ‐> NAT/DMZ  This section allows users to set the NAT/DMZ parameters.      Port Forwarding @ NAT/DMZ  Defaul Item  Description  t  Manually defining a rule in the router to send all data received on some range  Port Forwarding  Null  of ports on the internet side to a port and IP address on the LAN side.  Remote IP  Set the remote IP address.  Null  Arrives At Port  The port of the internet side which you want to forward to LAN side.  Null  Is  Forwarded  to  IP  The device’s IP on the LAN side which you want to forward the data to.  Null  Address  Is Forwarded to Port  The device’s port on the LAN side which you want to forward the data to.  Null  Protocol  Select from “TCP”, “UDP” or “TCP&UDP” which depends on the application.  TCP    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          56 / 129 ...
  • Page 58: Configuration -> Firewall

    Robustel GoRugged R3000‐3P‐GPS User Guide        DMZ @ NAT/DMZ  Item  Description  Default  DMZ host is a host on the internal network that has all ports exposed, except  DMZ  Null  those ports otherwise forwarded.  Enable DMZ  Select to enable the DMZ function.    Enable  DMZ Host  Enter the IP address of the DMZ host which on the internal network.  0.0.0.0  Source Address  Set the address which can talk to the DMZ host. Null means for any addresses.  0.0.0.0    3.18 Configuration ‐> Firewall  This section allows users to set the firewall parameters.    If  you  disable  one  of  tabs:  “Remote  Access  Using  HTTP”,  “Remote  Access  Using  TELNET”,  “Remote  Access  Using ...
  • Page 59 Robustel GoRugged R3000‐3P‐GPS User Guide        Basic @ Firewall  Item  Description  Default  Remote  Access  Using  Enable to allow users to access the router remotely on the internet side via HTTP.  Enable  HTTP  Remote  Access  Using  Enable  to  allow  users  to  access  the  router  remotely  on  the  internet  side  via  Enable  TELNET  Telnet.  Remote  Access  Using  Enable  to  allow  users  to  access  the  router  remotely  on  the  internet  side  via ...
  • Page 60: Configuration -> Qos

    Robustel GoRugged R3000‐3P‐GPS User Guide    filter list.  Add Filter List  Click “Add” to add a filter list.  Null  Select from “Accept” and “Drop”.  Accept: Router will reject all the connecting requests except the hosts which fit  Action  this filter rule.  Accept  Drop:  Router  will  only  accept  the  connecting  requests  from  the  hosts  which  fit  this filter rule.  Defines if access is allowed from one or a range of IP addresses which are defined  Source IP  Null  by Source IP Address, or every IP addresses.  Defines  if  access  is  allowed  from  one  or  a  range  of  port  which  is  defined  by ...
  • Page 61 Robustel GoRugged R3000‐3P‐GPS User Guide          RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          60 / 129 ...
  • Page 62 Robustel GoRugged R3000‐3P‐GPS User Guide        QoS  Item  Description  Default  Enable QoS  Click to enable “QoS” function.  Disable  Downlink  Speed  Prescribe downlink speed of router.  0  (kbps)  Note: Default setting“0” means that there is no limitation of downlink speed.    Prescribe uplink speed of router.  uplink Speed (kbps)  0  Note: Default setting“0” means that there is no limitation of uplink speed.  User  can  choose  to  enable  TCP  flags:  “SYN”,  “ACK”,  “FIN”,  “RST”,  which  means  data with above TCP Flags will get the highest priority to occupy bandwidth. After  Optimize for TCP Flags  Disable  enabled,  router  will  enhance  respond  timeout  of  TCP  control,  in  case  that  data ...
  • Page 63 Robustel GoRugged R3000‐3P‐GPS User Guide    as 15; “Normal” is defaulted as 10; “Bulk” is 1.  Select  from  “Exempt”,  “Premium”,  “Express”,  “Normal”  and  “Bulk”.  Users  (Services) with no other pre‐priority set will use this default priority.  Exempt:  this  is  the  highest  priority  which  guarantees  that  the  minimum  global  rate of router is 50% of “Downlink Speed”, and the maximum rate can reach to  100% of “Downlink Speed”.  Premium: guarantees that the minimum global rate of router is 25% of “Downlink  Default Priority  Speed”, and the maximum rate can reach to 100% of “Downlink Speed”.  Normal  Express: guarantees that the minimum global rate of router is 15% of “Downlink  Speed”, and the maximum rate can reach to 100% of “Downlink Speed”.  Normal: guarantees that the minimum global rate of router is 10% of “Downlink  Speed”, and the maximum rate can reach to 100% of “Downlink Speed”.  Bulk:  guarantees  that  the  minimum  global  rate  of  router  is  1%  of  “Downlink ...
  • Page 64: Configuration -> Ip Routing

    Robustel GoRugged R3000‐3P‐GPS User Guide    Select from “Exempt”, “Premium”, “Express”, “Normal” and “Bulk”.  Select the priority of the user (for example, PC) who you want to set it with QoS  Control.  Exempt:  this  is  the  highest  priority  which  guarantees  that  the  minimum  global  rate of router is 50% of “Downlink Speed”, and the maximum rate can reach to  100% of “Downlink Speed”.  Priority  @  QoS  IP  Premium: guarantees that the minimum global rate of router is 25% of “Downlink  Exempt  Control List  Speed”, and the maximum rate can reach to 100% of “Downlink Speed”.  Express: guarantees that the minimum global rate of router is 15% of “Downlink  Speed”, and the maximum rate can reach to 100% of “Downlink Speed”.  Normal: guarantees that the minimum global rate of router is 10% of “Downlink  Speed”, and the maximum rate can reach to 100% of “Downlink Speed”.  Bulk:  guarantees  that  the  minimum  global  rate  of  router  is  1%  of  “Downlink ...
  • Page 65 Robustel GoRugged R3000‐3P‐GPS User Guide        Static Route @ IP Routing  Item  Description  Default  Static Route Table  Allow users to add, delete or modify static route rules manually.  Null  Interface    Select from “WAN”, “LAN_0” or “LAN_1”.    WAN  Destination  Enter the destination host’s IP address or destination network.  Null  Netmask  Enter the Netmask of the destination or destination network.  Null  Enter the gateway’s IP address of this static route rule. Router will forward all the  Gateway  Null  data which fit for the destination and Netmask to this gateway.        RIP @ IP Routing  Item  Description  Default  RIP  (Routing  Information  Protocol)  is  a  distance‐vector  routing  protocol,  which ...
  • Page 66 Robustel GoRugged R3000‐3P‐GPS User Guide    Setting  RIP Protocol Version  Select from “RIPv1” and “RIPv2”.  RIPv1  If you input this neighbor IP, router will only send RIP request massage to this IP  Neighbor IP  0.0.0.0  instead of broadcast. This item only needs to be set in some unicast network.  Update times  Defines the interval between routing updates.  30  Defines the route aging time. If no update for a route is received after the aging  Timeout  180  time elapses, the metric of the route is set to 16 in the routing table.  Defines the interval from when the metric of a route becomes 16 to when it is  deleted from the routing table. During the Garbage‐Collect timer length, RIP  Garbage  advertises the route with the routing metric set to 16. If no update is announced  120  for that route after the Garbage‐Collect timer expires, the route will be deleted  from the routing table.  Enable Advance  Tick to enable RIP protocol Advance Setting.  Disable  Default Metric  This value is used for redistributed routes.  1  The first criterion that a router uses to determine which routing protocol to use if  Distance  120  two protocols provide route information for the same destination.  Select from “None”, “Eth0”, “Eth1” and “Default”.  This command sets the specified interface to passive mode. On passive mode  interface, all receiving packets are processed as normal and Rip info does not  Passive  None  send either multicast or unicast RIP packets except to RIP neighbors specified ...
  • Page 67: Configuration -> Dyndns

    Robustel GoRugged R3000‐3P‐GPS User Guide    Enable OSPFv2  Tick to enable OSPF function.  Disable    3.21 Configuration ‐> DynDNS  This section allows users to set the DynDNS parameters.      DynDNS  Item  Description  Default  The Dynamic DNS function allows you to alias a dynamic IP address to a  static domain name, allowing users whose ISP does not assign them a  static IP address to use a domain name. This is especially useful for  hosting servers via your connection, so that anyone wishing to connect  DynDNS  Null  to you may use your domain name, rather than having to use your  dynamic IP address, which changes from time to time. This dynamic IP  address is the WAN IP address of the router, which is assigned to you  by your ISP.  Enable DynDNS  Tick to enable DynDNS function.  Disable  Select the DDNS service from “DynDNS–Dynamic”, “QDNS (3322)”,  Service Type  “NOIP” which you have established an account with. “Custom” could  DynDNS–Dynamic be used for linking custom DDNS server.    hoastmen  Enter the Host name the DDNS server provided.  Null  Username  Enter the user name the DDNS server provided.  Null ...
  • Page 68: Configuration -> Ipsec

    Robustel GoRugged R3000‐3P‐GPS User Guide    3.22 Configuration ‐> IPSec  This section allows users to set the IPSec parameters.    IPSec Basic @ IPSec  Item  Description  Default  Tick to enable NAT Traversal for IPSec. This item must be enabled when router  Enable NAT Traversal  Enable  under NAT environment.  The interval that router sends keepalive packets to NAT box so that to avoid it to  Keepalive Interval  30  remove the NAT mapping.        RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          67 / 129 ...
  • Page 69 Robustel GoRugged R3000‐3P‐GPS User Guide            IPSec Tunnel @ IPSec  Item  Description  Default  Add  Click Add to add new IPSec Tunnel  Null  Enable  Enable IPSec Tunnel, the max tunnel account is 3  Null  IPSec Gateway  Enter the address of remote side IPSec VPN server.  Null  Address  Select from “Tunnel” and “Transport”.  Tunnel: Commonly used between gateways, or at an end‐station to a  gateway, the gateway acting as a proxy for the hosts behind it.  IPSec Mode  Transport: Used between end‐stations or between an end‐station and a  Tunnel  gateway, if the gateway is being treated as a host—for example, an  encrypted Telnet session from a workstation to a router, in which the  router is the actual destination.  IPSec Protocol  Select the security protocols from “ESP” and “AH”.  ESP    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          68 / 129 ...
  • Page 70 Robustel GoRugged R3000‐3P‐GPS User Guide    ESP: Uses the ESP protocol.  AH: Uses the AH protocol.  Local Subnet  Enter IPSec Local Protected subnet’s address.  0.0.0.0  Local Subnet Mask  Enter IPSec Local Protected subnet’s mask.  0.0.0.0  Select from “IP Address”, “FQDN” and “User FQDN” for IKE negotiation.  “Default” stands for “IP Address”.  IP Address: Uses an IP address as the ID in IKE negotiation.  FQDN: Uses an FQDN type as the ID in IKE negotiation. If this option is  Local ID Type  selected, type a name without any at sign (@) for the local security  Default  gateway, e.g., test.robustel.com.  User FQDN: Uses a user FQDN type as the ID in IKE negotiation. If this  option is selected, type a name string with an sign “@” for the local  security gateway, e.g., test@robustel.com.  Remote Subnet  Enter IPSec Remote Protected subnet’s address.  0.0.0.0  Remote Subnet Mask  Enter IPSec Remote Protected subnet’s mask.  0.0.0.0  Select from “IP Address”, “FQDN” and “User FQDN” for IKE negotiation.  IP Address: Uses an IP address as the ID in IKE negotiation.  FQDN: Uses an FQDN type as the ID in IKE negotiation. If this option is  selected, type a name without any at sign (@) for the local security  Remote ID Type  Default  gateway, e.g., test.robustel.com.  User FQDN: Uses a user FQDN type as the ID in IKE negotiation. If this  option is selected, type a name string with a sign “@” for the local  security gateway, e.g., test@robustel.com.  Select from “Main” and “aggressive” for the IKE negotiation mode in  phase 1. If the IP address of one end of an IPSec tunnel is obtained  Negotiation Mode ...
  • Page 71 Robustel GoRugged R3000‐3P‐GPS User Guide    Select from “PSK”, “CA”, “XAUTH Init PSK” and “XAUTH Init CA” to be  used in IKE negotiation.  Authentication  PSK: Pre‐shared Key.  PSK  CA: Certification Authority.  XAUTH: Extended Authentication to AAA server.  Secrets  Enter the Pre‐shared Key.  Null  Set the lifetime in IKE negotiation.  Life Time @ IKE  Before an SA expires, IKE negotiates a new SA. As soon as the new SA is  86400  Parameter  set up, it takes effect immediately and the old one will be cleared  automatically when it expires.  Select from “DES_MD5_96”, “DES_SHA1_96”, “3DES_MD5_96”, “3DES_  SHA1_96”, “AES128_MD5_96”, “AES128_ SHA1_96”,  “AES192_MD5_96”, “AES192_ SHA1_96”, “AES256_MD5_96” and  “AES256_ SHA1_96” when you select “ESP” in “Protocol”;  SA Algorithm  Select from “AH_MD5_96” and “AH_ SHA1_96” when you select “AH”  3DES_MD5_96  in “Protocol”;  Note: Higher security means more complex implementation and lower  speed. DES is enough to meet general requirements. Use 3DES when  high confidentiality and security are required.  Select from “PFS_NULL”, “MODP768_1”, “MODP1024_2” and  “MODP1536_5”.  PFS_NULL: Disable PFS Group  PFS Group  PFS_NULL  MODP768_1: Uses the 768‐bit Diffie‐Hellman group.  MODP1024_2: Uses the 1024‐bit Diffie‐Hellman group.  MODP1536_5: Uses the 1536‐bit Diffie‐Hellman group.  Set the IPSec SA lifetime.  Life Time @ SA ...
  • Page 72 Robustel GoRugged R3000‐3P‐GPS User Guide    Enter the IP address or domain name or remote server. Router will ping  ICMP  Detection  this  address/domain  name  to  check  that  if  the  current  connectivity  is  Null  Server  active.  ICMP  Detection  Local  Set the local IP address.  Null  IP  ICMP  Detection  Set the ping interval time.  30  Interval  ICMP  Detection  Set the ping timeout.  5  Timeout  ICMP  Detection  If Router ping the preset  address/domain name time out  continuously ...
  • Page 73: Configuration -> Open Vpn

    Robustel GoRugged R3000‐3P‐GPS User Guide    3.23 Configuration ‐> Open VPN  This section allows users to set the Open VPN parameters.          Client @ Open VPN  Item  Description  Default  Enable  Enable OpenVPN Client, the max tunnel account is 3  Null  Protocol  Select from “UDP” and “TCP Client” which depends on the application.  UDP  Remote IP Address  Enter the remote IP address or domain name of remote side OpenVPN server.  Null  Port  Enter the listening port of remote side OpenVPN server.  1194    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          72 / 129 ...
  • Page 74 Robustel GoRugged R3000‐3P‐GPS User Guide    Select from “tun” and “tap” which are two different kinds of device interface for  OpenVPN.  Interface  tun  The difference between tun and tap device is this: a tun device is a virtual IP  point‐to‐point device and a tap device is a virtual Ethernet device.  Select from four different kinds of authentication ways: “Pre‐shared”,  Authentication  None  “Username/Password”, “X.509 cert” and “X.509 cert+user”.  Local IP  Define the local IP address of OpenVPN tunnel.  10.8.0.2  Remote IP  Define the remote IP address of OpenVPN tunnel.  10.8.0.1  Tick to enable SNAT for OpenVPN. The source IP address of host Behind R3000  Enable NAT  Disable  will be disguised before accessing the remote OpenVPN server.  Ping Interval  Set ping interval to check if the tunnel is active.  20  Ping ‐Restart  Restart to establish the OpenVPN tunnel if ping always timeout during this time.  120  Compression  Select “LZO” to use the LZO compression library to compress the data stream.  LZO  Select from “BF‐CBC”, “DES‐CBC”, “DES‐EDE3‐CBC”, “AES128‐CBC”,  “AES192‐CBC” and “AES256‐CBC”.  BF‐CBC: Uses the BF algorithm in CBC mode and 128‐bit key.  DES‐CBC: Uses the DES algorithm in CBC mode and 64‐bit key.  Encryption  BF‐CBC  DES‐EDE3‐CBC: Uses the 3DES algorithm in CBC mode and 192‐bit key.  AES128‐CBC: Uses the AES algorithm in CBC mode and 128‐bit key.  AES192‐CBC: Uses the AES algorithm in CBC mode and 192‐bit key. ...
  • Page 75 Robustel GoRugged R3000‐3P‐GPS User Guide          Server @ Open VPN  Item  Description  Default  Enable  OpenVPN  Tick to enable OpenVPN server tunnel.  Disable  Server  Tunnel_OpenVPN_ Tunnel name  Name the OpenVPN server tunnel.  1  You can enter the IP address of cellular WAN, Ethernet WAN or  Listen IP  Ethernet LAN. Null or 0.0.0.0 stands for using the active WAN link  0.0.0.0  currently‐cellular WAN or Ethernet WAN.  Select from “UDP” and “TCP Client” which depends on the  Protocol  UDP  application.  Port  Set the local listening port  1194    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          74 / 129 ...
  • Page 76 Robustel GoRugged R3000‐3P‐GPS User Guide    Select from “tun” and “tap” which are two different kinds of device  interface for OpenVPN.  Interface  The difference between a tun and tap device is this: a tun device is a  tun  virtual IP point‐to‐point device and a tap device is a virtual Ethernet  device.  Select from four different kinds of authentication ways: “Pre‐shared”,  Authentication  None  “Username/Password”, “X.509 cert” and “X.509 cert+user”.  Local IP  Define the local IP address of OpenVPN tunnel.  10.8.0.1  Remote IP  Define the remote IP address of OpenVPN tunnel.  10.8.0.2  Tick to enable SNAT for OpenVPN. The source IP address of host  Enable NAT  Behind R3000 will be disguised before accessing the remote  Disable  OpenVPN client.  Ping Interval  Set ping interval to check if the tunnel is active.  20  Restart to establish the OpenVPN tunnel if ping always timeout  Ping ‐Restart  120  during this time.  Select from “None”and”LZO”, Select “LZO” to use the LZO  Compression  LZO  compression library to compress the data stream.  Select from “BF‐CBC”, “DES‐CBC”, “DES‐EDE3‐CBC”, “AES128‐CBC”,  “AES192‐CBC” and “AES256‐CBC”.  BF‐CBC: Uses the BF algorithm in CBC mode and 128‐bit key.  DES‐CBC: Uses the DES algorithm in CBC mode and 64‐bit key.  Encryption ...
  • Page 77 Robustel GoRugged R3000‐3P‐GPS User Guide    Advanced  By default, clients will only see the server. To force clients to only see  the server, you will also need to appropriately firewall the server's  TUN/TAP interface.  Enable  Dup  Client  @  While establish OpenVPN with keys, must open this option,  Disable  VPN Server Advanced  otherwise only allows one VPN connection with the same certificate.  Maintain a record of client <‐> virtual IP address associations in this  Enable  IP  Persist  @  file. If OpenVPN goes down or is restarted, reconnecting clients can  Enable  VPN Server Advanced  be assigned the same virtual IP address from the pool that was  previously assigned.  Enable IP pool @ VPN  Define the range of virtual IP address.  Disable  Server Advanced  IP Pool Start  Define start virtual IP address  10.8.0.5  IP Pool End  Define end virtual IP address  10.8.0.254  Click “Add” to add a OpenVPN client info which include “Common  Name”, “Password”, “Client IP”, “Local Static Route” and “Remote  Client Manage  Null  Static Route”. This field only can be configured when you select  “Username/Password” in “Authentication”. ...
  • Page 78: Configuration -> Gre

    Robustel GoRugged R3000‐3P‐GPS User Guide    Click “Browse” to select the correct DH A file from your PC, and then click  DH  “Import” to import it to the router.  Null  Click “Export” you can export the DH file from router to your PC.  Click “Browse” to select the correct TA file from your PC, and then click “Import”  TA  to import it to the router.  Null  Click “Export” you can export the TA file from router to your PC.  Click “Browse” to select the correct CRL file from your PC, and then click “Import”  CRL  to import it to the router.  Null  Click “Export” you can export the CRL file from router to your PC.  Click “Browse” to select the correct PKCS12file from your PC, and then click  PKCS12  “Import” to import it to the router.  Null  Click “Export” you can export the PKCS12file from router to your PC.  Click “Browse” to select the correct Pre‐Share Static Key file from your PC, and  Pre‐Share  then click “Import” to import it to the router.  Null  Click “Export” you can export the Pre‐Share Static Key file from router to your PC.    3.24 Configuration ‐> GRE  This section allows users to set the GRE parameters.        GRE  Item  Description  Default  Add  Click “Add” to add a GRE tunnel. ...
  • Page 79: Configuration -> L2Tp

    Robustel GoRugged R3000‐3P‐GPS User Guide    Remote virtual IP  Set remote IP Address of the virtual GRE tunnel.  Null  Remote  Subnet  @  Add a static route to the remote side’s subnet so that the remote network is  Null  Remote Subnet List  known to the local network. The max count is 10.  Remote  Subnet  Mask  Set remote subnet net mask. The max count is 10.  Null  @ Remote Subnet List  All  traffic  via  this  After click to enable this feature, all data traffic will be sent via GRE tunnel.  Disable  interface  Tick to enable SNAT for GRE. The source IP address of host Behind R3000 will be  Enable NAT  Disable  disguised before accessing the remote GRE server.  Secrets  Set Tunnel Key of GRE.  Null  3.25 Configuration ‐> L2TP  This section allows users to set the L2TP parameters.        RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          78 / 129 ...
  • Page 80 Robustel GoRugged R3000‐3P‐GPS User Guide        L2TP Client @ L2TP  Item  Description  Default  Add  Click “Add” to add a L2TP client. You can add at most 3 L2TP clients.  Null  Remote IP Address  Enter your L2TP server’s public IP or domain name.  Null  Username  Enter the username which was provided by your L2TP server.  Null  Password  Enter the password which was provided by your L2TP server.  Null  Select from “Auto”, “PAP”, “CHAP”, “MS‐CHAP v1” and “MS‐CHAP v2”.  You need to select the corresponding authentication method based on the  Authentication  Disable  server’s authentication method. When you select “Auto”, router will auto  select the correct method based on server.  Remote Subnet  Enter L2TP remote Protected subnet’s address.  Null  Remote Subnet Mask  Enter L2TPremote Protected subnet’s mask.  Null  Click to enable NAT feature of L2TP. The source IP address of host Behind  Enable NAT  Disable  R3000 will be disguised before accessing the remote L2TP server.  All  traffic  via  this ...
  • Page 81 Robustel GoRugged R3000‐3P‐GPS User Guide    Compression  Protocol  Field  Used for PPP initialization. In general, you need to enable it as default.  Enable  Compression  One of the L2TP initialization strings. In general, you don’t need to modify  Asyncmap Value  ffffffff  this value.  Maximum Receiving Unit. It is the identifier of the maximum size of packet,  MRU  1500  which is possible to receive in a given environment.  Maximum Transmission Unit. It is the identifier of the maximum size of  MTU  1436  packet, which is possible to transfer in a given environment.  Specify the interval between L2TP client and server.  To check the connectivity of a tunnel, the client and server regularly send  PPP Echo to each other. If the client or server receives no response from the  Link Detection Interval  peer within a specified period of time, it retransmits the PPP echo. If it  30  receives no response from the peer after transmitting the PPP echo for max  retries times, it considers that the L2TP tunnel is down and tries  tore‐establish a tunnel with the peer.  Link  Detection  Max  Specify the max retries times for L2TP link detection.  5  Retries  You can enter some other PPP initialization strings in this field. Each string  noccp  Expert Options  can be separated by a space.  nobsdcomp ...
  • Page 82 Robustel GoRugged R3000‐3P‐GPS User Guide          L2TP Server @ L2TP  Item  Description  Default  Enable L2TP Server  Tick to enable L2TP server.  Disable  Username  Set the username which will assign to L2TP client.  Null  Password  Set the password which will assign to L2TP client.  Null  Select from “PAP”, “CHAP”, “MS‐CHAP v1” and “MS‐CHAP v2”.  Authentication  L2TP client need to select the same authentication method based on this  CHAP  server’s authentication method.    Enable  Tunnel  Tick to enable tunnel authentication and enter the tunnel secret which will  Disable  Authentication  provide to L2TP client.  Local IP  Set the IP address of L2TP server.  10.0.0.1  IP Pool Start  Set the IP pool start IP address which will assign to the L2TP clients.  10.0.0.2  IP Pool End  Set the IP pool end IP address which will assign to the L2TP clients.  10.0.0.100  Show  L2TP  Server ...
  • Page 83: Configuration -> Pptp

    Robustel GoRugged R3000‐3P‐GPS User Guide    Echo to each other. If the client or server receives no response from the peer  within a specified period of time, it retransmits the PPP echo. If it receives no  response from the peer after transmitting the PPP echo for max retries times,  it considers that the L2TP tunnel is down and tries tore‐establish a tunnel with  the peer.  Link  Detection  Max  Specify the max retries times for L2TP link detection.  5  Retries  You can enter some other PPP initialization strings in this field. Each string  noccp  Expert Options  can be separated by a space.  nobsdcomp Route Table List  Click “Add” to add a route rule from L2TP server to L2TP client.  Null    3.26 Configuration ‐> PPTP  This section allows users to set the PPTP parameters.        RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          82 / 129 ...
  • Page 84 Robustel GoRugged R3000‐3P‐GPS User Guide        PPTP Client @ PPTP  Item  Description  Default  Add  Click “Add” to add a PPTP client    Enable  Enable PPTP Client. The max tunnel accounts are 3.  Null  Disable  Disable PPTP Client.  Null  Remote IP Address  Enter your PPTP server’s public IP or domain name.  Null  Username  Enter the username which was provided by your PPTP server.  Null  Password  Enter the password which was provided by your PPTP server.  Null  Select from “Auto”, “PAP”, “CHAP”, “MS‐CHAP v1” and “MS‐CHAP v2”.  You need to select the corresponding authentication method based on the  Authentication  Auto  server’s authentication method. When you select “Auto”, router will auto  select the correct method based on server’s method.  Click to enable NAT feature of PPTP. The source IP address of host Behind  Enable NAT  Disable  R3000 will be disguised before accessing the remote PPTP server.  Tick to enable MPPE (Microsoft Point‐to‐Point Encryption). It’s a protocol for  Enable MPPE  Disable  encrypting data across PPP and VPN links. ...
  • Page 85 Robustel GoRugged R3000‐3P‐GPS User Guide    it considers that the PPTP tunnel is down and tries tore‐establish a tunnel  with the peer.  Link  Detection  Max  Specify the max retries times for PPTP link detection.  5  Retries  You can enter some other PPP initialization strings in this field. Each string  noccp  Expert Options  can be separated by a space.  nobsdcomp           PPTP Server @ PPTP  Item  Description  Default  Enable PPTP Server  Tick to enable PPTP server.  Disable    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          84 / 129 ...
  • Page 86: Configuration -> Snmp

    Robustel GoRugged R3000‐3P‐GPS User Guide    Username  Set the username which will assign to PPTP client.  Null  Password  Set the password which will assign to PPTP client.  Null  Select from “PAP”, “CHAP”, “MS‐CHAP v1” and “MS‐CHAP v2”.  Authentication  PPTP client need to select the same authentication method based on this  CHAP  server’s authentication method.  Local IP  Set the IP address of PPTP server.  10.0.0.1  IP Pool Start  Set the IP pool start IP address which will assign to the PPTP clients.  10.0.0.2  IP Pool End  Set the IP pool end IP address which will assign to the PPTP clients.  10.0.0.100  Tick to enable MPPE (Microsoft Point‐to‐Point Encryption). It’s a protocol for  Enable MPPE  Disable  encrypting data across PPP and VPN links.  Show  PPTP  Server  Tick to show the PPTP server advanced setting.  Disable  Advanced  Address/Control  Used for PPP initialization. In general, you need to enable it as default.  Enable  Compression  Protocol  Field  Used for PPP initialization. In general, you need to enable it as default.  Enable ...
  • Page 87 Robustel GoRugged R3000‐3P‐GPS User Guide        Basic @ SNMP  Item  Description  Default  Port  UDP port for sending and receiving SNMP requests.  161  Agent Mode  Select the correct agent mode.  Master  Version  Select from “SNMPv1”, “SNMPv2” and “SNMPv3”.  SNMPv2  Location Info  Enter the router’s location info which will send to SNMP client.  China  Contact Info  Enter the router’s contact info which will send to SNMP client.  info@robustel.com System name  Enter the router’s system name which will send to SNMP client.  router        View @ SNMP  Item  Description  Default  View Name  Enter the View Name  Null  View Filter  Select from “Include” and “Exclude”.  Include  View OID ...
  • Page 88: Configuration -> Vrrp

    Robustel GoRugged R3000‐3P‐GPS User Guide        VACM @ SNMP  Item  Description  Default  Readwrite  Select the access rights from “Readonly” and “ReadWrite”.  Readonly  Network  Define the network from which is allowed to access. E.g. 172.16.0.0.  Null  Community  Enter the community name.  Null  MIBview  Select from “none”, “system” and “all”  none        Trap @ SNMP  Item  Description  Default  Enable SNMP Trap  Click to enable SNMP Trap feature.  Disable  Version  Select from “SNMPv1”, “SNMPv2” and “SNMPv3”.  SNMPv2  Server Address  Enter SNMP server’s IP address.  Null  Port  Enter SNMP server’s port number  0  Name ...
  • Page 89: Configuration -> At Over Ip

    Robustel GoRugged R3000‐3P‐GPS User Guide          VRRP  Item  Description  Default  Tick to enable VRRP protocol. VRRP (Virtual Router Redundancy Protocol) is  an Internet protocol that provides a way to have one or more backup routers  Enable VRRP  Disable  when using a statically configured router on a local area network (LAN).Using  VRRP, a virtual IP address can be specified manually.    Group ID  Specify which VRRP group of this router belong to.  1  Priority  Enter the priority value from 1 to 255. The larger value has higher priority.  100  Interval  The interval that master router sends keepalive packets to backup routers.  10  A virtual IP address is shared among the routers, with one designated as the  master router and the others as backups. In case the master fails, the virtual  192.168.0. Virtual IP  IP address is mapped to a backup router's IP address. (This backup becomes  1  the master router.)    3.29 Configuration ‐> AT over IP  This section allows users to set the AT over IP parameters.        AT over IP ...
  • Page 90: Configuration -> Phone Book

    Robustel GoRugged R3000‐3P‐GPS User Guide    Null stands for all these three IP addresses.  Local Port  Enter the local TCP or UDP listening port.  8091    3.30 Configuration ‐> Phone Book  This section allows users to set the Phone Book parameters.      Phone Book  Item  Description  Default  Description  Set the name to your relevant phone No.  Null  Enter your phone No.  Note:  Phone No.  Null  In some countries, the Phone NO. is required to be written in international  format, starting with “+” followed by the country code.        RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          89 / 129 ...
  • Page 91: Configuration -> Sms

    Robustel GoRugged R3000‐3P‐GPS User Guide        Phone Group  Group Name  Set the Group Name.  Null  Phone List  Show the phone list in the Group.  Null  Add  or  remove  the  Click right arrow to add the phone no.to this group; Click left arrow to remove  phone  no.to/from  Null  the phone no.from group.  group  Note: R3000‐4L does not support SMS/Call function, so PhoneBook section will not be displayed on the web page.  3.31 Configuration ‐> SMS  This section allows users to set the SMS Notification and SMS Control parameters.      RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          90 / 129 ...
  • Page 92: Configuration -> Reboot

    Robustel GoRugged R3000‐3P‐GPS User Guide      SMS  Item  Description  Default  Send  SMS  on  power  Enable to send SMS to specific user after router was powered up.  Disable  up  Send  SMS  on  PPP  Enable to send SMS to specific user when router PPP up.  Disable  connect  Send  SMS  on  PPP  Enable to send SMS to specific user when router PPP down.  Disable  disconnect  Phone Group  Select the Phone Group you set in 3.2.27 Configuration ‐> Phone Book  Null  Enable @ SMS Control  Click to enable SMS remote control.  Disable  Set the password content characters.  Password Content  Null  Note: Only support text format. For example 123 or ABC123.  Phone Group  Select the Phone Group you set in 3.2.27 Configuration ‐> Phone Book ...
  • Page 93: Configuration -> Portal

    Robustel GoRugged R3000‐3P‐GPS User Guide    Time @ Reboot  Item  Description  Default  Enable daily reboot, you should follow ahh:mm,24h time frame, or the data will  Enable(ahh:mm,24h)  Disable  be invalid.  Reboot Time1  Specify time1 when you need router reboot.  Null  Reboot Time2  Specify time2 when you need router reboot.  Null  Reboot Time3  Specify time3 when you need router reboot.  Null  Call @ Reboot  Enable Call Reboot  Click to enable call reboot function  Disable  Phone Group  Set the Phone Group which was allowed to reboot the router by call.  Null  Send reply short message after auto Call reboot from specified Caller ID (e.g.  SMS Reply Content  Reboot ok!).    Null  Note: Only support text format SMS.  SMS @ Reboot  Enable SMS Reboot  Click to enable SMS reboot function  Disable  Phone Group  Set the Phone Group which was allowed to reboot the router by SMS.  Null  Password ...
  • Page 94: Configuration -> Syslog

    Robustel GoRugged R3000‐3P‐GPS User Guide        Robustlink @ Portal  Item  Description  Default  Server address  Enter IP address of RobustLink.    Null  Port  Enter port number of RobustLink.    1883  Enter the password preset in RobustLink.    Password  Null  Note: The passwords set in R3000 and RobustLink need to be the same.  Cumulosity  URL,  Username,  Fill in the URL, Username, Password, Device Name, Device ID (S), KeepAlive of  Password,  Device  Cumulosity. Default settings will be ok. After settings are activated, R3000 will    Name,  Device  ID  (S),  update information to Cumulosity automatically.    KeepAlive    3.34 Configuration ‐> Syslog  This section allows users to set the syslog parameters. ...
  • Page 95: Configuration -> Event

    Robustel GoRugged R3000‐3P‐GPS User Guide    only saved in RAM, and will be cleared after reboot.  Select form “DEBUG”, “INFO”, “NOTICE”, “WARNING”, “ERR”, “CRIT”, “ALERT”  Log Level  and “EMERG” which from low to high. The lower level will output more syslog in  DEBUG  detail.  Keep Days  Specify the syslog keep days for router to clear the old syslog.  14  Enable to allow router sending syslog to the remote syslog server. You need to  Log to Remote System  Disable  enter the IP and Port of the syslog server.    3.35 Configuration ‐> Event  This section allows users to set the Event parameters.      Event  Item  Description  Default  Click to enable Event feature.  This feature is used to report R3000’s main running event to SNMP‐TRAP or  RobustLink. There are numbers of Event code you can select, such as  Enable Event  Disable  “BOOT‐UP”, “3G‐UP”, “3G‐DOWN”, etc. For example if you click “3G‐UP” and  select “RobustLink” as the server, when R3000 dial up to connect to 3G network,  it will send event code “3G‐UP” as well as relevant information to RobustLink.      RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          94 / 129 ...
  • Page 96: Configuration -> Usr Led

    Robustel GoRugged R3000‐3P‐GPS User Guide    3.36 Configuration ‐> USR LED  This section allows users to change the display status of USR LED.    Note: Please refer to “Status” ‐> “System” ‐> “LEDs Information” ‐> “USR”.      USR LED  Item  Description  Default  USR LED Type  Select from “VPN”, “PPPoE”, “DynDNS” and “GPS”.  VPN  Select from “ON”, “Blink”.  Indication  For example, if “USR LED Type” is set as “VPN” and “Indication” is set as “Blink”,  ON  when any VPN tunnel is up USR LED will blink.    3.37 Configuration ‐> RobustVPN  This section allows users to configure the settings of RobustVPN, which is based on a hosted web service designed to  connect  customer  to  their  machines  through  Internet.  The  hosted  acts  as  data  transit  platform  and  offer ...
  • Page 97: Administration -> Profile

    Robustel GoRugged R3000‐3P‐GPS User Guide      RobustVPN  Item  Description  Default  Enable RobustVPN  Click to enable RobustVPN.  Disable  Server Address  Enter the IP address or Domain Name of RobustVPN server.  Null  HTTPS Port  Enter the HTTPS Port of RobustVPN server.  443  Username  Enter the Username of RobustVPN server.  admin  Password  Enter the Password of RobustVPN server.  admin  Show status of RobustVPN, including connection status, Local IP, Remote IP and  RobustVPN Status    Connect Time.  Reset RobustVPN  Click to reset RobustVPN.        3.38 Administration ‐> Profile  This section allows users to import or export the configuration file, and restore the router to factory default setting.        Profile  Item  Description ...
  • Page 98: Administration -> Tools

    Robustel GoRugged R3000‐3P‐GPS User Guide    Export: Click “Export” and the configuration will be showed in the new popup  browser window, then you can save it as a XML file.  Restore  to  Factory  Click the button of “Restore to Factory Default Settings” to restore the router  Null  Default Settings  to factory default setting.    3.39 Administration ‐> Tools  This section provides users four tools: Ping, AT Debug, Traceroute and Test.      Ping @ Tools  Item  Description  Default  Ping IP address  Enter the ping destination IP address or domain name.  Null  Number of requests  Specify the number of ping requests.  5  Timeout  Specify timeout of ping request.  1  Specify  the  local  IP  from  cellular  WAN,  Ethernet  WAN  or  Ethernet  LAN.  Null ...
  • Page 99 Robustel GoRugged R3000‐3P‐GPS User Guide        AT Debug @ Tools  Item  Description  Default  Send AT Commands  Enter the AT commands which you need to send to cellular module in this box.  Null  Send  Click this button to send the AT commands.  Null  Router will display the AT commands which respond from the cellular module in  Receive AT Commands  Null  this box.              RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          98 / 129 ...
  • Page 100 Robustel GoRugged R3000‐3P‐GPS User Guide    Traceroute @ Tools  Item  Description  Default  Trace Address  Enter the trace destination IP address or domain name.  Null  Specify  the  max  trace  hops.  Router  will  stop  tracing  if  the  trace  hops  has  met  Trace Hops  30  max value no matter the destination has been reached or not.  Timeout  Specify timeout of Traceroute request.  1  Click this button to start Traceroute request, and the log will be displayed in the  Send  Null  follow box.        Sniffer @ Tools  Item  Description ...
  • Page 101: Administration -> Clock

    Robustel GoRugged R3000‐3P‐GPS User Guide        Test @ Tools  Item  Description  Default  Click  “Enable”  to  select  the  hardware  component  whose  status  you  want  to  Enable    Enable  check.  Select from “SD Test”, “USB Test”, “Flash Test”, “Memory Test”, “Ethernet Test”,  Description  N/A  “SIM1 Test”, “SIM2 Test” and “Module Test”.  Show the current status of the selected hardware component. There are 3 status  “Testing”, “Success” and “Failure”.  Testing: Router is testing the selected hardware component.  Result  Null  Success: Correspond hardware component is properly inserted and detected.  Failure: Correspond hardware component is not inserted into the router or the  router fails to detect.  Show Detail  Show the current test details of the hardware component.  Null  Note: click “Apply” to start testing. ...
  • Page 102: Administration -> Web Server

    Robustel GoRugged R3000‐3P‐GPS User Guide        Clock  Item  Description  Default  Real Time Clock  Router’s RTC can be showed and modified in this field.  Null  PC Time  You PC’s time can be showed here.  Null  Synchronize  Synchronize router’s RTC with PC.  Null  Enable NTP Client  Enable to synchronize the time from NTP server.  Disable  UTC  Timezone @ Client  Select your local time zone.  +08:00  pool.nt Primary NTP Server  Enter primary NTP Server’s IP address or domain name.  p.org  Secondary NTP Server  Enter secondary NTP Server’s IP address or domain name.  Null  Update interval (h)  Enter the interval which NTP client synchronize the time from NTP server.  1  Enable NTP Server  Click to enable the NTP server function of router.  Disable  UTC  Timezone @ Server  Select your local time zone. ...
  • Page 103: Administration -> User Management

    Robustel GoRugged R3000‐3P‐GPS User Guide          Basic @ Web Server  Item  Description  Default  Enter the HTTP port number you want to change in R3000’s Web Server.    On  a  Web  server,  port  80  is  the  port  that  the  server  "listens  to"  or  expects  to  HTTP Port  receive  from  a  Web  client.  If  you  configure  the  router  with  other  HTTP  Port ...
  • Page 104: Administration -> Sdk Management

    Robustel GoRugged R3000‐3P‐GPS User Guide        Super @ User Management  Item  Description  Default  One  router  has  only  one  super  user  account.  Under  this  account,  user  has  the  Super  Admin  highest authority include modify and add management user accounts.  Set Username and Password.  User Management  Note:  R3000  support  SSH2  for  management.  Details  you  can  check  Application  Null  Note of R3000. ...
  • Page 105: Administration -> Update Firmware

    Robustel GoRugged R3000‐3P‐GPS User Guide        APP @ SDK Management  Item  Description  Default  Firmware Version  Show the current firmware version.  Null  Import Files  Click to import APP files in this item.  Null  This list shows which APP files you have imported to the router, which APP file  you want to start up, as well as the running information.  Enable: Click to enable the APP file.  Custom  Application  APP Name: Shows the name of the APP files.  Null  List  Options: It is an optional items, user can choose to configure startup parameters  here.  Memory (KB): Shows the memory resources occupied by the APP files.  Running: Shows whether the APP files are running.        Files @ SDK Management  Item  Description  Default  Import Files  Click to import configuration files in this item.  Null  Custom File List  This list shows which Configuration files you have imported to the router.    Null ...
  • Page 106 Robustel GoRugged R3000‐3P‐GPS User Guide        Update  Item  Description  Default  Firmware Version  Show the current firmware version.    Click “Select File” button to select the correct firmware in your PC, and then click  Update firmware  “Update”  button”  to  update.  After  updating  successfully,  you  need  to  reboot  Null  router to take effect.      RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          105 / 129 ...
  • Page 107: Configuration Examples

    Robustel GoRugged R3000‐3P‐GPS User Guide    Chapter 4. Configuration Examples  4.1 Interface  4.1.1 Console port  User  can  use  the  console  port  to  manage the router via CLI  commands,  please  check  section  Introductions  for  CLI.      RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          106 / 129 ...
  • Page 108: Digital Input

    Robustel GoRugged R3000‐3P‐GPS User Guide    4.1.2 Digital Input    There  are  two  digital  inputs  of  R3000,  it  just  support  dry  contact  (do  not  supports  wet  contact).  Please  check  the  connector  interface  of  R3000,  you  can  find  out  “V‐”  easily  at  one  of  the  pin  of ...
  • Page 109: Rs232

    Robustel GoRugged R3000‐3P‐GPS User Guide    4.1.4 RS232  R3000  supports  one  RS232  for  serial data communication.  Please  refer  to  the  connection  diagram at the right site.    4.1.5 RS485  R3000  supports  one  RS485  for  serial  data communication.  Please refer to the connection diagram  at the right site.        RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          108 / 129 ...
  • Page 110: Cellular

    Robustel GoRugged R3000‐3P‐GPS User Guide    4.2 Cellular  4.2.1 Cellular Dial‐Up  This section shows users how to configure the parameters of Cellular Dial‐up which are with two different policies  “Always Online” and “Connect on Demand”.  Note: This section will be hidden if user selects “Eth0 Only” in “Configuration ‐>Link Management”.    Always Online  Configuration‐‐>Link Management‐‐>Cellular    The modifications will take effect after click “Apply” button.      Configuration‐‐>Cellular WAN ‐‐>Basic        RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          109 / 129 ...
  • Page 111 Robustel GoRugged R3000‐3P‐GPS User Guide          The modifications will take effect after click “Apply” button.    If a customized SIM  card is using, please select “Custom” instead of “Auto” in “Network Provider Type”, and some  relative settings should be filled in manually.    Connect on Demand  Configuration‐‐>Link Management‐‐>Cellular    The modifications will take effect after click “Apply” button.    Note This  section  will  be  hidden  if  user  selects  “Cellular  as  primary  and  if  fail  use  Eth0”  in  “Configuration  ‐>Link  :  Management”.    Configuration‐‐>Cellular WAN ‐‐>Basic ...
  • Page 112: Sms Remote Status Reading

    Robustel GoRugged R3000‐3P‐GPS User Guide        Select the trigger policy you need.  Note If you select multiple trigger policies, the router will be triggered under anyone of them.  :    4.2.2 SMS Remote Status Reading  R3000 supports remote  control via SMS.  User  can use following  commands to  get  the status of R3000, cannot set  new parameters of R3000 at present.  An SMS command has following structure:    Password:cmd1,a,b,c;cmd2,d,e,f;cmd3,g,h,i;...;cmdn,j,k,n  SMS command Explanation:  Password:  SMS  control  password  is  configured  at  Basic‐>SMS  Control‐>Password,  which  is  an  optional  parameter.    When there is no password, SMS command has following structure: cmd1;cmd2;cmd3;…;cmdn  When there is a password, SMS command has following structure: Password:cmd1;cmd2;cmd3;…;cmdn   ...
  • Page 113 Robustel GoRugged R3000‐3P‐GPS User Guide    The semicolon character (‘;’) is used to separate more than one commands packed in a single SMS.    E.g., 1234:0001  In this command, password is 1234, 0001 is the command to reset R3000.    Cmd  Description  Syntax  Comments    Control Commands  if no password, please use  command "cmd", or use  command" password:  0001  Reset Device  cmd  cmd"  cmd1 + cmd2:  cmd1;cmd2  * ‐ means can be null  0002  Save Parameters  cmd    Save Parameters    and  0003  cmd    Reset Device  0004  Start PPP Dialup  cmd    0005  Stop PPP   ...
  • Page 114: Network

    Robustel GoRugged R3000‐3P‐GPS User Guide    4.3 Network  4.3.1 NAT  This section shows users how to set the NAT configuration of router.  Parameter Remote IP defines if access is allowed to route to the Forwarded IP and Port via WAN IP and “Arrives At  Port”.        Configuration‐‐‐>NAT/DMZ‐‐‐>Port Forwarding      Note   This  section  will  be  hidden  if  user  selects  “Cellular  as  primary  and  if  fail  use  Eth0”  in  “Configuration  ‐>Link  Management”.    Explanations for above diagram:  If there are two IP addresses 58.1.1.1 and 59.1.1.1 for the External Devices, that the result will be different from the ...
  • Page 115: L2Tp

    Robustel GoRugged R3000‐3P‐GPS User Guide    58.1.1.1‐‐‐‐‐‐‐‐‐‐access to‐‐‐‐‐‐‐‐‐>58.1.1.2:9991‐‐‐‐‐‐‐‐‐‐be forwarded to‐‐‐‐‐‐‐>10.1.1.2:8001                  UDP  58.1.1.1‐‐‐‐‐‐‐‐‐‐access to‐‐‐‐‐‐‐‐‐>58.1.1.2:9992‐‐‐‐‐‐‐‐‐‐be forwarded to‐‐‐‐‐‐‐>10.1.1.3:8002                  TCP&UDP    4.3.2 L2TP      L2TP_SERVER:  Configuration‐‐‐>L2TP‐‐‐>L2TP Server    Tick “Enable L2TP Server”, and fill in the blank textbox    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          114 / 129 ...
  • Page 116 Robustel GoRugged R3000‐3P‐GPS User Guide        The modification will take effect after “Apply‐‐>Save‐‐>Reboot”.  Note The following diagrams with red color  numbers mean these  are the matches  between server  and  client,  and  :  with the blue color number means it must be set locally for the tunnel.    L2TP_CLIENT:  Configuration‐‐‐>L2TP‐‐‐>L2TP Client    Click “Add” button, and fill in the blank textbox      The modification will take effect after “Apply‐‐>Save‐‐>Reboot”.    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          115 / 129 ...
  • Page 117: Pptp

    Robustel GoRugged R3000‐3P‐GPS User Guide    4.3.3 PPTP    Note The following diagrams with red color  numbers mean these  are the matches  between server  and  client,  and  :  with the blue color number means it must be set locally for the tunnel .    PPTP_SERVER:  Configuration‐‐‐>PPTP‐‐‐>PPTP Server    Tick “Enable PPTP Server”, and fill in the blank textbox    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          116 / 129 ...
  • Page 118 Robustel GoRugged R3000‐3P‐GPS User Guide      The modification will take effect after “Apply‐‐>Save‐‐>Reboot”.    PPTP_CLIENT:  Configuration‐‐‐>PPTP‐‐‐>PPTP Client    Click “Add” button, and fill in the blank textbox      The modification will take effect after “Apply‐‐>Save‐‐>Reboot”.    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          117 / 129 ...
  • Page 119: Ipsec Vpn

    Robustel GoRugged R3000‐3P‐GPS User Guide    4.3.4 IPSEC VPN      Note The following diagrams with red color numbers mean these are the matches between server and  client, and  :  with the blue color number means it must be set locally for the tunnel.   IPsecVPN_SERVER:  Cisco 2811:      RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          118 / 129 ...
  • Page 120 Robustel GoRugged R3000‐3P‐GPS User Guide    Note Polices 1,4,6,7 are default for Cisco router and do not display at the CMD :  .    IPsecVPN_CLIENT:  Configuration‐‐‐>IPSec‐‐‐>IPSec Basic      Then click “Apply”. Configuration‐‐‐>IPSec‐‐‐>IPSec Tunnel    Tick “Enable IPSec Tunnel1”      RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          119 / 129 ...
  • Page 121: Openvpn

    Robustel GoRugged R3000‐3P‐GPS User Guide      The modification will take effect after “Apply‐‐>Save‐‐>Reboot”.  4.3.5 OPENVPN      Note: The following diagrams with red color numbers mean these are the matches between server and client, and  with the blue color number means it must be set locally for the tunnel.    OPENVPN_SERVER:   Configuration‐‐‐>OpenVPN‐‐‐>Server    Tick “Enable OpenVPN Server”.    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          120 / 129 ...
  • Page 122 Robustel GoRugged R3000‐3P‐GPS User Guide        The modifications will take effect after click “Apply‐‐>Save‐‐>Reboot”.    OPENVPN_CLIENT:  Configuration‐‐‐>OpenVPN‐‐‐>Client     Tick “Enable OpenVPN Client1”, and fill in the blank textbox    RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          121 / 129 ...
  • Page 123 Robustel GoRugged R3000‐3P‐GPS User Guide          The modification will take effect after “Apply‐‐>Save‐‐>Reboot”.     RT_UG_R3000_v.2.0.3                                                                10.12.2014                                                                          122 / 129 ...
  • Page 124: Introductions For Cli

    Robustel GoRugged R3000‐3P‐GPS User Guide    Chapter 5. Introductions for CLI  5.1 What’s CLI and hierarchy level Mode  The  R3000  command‐line  interface  (CLI)  is  a  software  interface  providing  another  way  to  set  the  parameters  of  equipment  from  the  console  or  through  a  telnet  network  connection.  Before  using  them  better a few of details will be introduced on four different CLI hierarchy level modes which have different  access rights:   User exec mode—The command prompt “>” shows you are in the user mode , in this mode user can ...
  • Page 125 Robustel GoRugged R3000‐3P‐GPS User Guide    R3000> enable    Password: *****  R3000# ?                            //check what commands can be used in Privileged exec mode      debug                                Debug configure information      enable                              Turn on privileged commands ...
  • Page 126: How To Configure The Cli

    Robustel GoRugged R3000‐3P‐GPS User Guide    5.2 How to configure the CLI    Following is a list about the description of help and the error should be encountered in the configuring program. Commands /tips  Description    ?   Typing a question mark “?” will show you the help information.  Press  these  two  keys  at  the  same  time,  except  its  “copy”  function  but  also  Ctrl+c  can be used for “break” out of the setting program.  Parameters “xxx” are not supported by the system, in this case, enter a mark  Invalid command “xxx”  “?”  instead  of  “xxx”  will  help  to  find  out  the  correct  parameters  about  this ...
  • Page 127 Robustel GoRugged R3000‐3P‐GPS User Guide    Building configuration...  OK  R3000#reload  !Reboot the system?'yes'or 'no':yes                                        //reload to take effect      Example 3: Set link‐management  R3000> enable  Password: *****  R3000#  R3000# configure  R3000(config)# set link‐management  wan link :    1.Cellula    2.Eth0    3.Eth0 as primary and if fail use Cellular ...
  • Page 128 Robustel GoRugged R3000‐3P‐GPS User Guide        ICMP detection interval      : 30 seconds      ICMP detection timeout        : 3 seconds      ICMP detection retries        : 3      reset the interface              : no  *********************************************    R3000 # configure  R3000 (config) # set eth0  ethernet interface type: WAN  type select:    1.    Static IP ...
  • Page 129 Robustel GoRugged R3000‐3P‐GPS User Guide        ICMP detection timeout        : 3 seconds      ICMP detection retries        : 3      reset the interface              : no  *********************************************  R3000 (config) # set cellular    1. set SIM_1 parameters    2. set SIM_2 parameters  ‐>please select mode (1‐2)[1]:  SIM 1 parameters:  network provider    1. Auto    2. Custom    3. china‐mobile ...
  • Page 130: Commands Reference

    Robustel GoRugged R3000‐3P‐GPS User Guide        max connect try                      : 3      main SIM select                      : SIM_1      when connect fail                  : yes ...
