Main Power Switch

The main power switch controls power to the entire unit.

Redundant Power Supply Units (Check Point 4800)

The Check Point 4800 has an optional redundant power supply unit. Located at the left rear of
the appliance, two hot-swappable power supply units give built-in power redundancy. Each
power supply connects to an electrical outlet.
For appliances that are provisioned with one power supply unit, use the placeholder unit in the

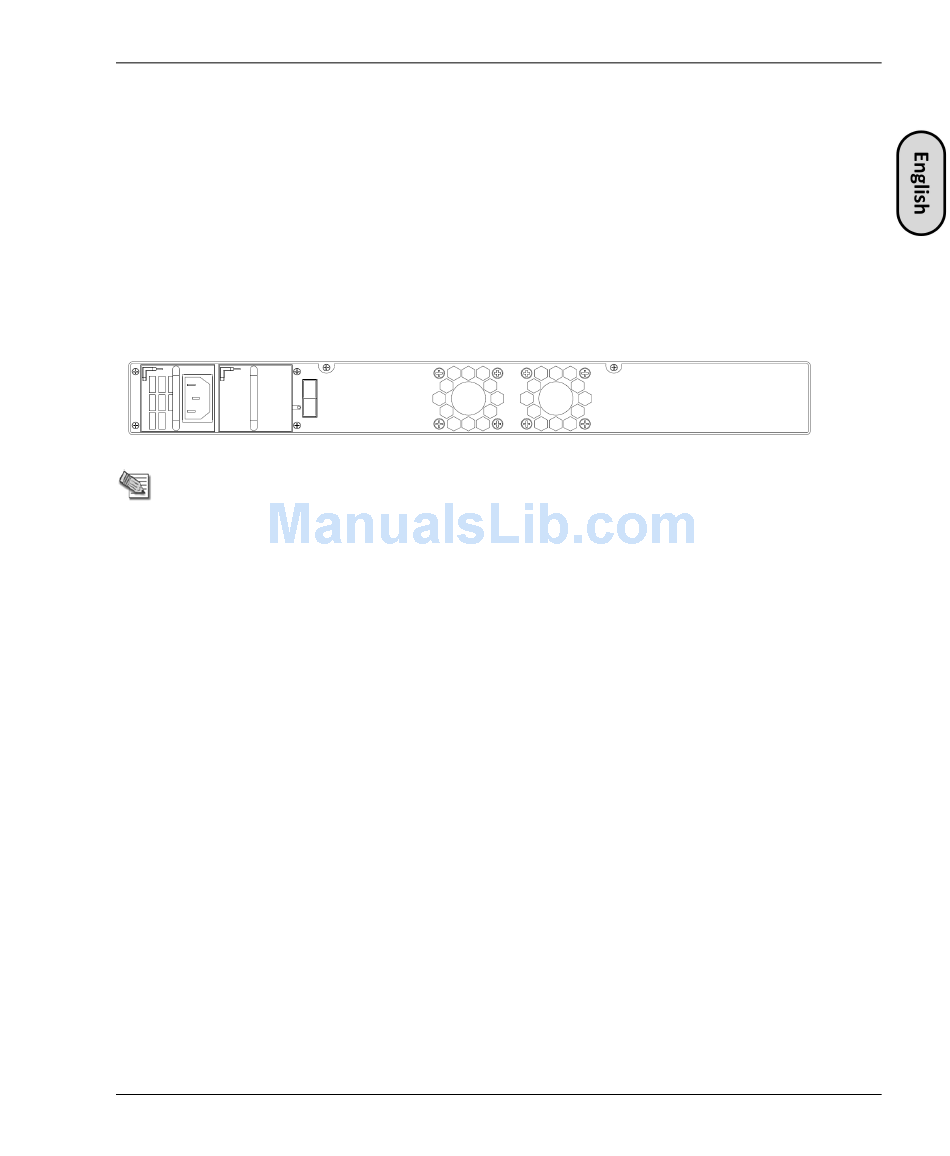

other power supply slot. This diagram shows the 4800 model with the placeholder unit:
Note - If both power supply slots are not populated, a continuous alarm sounds.
If a power supply fails or is not connected to the outlet, an alarm sounds continuously.

Replacing and Upgrading Components

The 4000 Appliances has parts that you can easily replace to minimize downtime. There are
also components that you can install to upgrade the appliance. These are the parts and
components that can be used with the appliance:
• Sliding rails
• Line cards
• Power supplies (4800 only)
• System memory (4800 only)
• LOM card (4800 only)
For more information about installing these parts and components, see the appliance home
page (http://supportcontent.checkpoint.com/solutions?id=sk68681).
Unless directed to do so by Check Point technical support, you are prohibited by warranty and
support agreements from replacing any parts.
