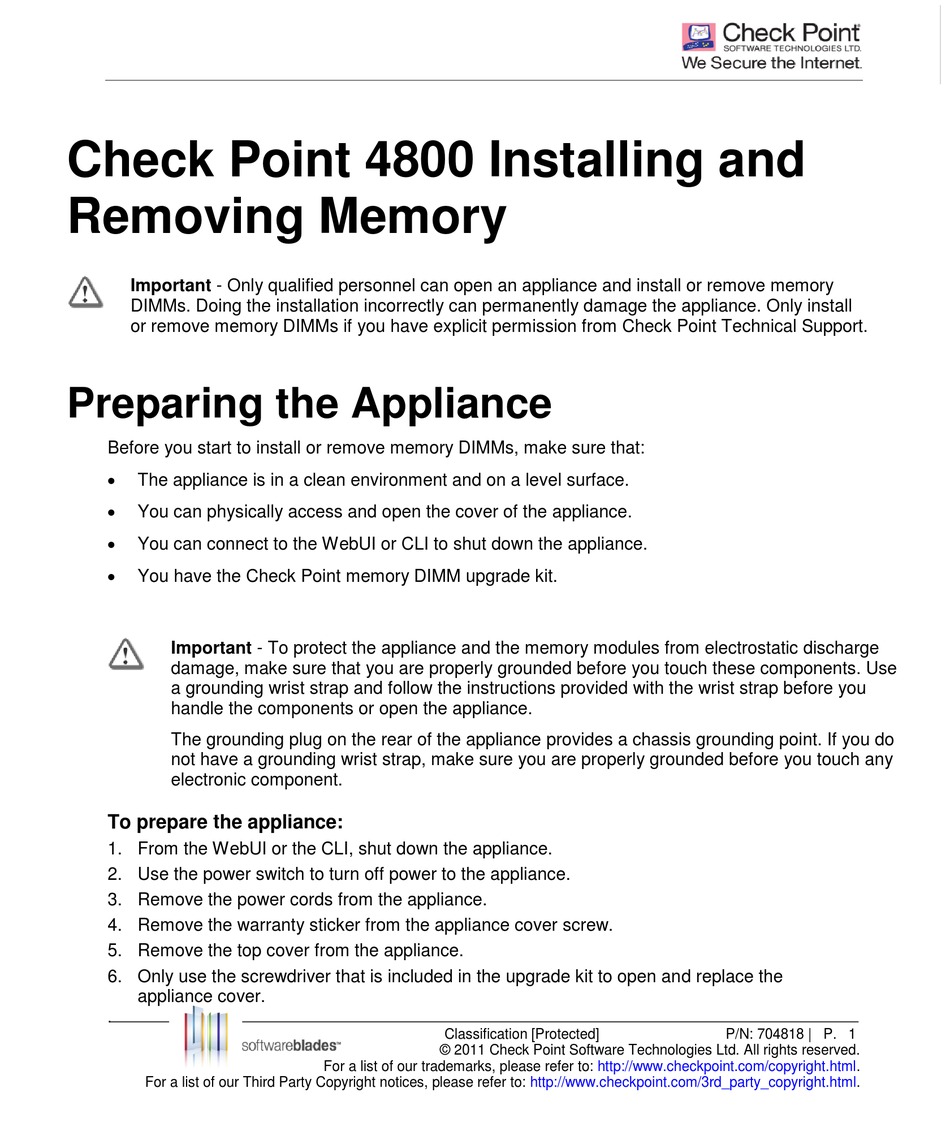

Check Point 4800 Installing and
Removing Memory
Important - Only qualified personnel can open an appliance and install or remove memory
DIMMs. Doing the installation incorrectly can permanently damage the appliance. Only install
or remove memory DIMMs if you have explicit permission from Check Point Technical Support.

Preparing the Appliance

Before you start to install or remove memory DIMMs, make sure that:

The appliance is in a clean environment and on a level surface.

You can physically access and open the cover of the appliance.

You can connect to the WebUI or CLI to shut down the appliance.

You have the Check Point memory DIMM upgrade kit.
Important - To protect the appliance and the memory modules from electrostatic discharge
damage, make sure that you are properly grounded before you touch these components. Use
a grounding wrist strap and follow the instructions provided with the wrist strap before you
handle the components or open the appliance.
The grounding plug on the rear of the appliance provides a chassis grounding point. If you do
not have a grounding wrist strap, make sure you are properly grounded before you touch any
electronic component.
To prepare the appliance:
1. From the WebUI or the CLI, shut down the appliance.
2. Use the power switch to turn off power to the appliance.
3. Remove the power cords from the appliance.
4. Remove the warranty sticker from the appliance cover screw.
5. Remove the top cover from the appliance.
6. Only use the screwdriver that is included in the upgrade kit to open and replace the
appliance cover.
.
