600/1100 Appliance Single/Double
Rack Mounting Tray Installation
Classi ficati on: [Restricte d]
Restricte d
2016
Rack Mounting Tray

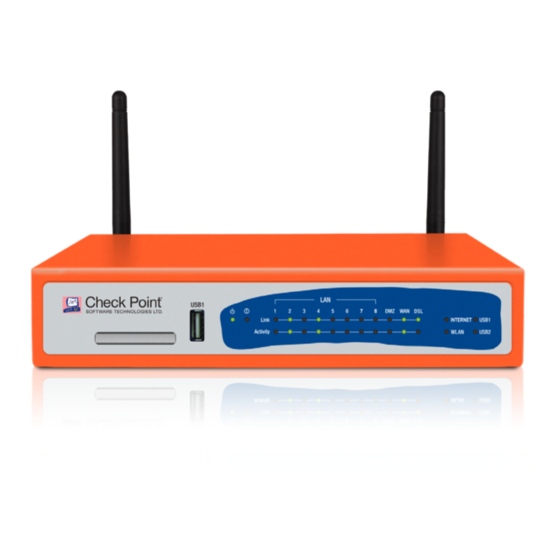

Install your 600 or 1100 Check Point Appliance on a specially-designed tray that
is rack-mounted on a 1U rack.
The illustrations in this document refer to these components:
Number
Name
1
Nut Cage
2
Phillips Pan Head Screw Tray > Rack
3
Flat Washer
4
Bracket
5
Lock Screw
6
Phillips CSK Head Screw Appliance > Tray
7
Wing Nut
8
Screw Kit
9
Tray
Classification [Restricted]
© 2016 Check Point Software Technologies Ltd. All rights reserved.
For a list of our trademarks, please refer to: www.checkpoint.com/copyright.html.
For a list of our Third Party Copyright notices, please refer to:
Purpose
Tray > Rack
Tray > Rack
Appliance > Tray
Appliance > Tray
Bracket > Tray
Rack mounted tray
www.checkpoint.com/3rd_party_copyright.html
Quantity
4
4
4
1
4
4
2
1
1
Advertisement
Related Manuals for Check Point 600
Summary of Contents for Check Point 600
- Page 1 Classi ficati on: [Restricte d] Restricte d 2016 Rack Mounting Tray Install your 600 or 1100 Check Point Appliance on a specially-designed tray that is rack-mounted on a 1U rack. The illustrations in this document refer to these components: Number...
-
Page 2: Installation
Installation To install the rack mounting tray: 1. Remove the 4 rubber bases from the bottom of the appliance. 2. Locate the tray (#9). 3. Place the appliance on top of the screw holes in the tray. 4. Use the lock screw (#5) and the Philips CSK head screw (#6) to fix the mounting holes in the bottom of the appliance firmly to the tray. - Page 3 • Screws configuration for installing two appliances on the tray:...
- Page 4 • Screw configuration for installing a single appliance on the tray:...
- Page 5 To install the bracket: 1. Retrieve the bracket (#4) and connect it to the tray with 2 wingnuts (#7): 2. Retrieve: • 4 additional screws (#3) • 4 washers (#2) • 4 nut cages (#1)
- Page 6 3. Attach the tray ears to a 1U rack:...
