UG-1225

FFT TAB

Figure 18 shows the FFT tab, which displays fast Fourier transform
(FFT) information for the last batch of samples gathered.
Analysis
General Settings
The General Settings pane allows the user to set up the
preferred configuration of the FFT analysis, including how
many tones are analyzed. The fundamental is set manually.

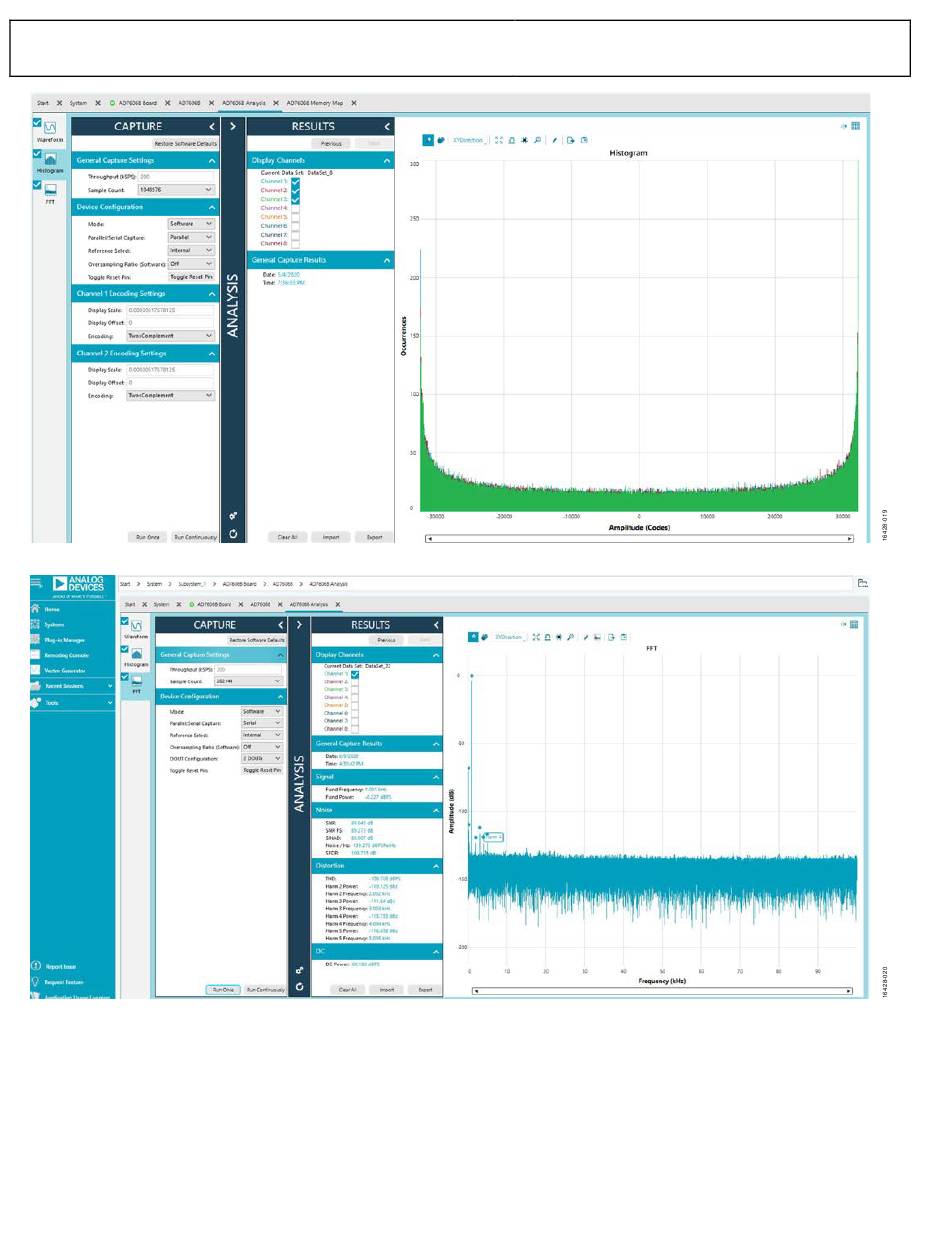

Figure 17. Histogram Tab
Figure 18. FFT Tab
Windowing
The Windowing pane allows the user to select the windowing
type used in the FFT analysis, the number of harmonic bins,
and the number of fundamental bins that must be included.
Rev. A | Page 14 of 15
EVAL-AD7606BFMCZ User Guide
