Bill Of Materials - Analog Devices iCoupler ADuM6010EBZ User Manual

Evaluation Board
User Guide

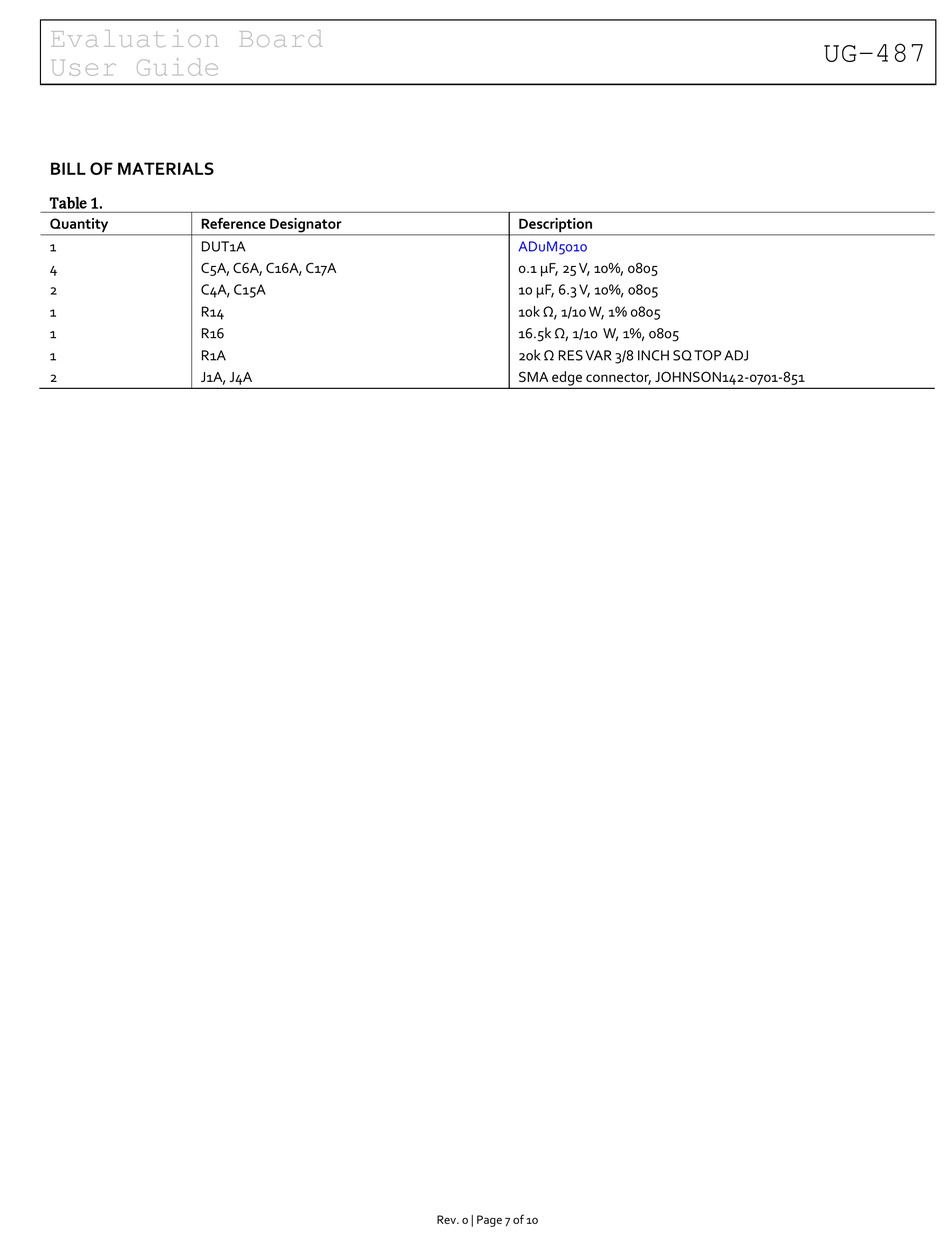

BILL OF MATERIALS

Table 1.
Quantity Reference Designator
1 DUT1A
4 C5A, C6A, C16A, C17A
2 C4A, C15A
1 R14
1 R16
1 R1A
2 J1A, J4A
Description
ADuM5010
0.1 µF, 25 V, 10%, 0805
10 µF, 6.3 V, 10%, 0805
10k Ω, 1/10 W, 1% 0805
16.5k Ω, 1/10 W, 1%, 0805
20k Ω RES VAR 3/8 INCH SQ TOP ADJ
SMA edge connector, JOHNSON142-0701-851
Rev. 0 | Page 7 of 10
UG-487
