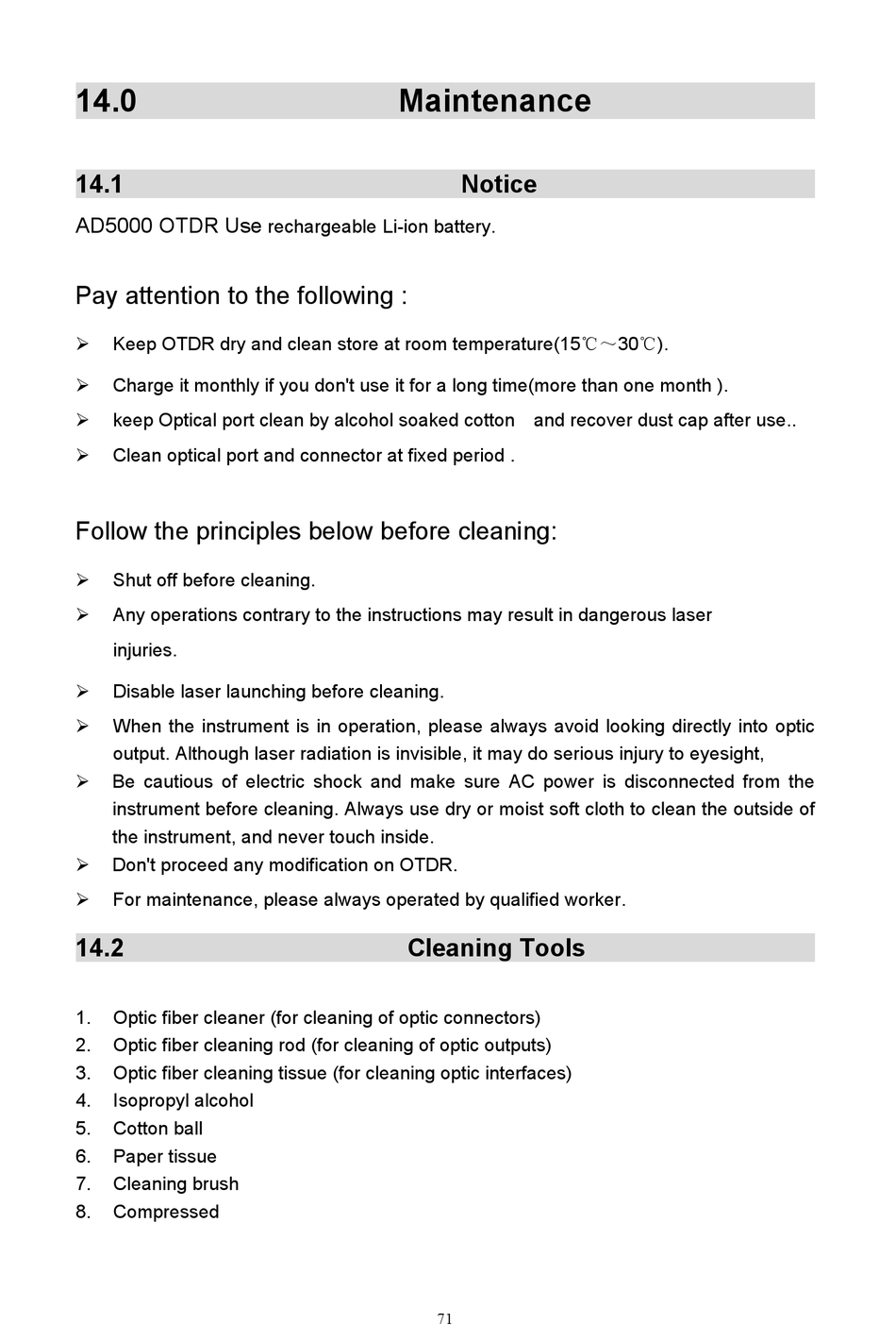

AD5000 OTDR Use
Pay attention to the following :
Ø Keep OTDR dry and clean store at room temperature(15℃～30℃).
Ø Charge it monthly if you don't use it for a long time(more than one month ).
Ø keep Optical port clean by alcohol soaked cotton and recover dust cap after use..
Ø Clean optical port and connector at fixed period .
Follow the principles below before cleaning:
Ø Shut off before cleaning.
Ø Any operations contrary to the instructions may result in dangerous laser
injuries.
Ø Disable laser launching before cleaning.
Ø When the instrument is in operation, please always avoid looking directly into optic
output. Although laser radiation is invisible, it may do serious injury to eyesight,
Be cautious of electric shock and make sure AC power is disconnected from the
Ø
instrument before cleaning. Always use dry or moist soft cloth to clean the outside of
the instrument, and never touch inside.
Don't proceed any modification on OTDR.
Ø
Ø For maintenance, please always operated by qualified worker.
14.2
1. Optic fiber cleaner (for cleaning of optic connectors)
2. Optic fiber cleaning rod (for cleaning of optic outputs)
3. Optic fiber cleaning tissue (for cleaning optic interfaces)
4. Isopropyl alcohol
5. Cotton ball
6. Paper tissue
7. Cleaning brush
8. Compressed

Maintenance

rechargeable Li-ion battery.

Cleaning Tools

Notice
