1.4
Before connect fiber to FHO 5000， clean fiber end first ,the dust which on the
end of connector may damage the optical port or reduce test quality.

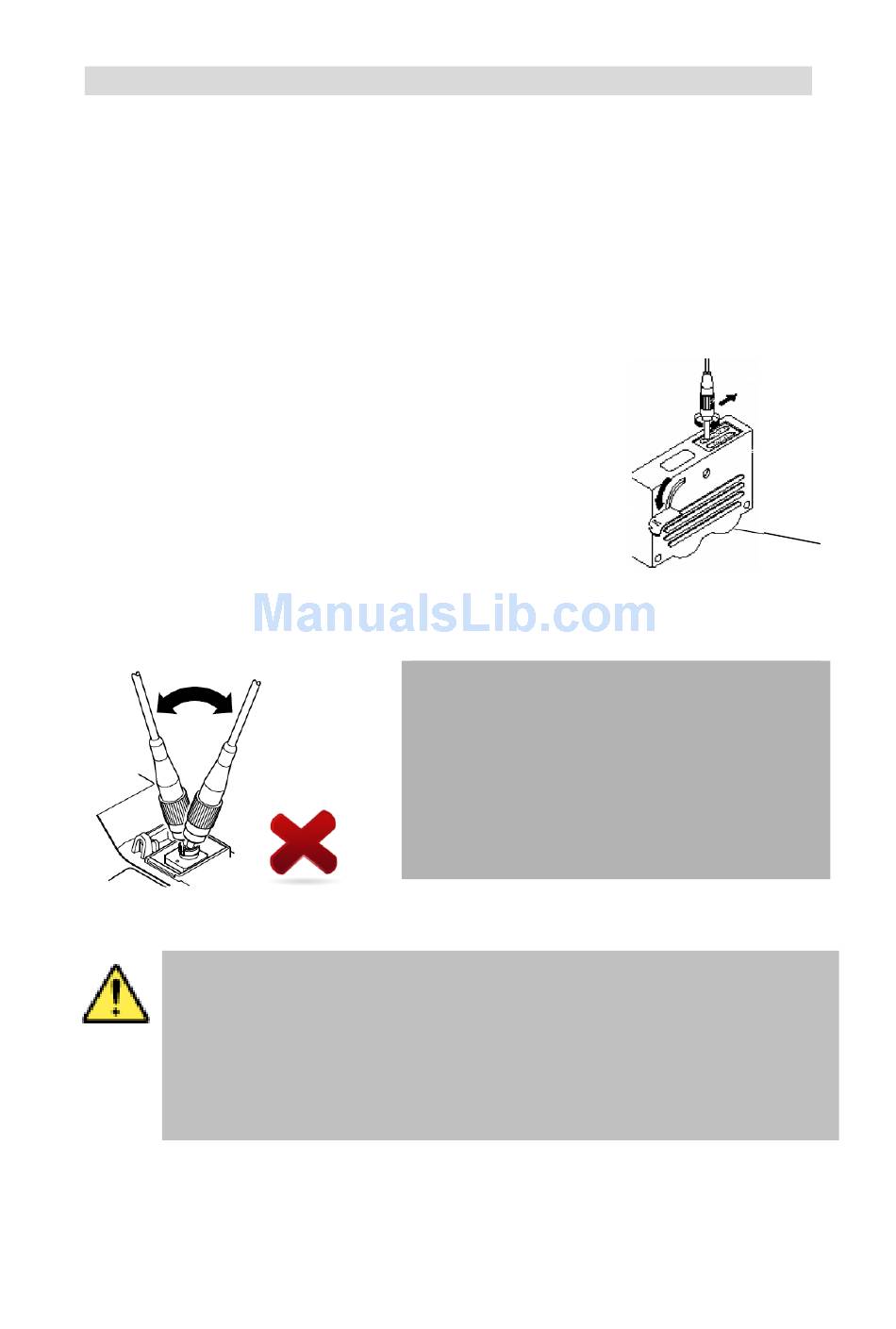

Procedure：
1. Put connector against the cleaner.
2. press the handle of cleaner.
3. Rub each other carefully to clean the contaminant.
4. Repeat procedure 1 and 3.
5. Open the protecting cover of optical port.
6. Insect connector into optical port carefully.
Before connection make sure that there is no optical signal exist
inside the fiber,any signal which is larger than -30dBm will disturb the
sampling of OTDR,even cause permanent damage of sensor.

Connecting the Fiber

Caution
Insect connector carefully into optical
port ， unproper operation may cause the
damage of optical port.
Warning
25
Cleaner
