Extron electronics IN1402 User Manual page 13

Table of Contents

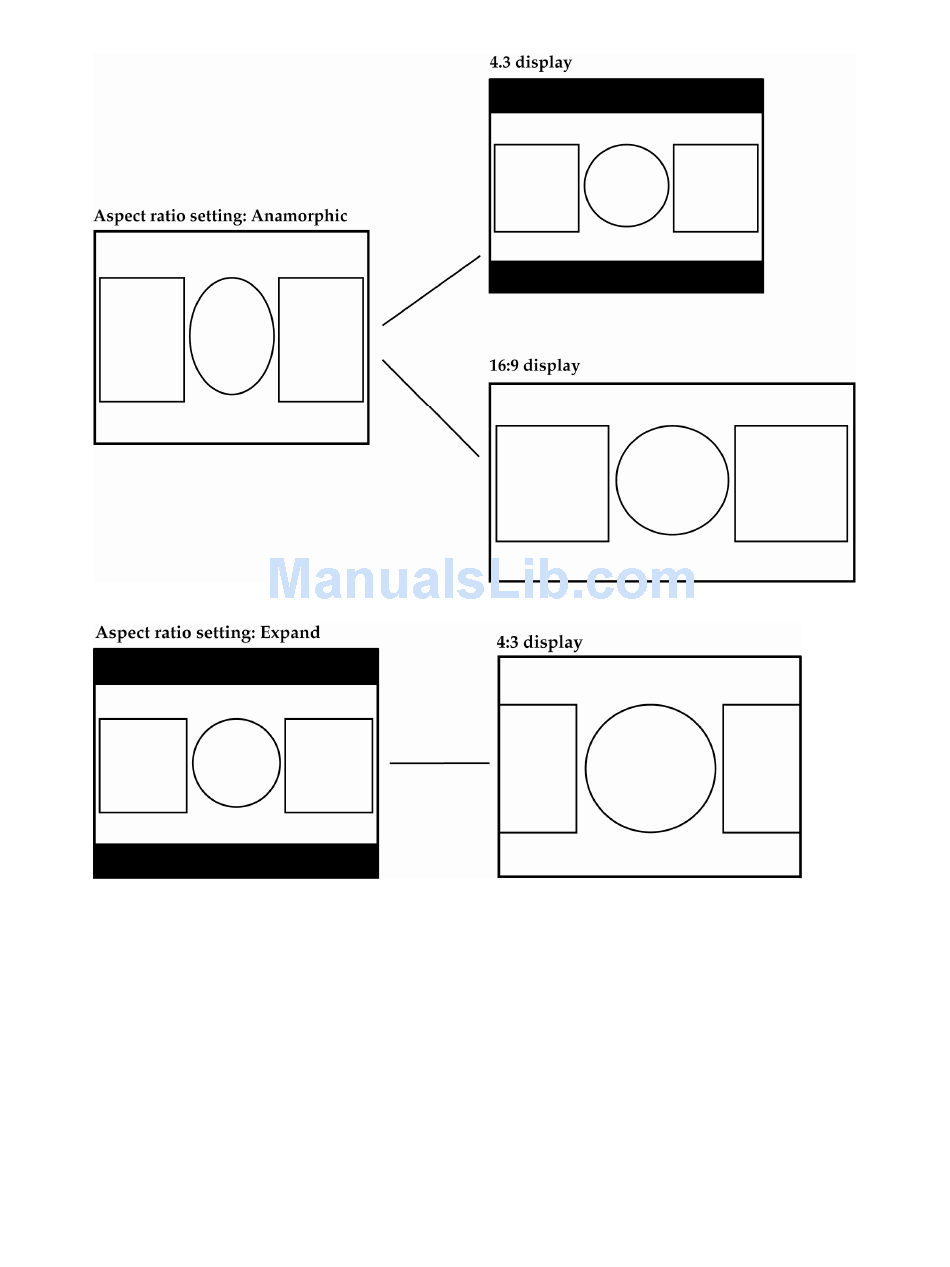

Example 3

Example 4

Horizontal Tracking selects the amount of tracking on the horizontal sync to prevent image bending

(hooking) along the top of the video image. Various settings are available to compensate for different

quality input signals:

Very Fast:

Fast:

Normal:

Slow:

Reset Input resets all input settings to factory default (for the current input only).

For poor quality video signals, such as from a VCR

For normal quality video signals, such as from a TV

For good quality video signals, such as from a DVD player

For high quality video signals, such as broadcast video

IN1402 User's Manual
