CamiFlex Base Unit – Head Unit
4.2 Head Unit – Pinout Connectors
4.2.1 Head Unit – Remote/USB/LANC connections

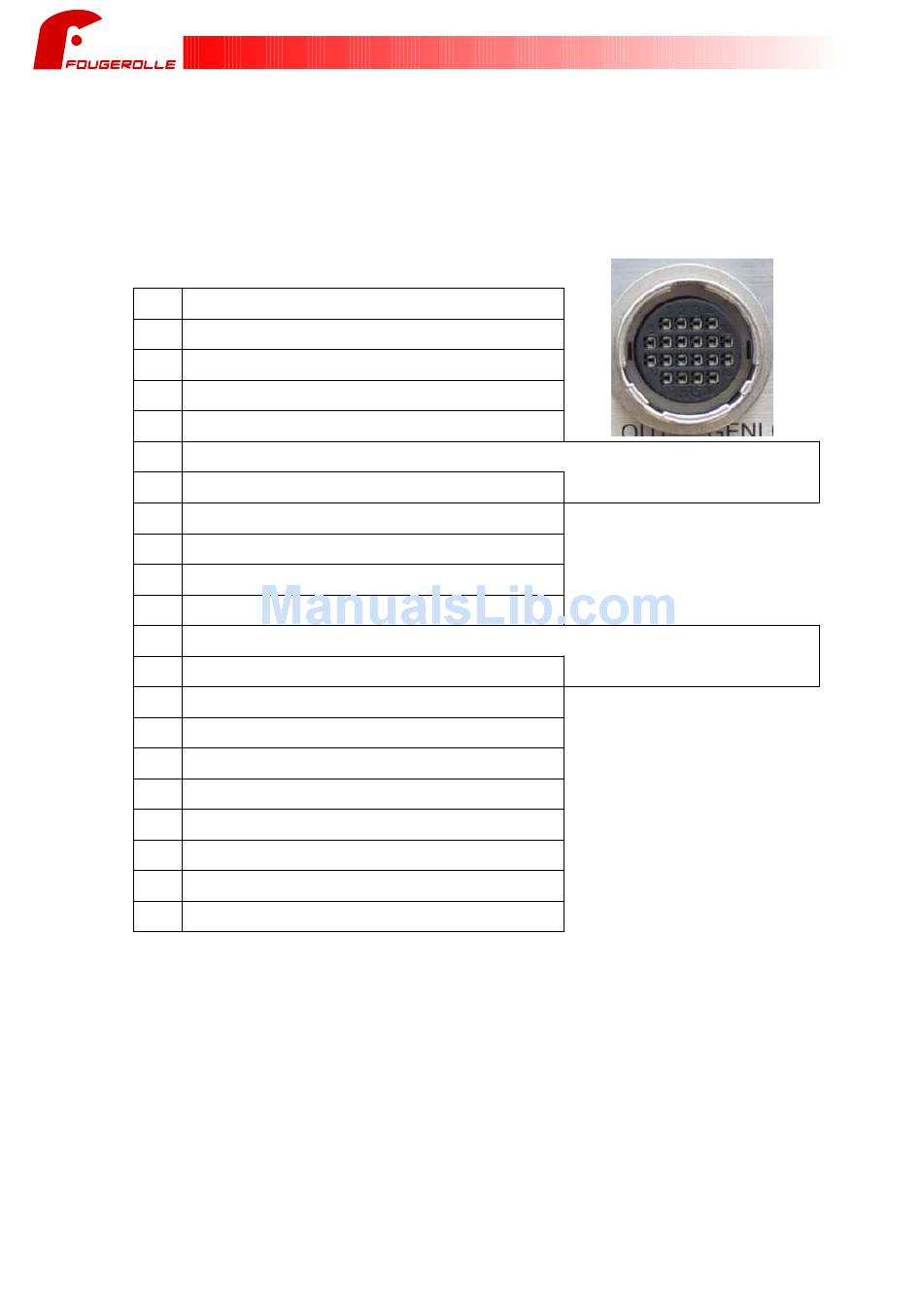

Pin Hirose 20p-F – Remote
1
IN : -
2
IN : RS1_232_RX RS1_422_RX+
3
OUT : RS1_232_TX RS1_422_TX-
4
OUT : -
5
IN : GND or No connection
6
Ground
7
Ground
8
Ground
9
OUT : RS3_SID1
10 IN : RS3_SID2
11 IN : GND or No connection
12 LANC_Power
13 Ground
14 Ground
15 OUT : RS3_RM/CTL
16 LANC
17 USB GND
18 USB VCC
19 USB Data +
20 USB Data -
RS1_422_RX-
RS1_422_TX+
-20-
RS-232: short-circuit to GND
configuration for RS1
RS-232: short-circuit to GND
configuration for RS2
