CamiFlex Base Unit – Head Unit

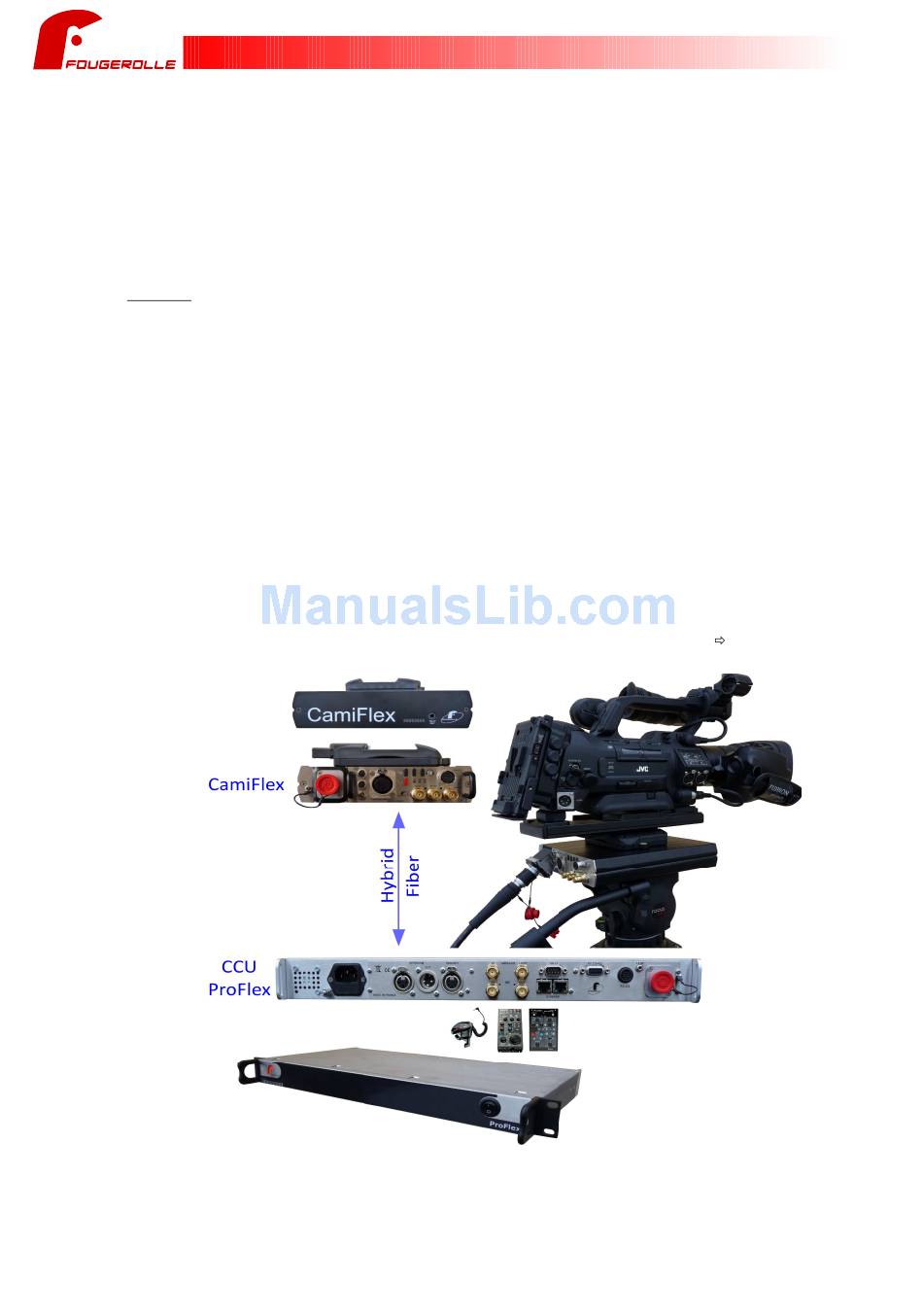

1.7 Base Unit – Head Unit
The FG-CAM equipment (also refered as Camiflex in this document) can extend your camera over single mode
hybrid fiber up to 200m (for higher distances, please contact us). It is composed of a base unit located on the
Camera Control Unit (CCU) side, while the Head unit is co-located with the camera.
The Head Unit can be mounted either between the tripod and the camera using a cartoni quick release set option,
or between the camera and its battery using the Vlock docking option.
Compatible with all JVC cameras, this product supports multiple data communication (TTL Serie, RS232, RS422,
LANC) for remote control.
Features:
• 1 x 3G/HD SDI from Head to Base unit
• 1 x 3G/HD SDI from Base to Head unit
• 1 x Genlock from Base to Head unit
• 2 x Tally (Preview / On Air ) integrated on the front of the Head Unit, plus external Tally output via a jack
connector
• 1 x RS-232 / RS-422 configurable + Remote Power: remote 1
• 1 x USB/Ethernet: remote 2 (/U option)
• 1 x RS-232 (TTL remote 3) + Remote Power
• 1 x LANC (remote 4) + Remote Power
• 1 x DC OUT 13.2V to power the camera (up to 40 watts @ 200 meters, contact us if more output power is
required)
• 1 x Single mode hybrid fiber connector
• 1 x Intercom link
• 1 x Microphone/headphone, configurable headset levels thanks to push button on Head Unit
• 1 x DC IN from +8V to +24V for local FG-CAM powered locally (allows to use Tactical Fiber up to 10Km
distance)
Warning: power supply to remote controllers is available directly from the RS connector
be careful to not
connect directly the RS port to a computer (See connector PINOUT for details) on CCU side
-6-
