CamiFlex Base Unit – Head Unit

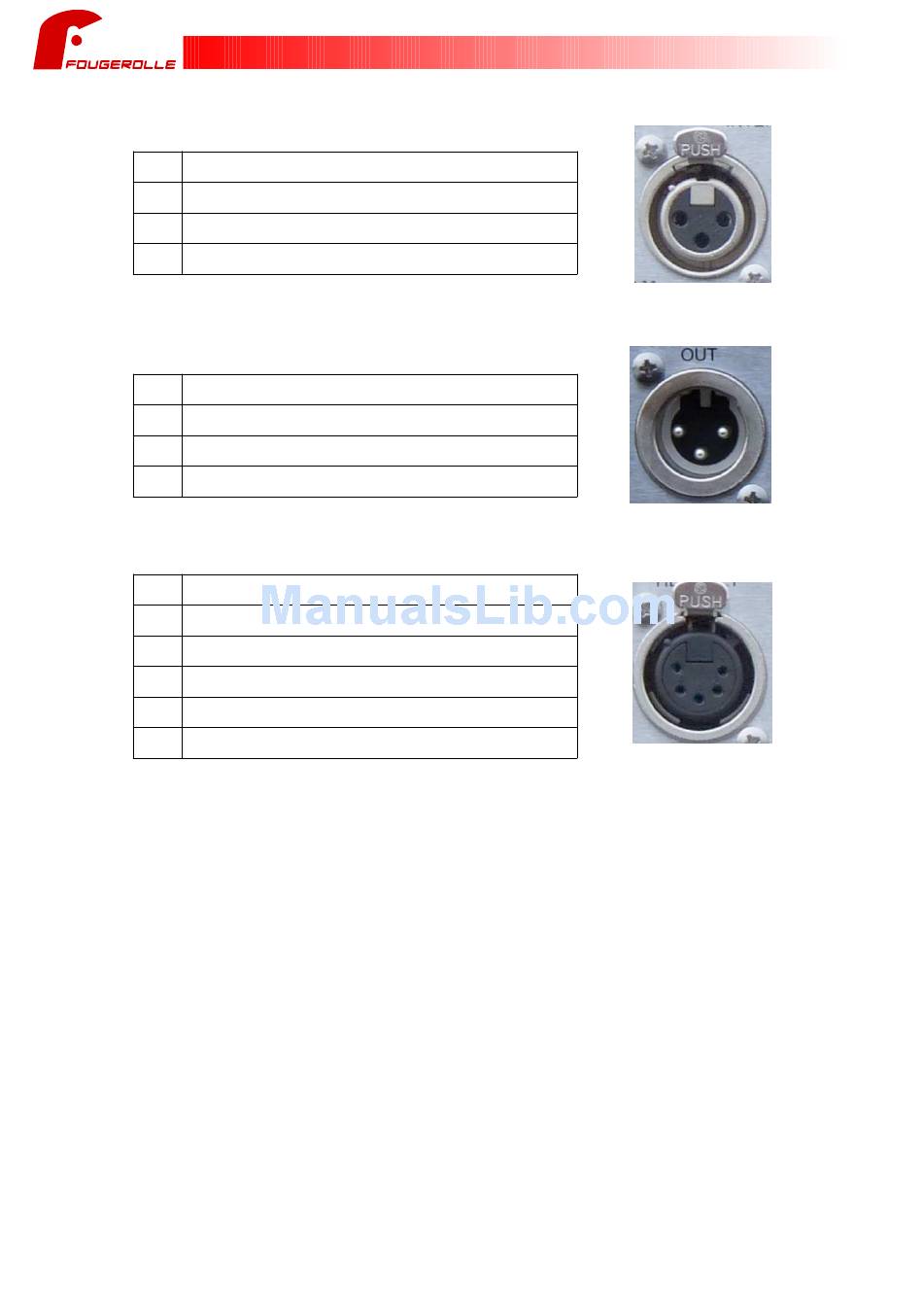

4.1.6 Base Unit – Intercom IN connection
Standard XLR 3p connection:
Pin XLR 3p-F – Intercom IN (Line level)
1
GND
2
IN+
3
IN-
4.1.7 Base Unit – Intercom OUT connection
Standard XLR 3p connection:
Pin XLR 3p-M – Intercom OUT (Line level)
1
GND
2
OUT+
3
OUT-
4.1.8 Base Unit – Headset IN/OUT connection
Pin XLR 5p-F – Headset IN/OUT (Line level)
1
GND
2
OUT+
3
OUT-
4
IN+
5
IN-
-19-
