CamiFlex Base Unit – Head Unit

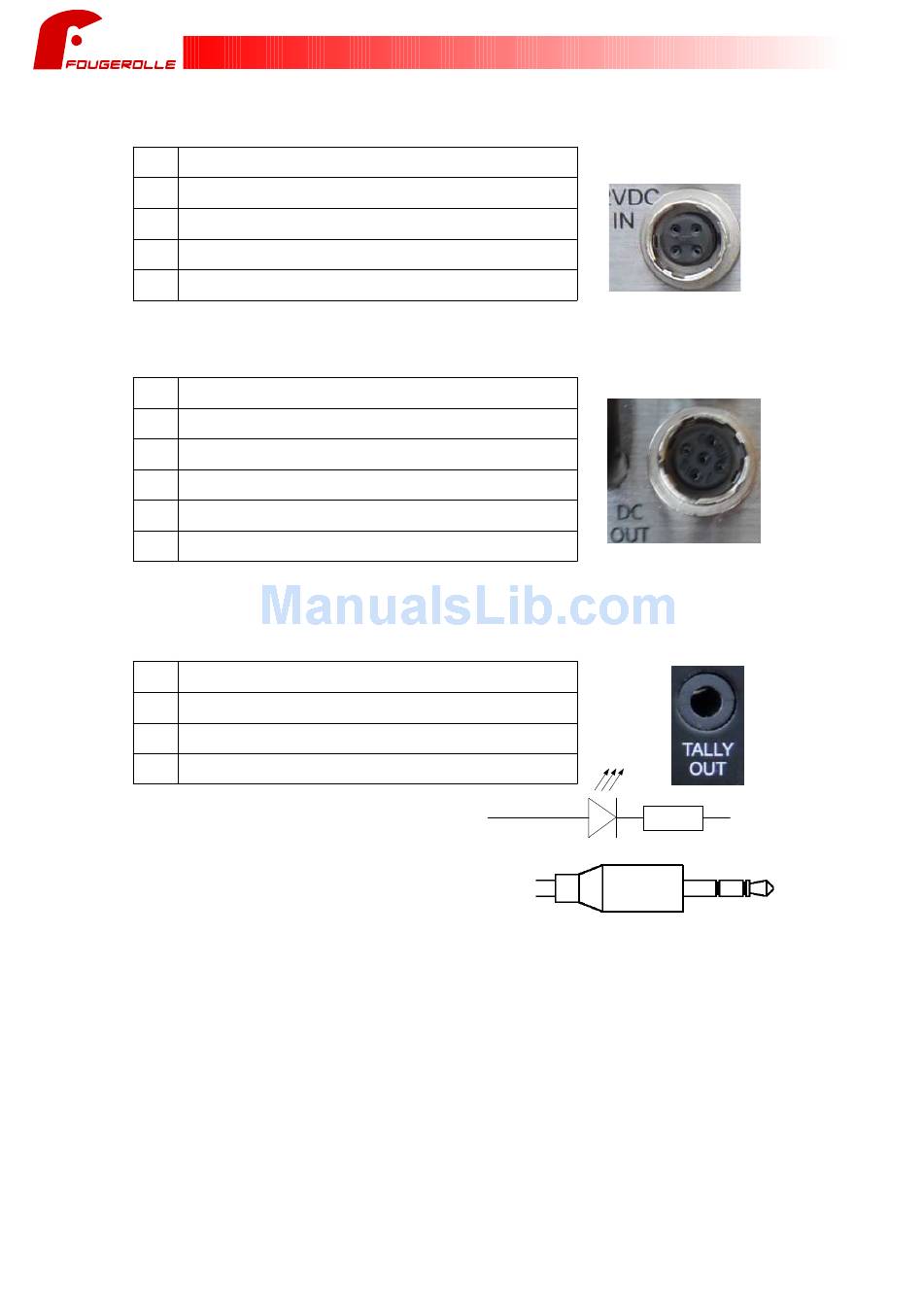

4.2.4 Head Unit – DC IN connection
Pin Hirose 4p-F – DC IN
1 Ground
2 Ground
3 From +8V to +24V IN
4 From +8V to +24V IN
4.2.5 Head Unit – DC OUT for Camera connection
Pin Hirose 5p-F – DC OUT
1 GND
2 GND
3 +12V or +13.2V
4 +12V or +13.2V
Pin5 (*)
5
(*) Pin5 not connected:
(*) Pin5 connected to GND: Vout=+13.2V
4.2.6 Head Unit – external Tally connection in front of Head Unit
Pin Jack 3.5mm – external Tally
1 GND (not used)
2 GPO (grounded when turn ON LED)
3 +5V out (protected with Fuse)
Recommended schematics:
Max current: 100mA
R depend on LED specification
(*)
(*)
Vout=+12V
+5V out
-22-
External power
GPO
R
1 2 3
