LOGIQ 7 Quick Guide

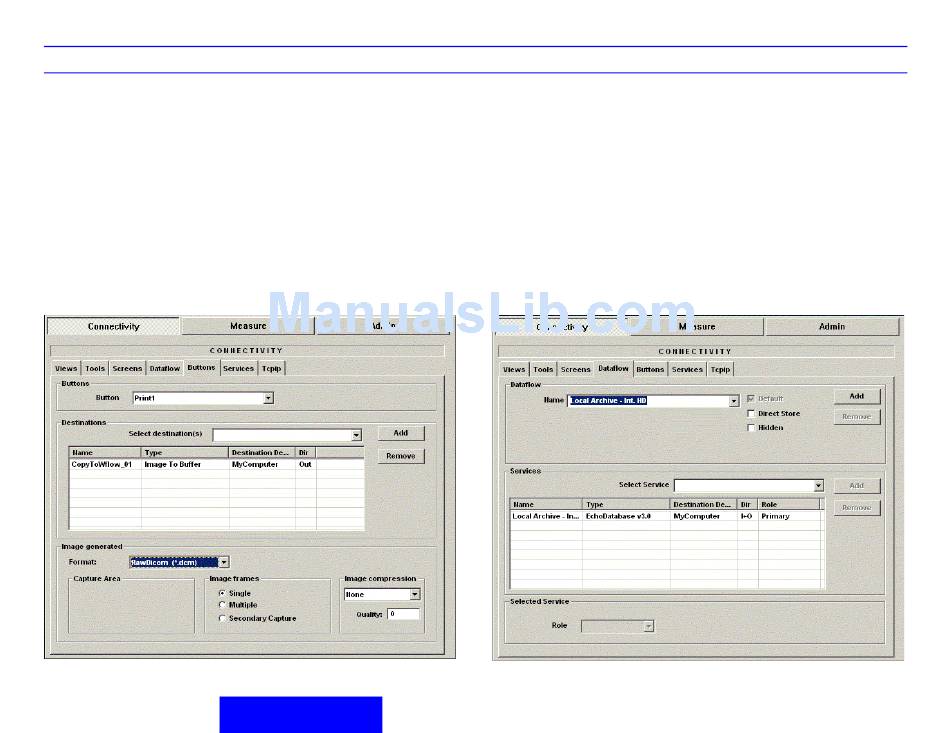

Buttons
You can assign print buttons (P1-P4) to a device or
to a dataflow.
NOTE: You can configure each print key to multiple
output devices/workflows.
Image/ Patient Management
Direction 2291859-100 Rev. 1
Dataflow
Creates a Dataflow, ('WL-LA-DServ -- Worklist,
Local Archive, DICOM Server, for example).
1. Name the Dataflow (select from pull-down
menu or add a new dataflow).
2. Configure the flow in the Services section of the
screen. Select the Service from the pull-down
menu and press Add.
and Connectivity
NOTE: Remember to specify each service Role as
Primary or Secondary. The primary service
specifies what always happens first to incoming or
outgoing data. Only one primary role is available.
1
2
21
