LOGIQ 7 Quick Guide

System Power

Power On
To connect the system to the electrical supply:
1. Ensure that the wall outlet is of the appropriate
type.
1
a b
a

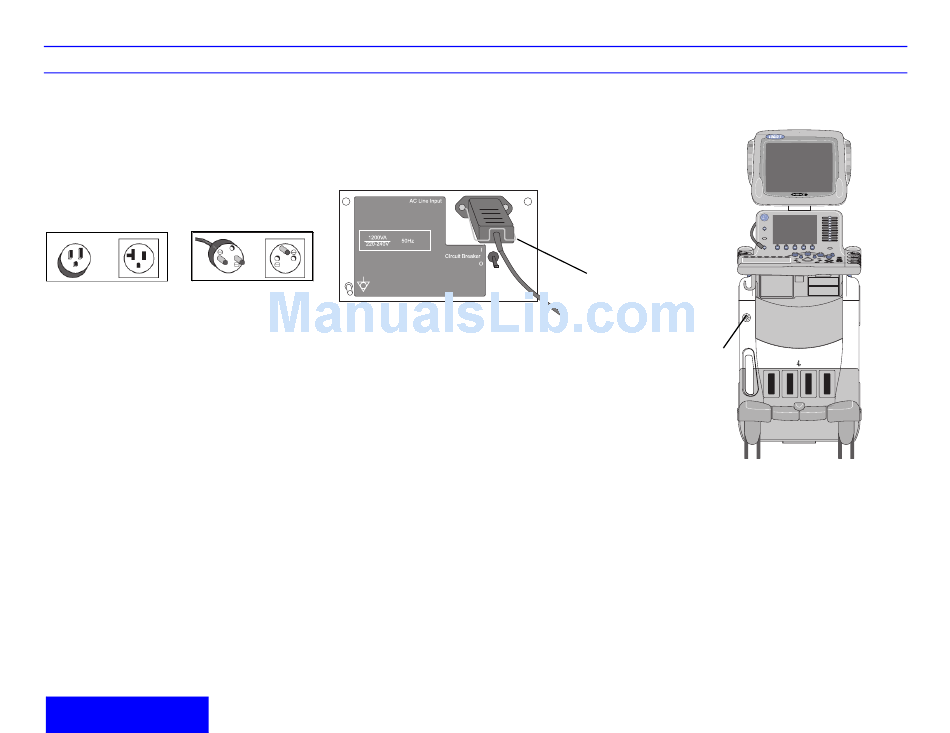

Figure 1-1. Example Plug and Outlet
Configurations
1. 100-120 VAC, 1200 VA
a, b Plug and Outlet Configuration
2. 220-240 VAC, 1200 VA
a, b Plug and Outlet Configuration
2. Ensure that the power switch is turned off.
Preparing for an Exam
Direction 2291859-100 Rev. 1
3. Unwrap the power cable. Make sure to allow
sufficient slack in the cable so that the plug is
not pulled out of the wall if the system is moved
slightly.
4. Attach the power plug to the system and secure
it in place by using the retaining clamp.
2
b
Figure 1-2. Power Plug
a. Retaining clamp for power plug
CAUTION: Ensure that the retaining clamp for the
power plug is fixed firmly.
Use caution to ensure that the power cable does
not disconnect during system use. If the system is
accidentally unplugged, data may be lost.
Press the Power switch to turn the power on. The
circuit breaker must also be in the on position.
a
a
Figure 1-3. Power Switch Location
a. Power Switch Location
1
