LOGIQ 7 Quick Guide

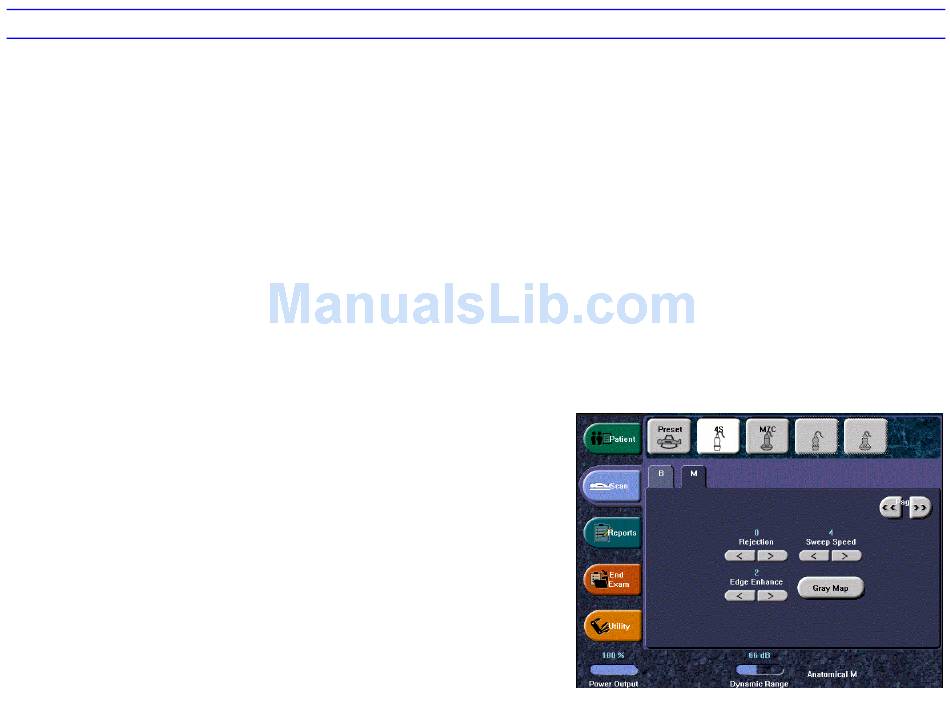

B/M-Mode Image Optimize (continued)
Anatomical M Mode
Allows you to rotate or move the M line in order to
image difficult-to-reach anatomy.
Sweep Speed
Changes the speed at which the timeline is swept.
Full Timeline
Expands display to full timeline display.
Display Format
Changes the horizontal/vertical display layout
between B-Mode and M-Mode.

B-Mode Control Panel Controls

Auto Optimize
Automatic Tissue Optimization optimizes the image
based upon a specified Region of Interest (ROI) or
anatomy within the display.
Zoom
Magnifies a zoom region of interest, which is
magnified to approximately the size of a full-sized
image. An un-zoomed reference image is displayed
adjacent to the zoom window. The system adjusts
all imaging parameters accordingly. Press to
activate/deactivate; rotate to increase/decrease
zoom factor. Use the Trackball to position the
Zoom ROI.
Direction 2291859-100 Rev. 1
Reverse
Flips the image left/right. The GE symbol flips
accordingly.
Multi Image
Press L to activate Multi Image; press R/L to toggle
between live image.

B/M Mode Scanning Hints

Auto Optimize. Improves imaging performance
while reducing optimization time.
Coded Harmonics. Enhances near field resolution
for improved small parts and OB/GYN imaging as
well as far field penetration.
B Flow. Provides a more intuitive
representation of non-quantitative
hemodynamics in vascular
structure.
Frequency. Changes system parameters to best
optimize for a particular patient type.
Maps. There is an inter-dependency between gray
maps, gain, and dynamic range. If you change a
map, revisit gain and dynamic range settings.
Dynamic Range. Affects the amount of gray scale
information displayed.
Edge Enhance. Better delineates the amount of
border sharpness.
Frame Average. Smooths the image by averaging
frames. Affects the amount of speckle reduction.
8
