This guide serves the following

ComNet Model Numbers:

CWFE2SCM2

CWFE2SCS2

QUICK START GUIDE

CWFE2SC(M,S)2

Commercial Grade 10/100 Mbps Ethernet

2 Port Electrical-to-Optical Media Converter

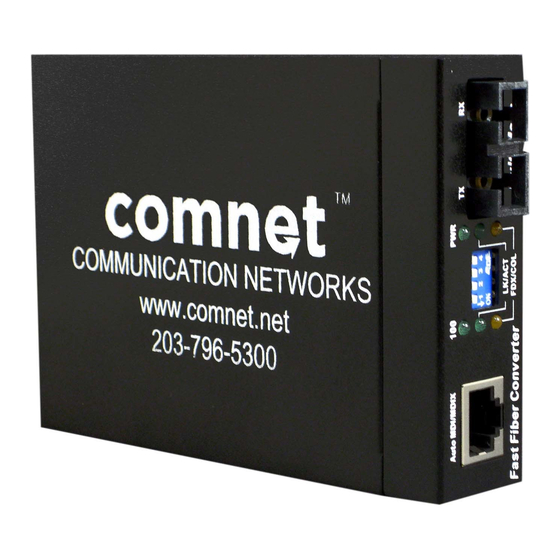

The ComNet ValueLine CWFE2SC(M,S)2 Ethernet 2-port media converters are designed

to transmit and receive a single channel of 10/100 Mbps data over multimode or single

mode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps

Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps

Ethernet rate. These media converters are commercial grade for light industrial use.

Rev. 11.17.17

Need help?

Do you have a question about the CWFE2SCM2 and is the answer not in the manual?

Page 1 Commercial Grade 10/100 Mbps Ethernet 2 Port Electrical-to-Optical Media Converter The ComNet ValueLine CWFE2SC(M,S)2 Ethernet 2-port media converters are designed This guide serves the following to transmit and receive a single channel of 10/100 Mbps data over multimode or single ComNet Model Numbers: mode optical fiber.
Page 2: Front Panel
QUICK START GUIDE CWFE2SC(M,S)2 Front Panel The Front Panel of the ComNet CWFE2SC(M)(S)2 consists of one RJ45 Port (Auto MDI/MDIX), 6 LED Indicators (UTP 100, LK/ACT, FDX/COL, Fiber LK/ACT, FDX/COL and PWR) and one fiber 100Base-FX Port. Fast Fiber Converter Module - SC Model LED Indicators There are 6 diagnostic LEDs located on the Front panel of the media converter.
Page 3: Rear Panel
QUICK START GUIDE CWFE2SC(M,S)2 DIP-switch The DIP-switch is used to configure operation mode for LLF (Link Lost Forwarding) and operation mode for UTP/Fiber port. The default value of DIP switch is OFF. SW No Status Description UTP 100 Mbps Full Duplex Mode UTP Auto-Negotiate Fiber in Half Duplex Fiber in Full Duplex...
Page 4 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2017 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC.
