Installation; Mechanical Dimensions, Motor Mounting; Mechanical Dimensions, Stand Alone Mounting - Danfoss VLT Decentral FCD 300 Operating Instructions Manual

VLT® Decentral FCD

2 Installation

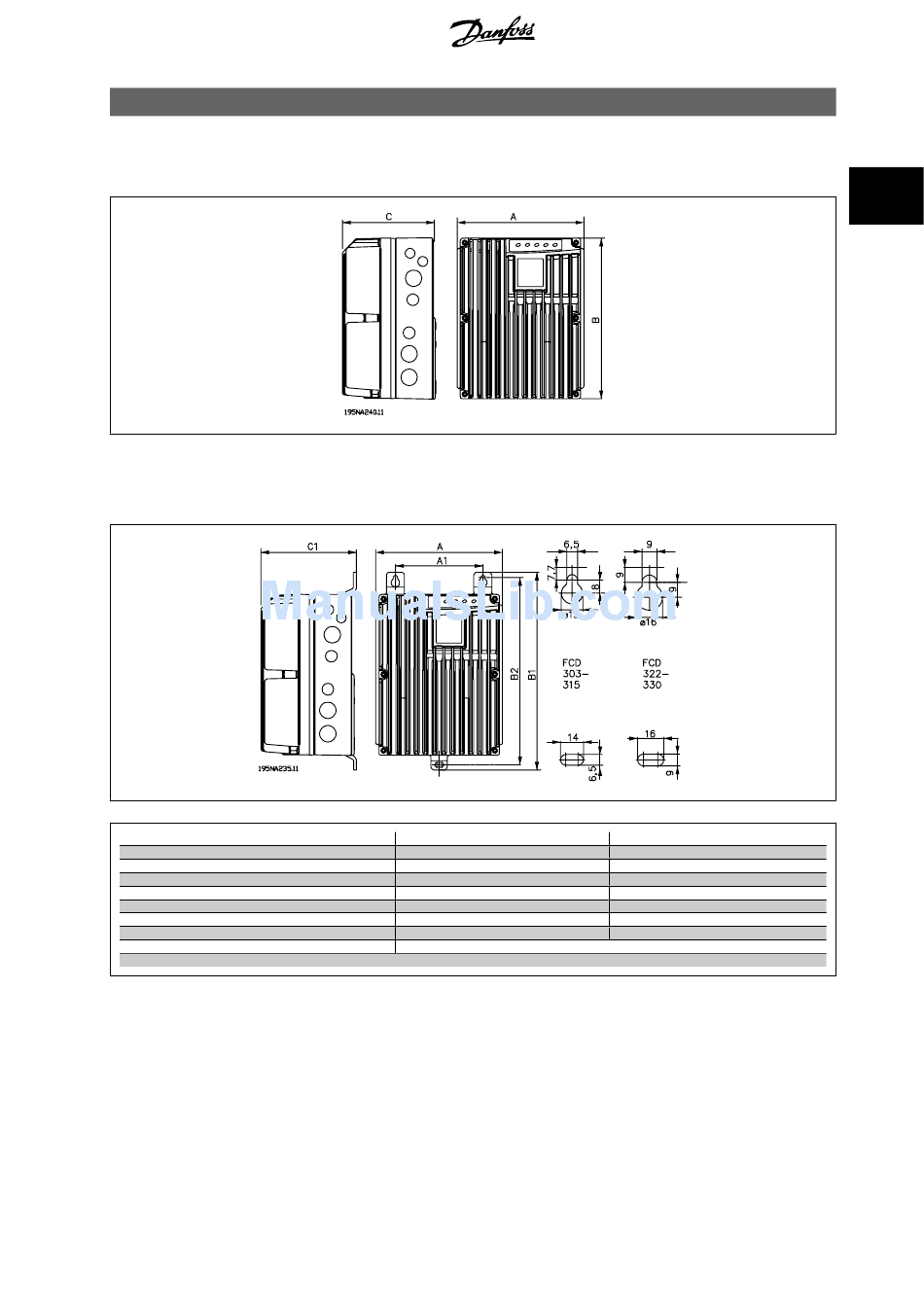

2.1.1 Mechanical Dimensions, Motor Mounting

2.1.2 Mechanical Dimensions, Stand Alone Mounting

Mechanical dimensions in mm
A
A1
B
B1
B2
C
C1
Cable Gland sizes
Space for cable inlets and service switch handle 100-150 mm
FCD 303-315
192
133
244
300
284
142
145
M16, M20, M25 x 1.5 mm
