VLT® Decentral FCD

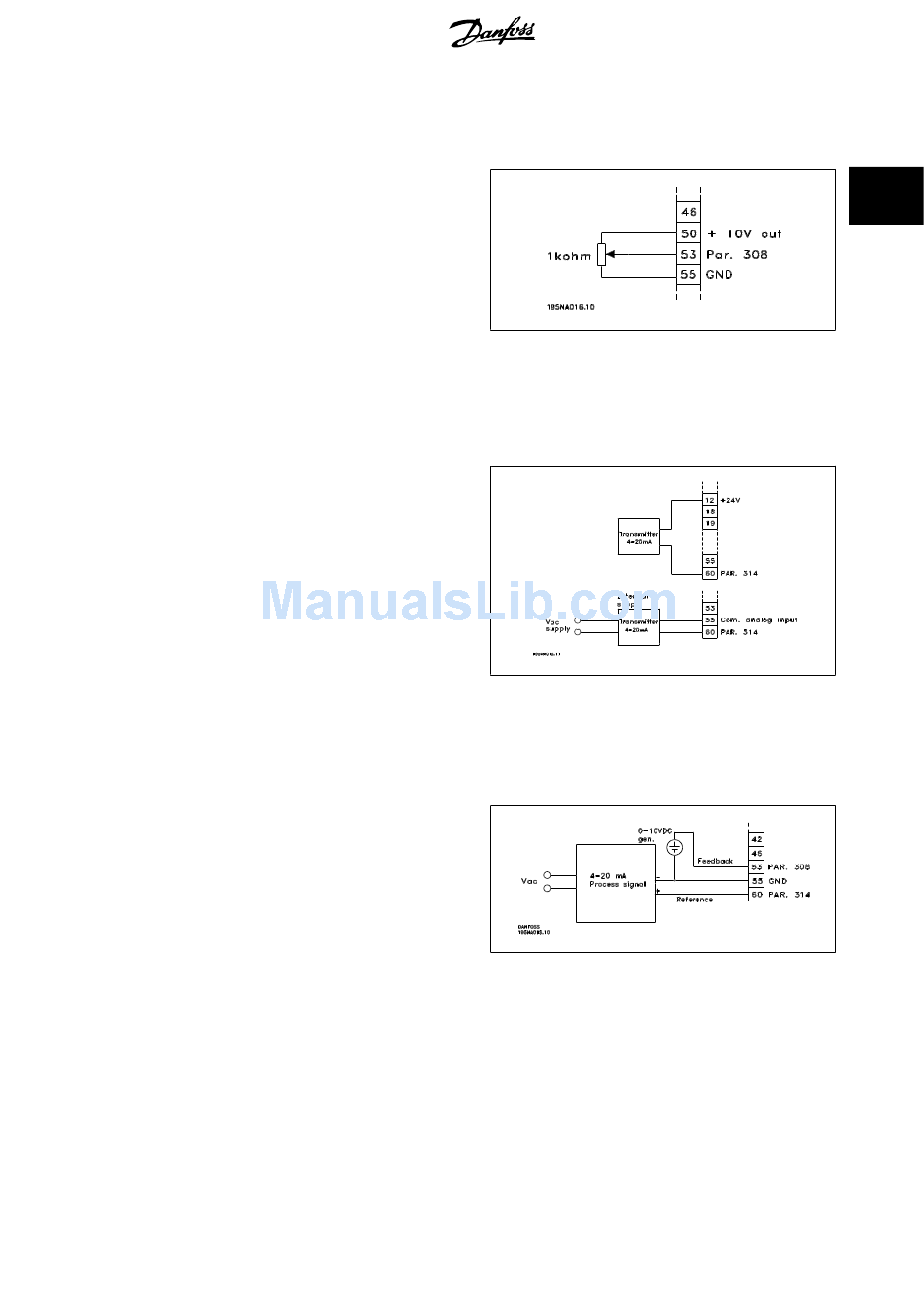

2.6.4 Potentiometer Reference
Voltage reference via a potentiometer.
Par. 308 Analog input = Reference
Par. 309 Terminal 53, min. scaling
Terminal 53, max. scaling
Par. 310
2.6.5 Connection of a 2-Wire Transmitter
Connection of a 2-wire transmitter as feedback to terminal 60.
Analog input Feedback
Par. 314 =
Terminal 60, min. scaling
Par. 315
Terminal 60, max. scaling
Par. 316
2.6.6 4-20 mA Reference
4-20 mA reference on terminal 60 and speed feedback signal on terminal 53.
Configuration Speed closed loop
Par. 100 =
Par. 308 Analog input = Feedback
Terminal 53, min. scaling
Par. 309
Terminal 53, max. scaling
Par. 310
Par. 314 Analog input = Reference
Par. 309 Terminal 60, min. scaling
Teminal 60, max. scaling
Par. 310
[1]
= 0 Volt
= 10 Volt
[2]
= 4 mA
= 20 mA
[1]
[2]
= 0 Volt
= 10 Volt
[1]
= 4 mA
= 20 mA
MG.04.B8.02 - VLT is a registered Danfoss trademark
2 Installation
