2 Installation

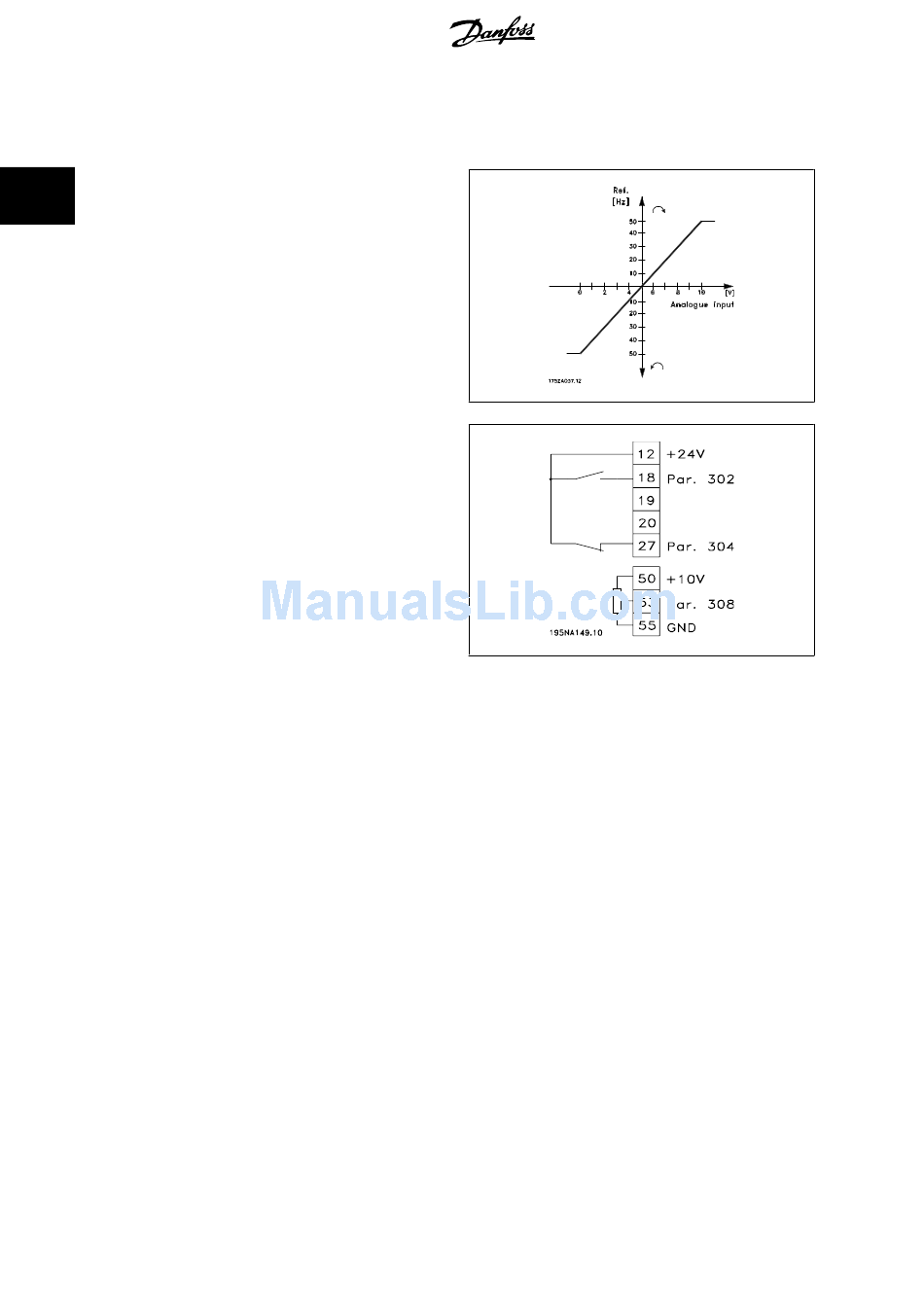

2.6.7 50 Hz Anti-Clockwise to 50 Hz Clockwise
With internally supplied potentiometer.
Par. 100
Configuration
2
Par. 200
Output frequency range
[1]
Reference range
Par. 203
Min. reference
Par. 204
Max. reference
Par. 205
Par. 302
Digital input
Digital input
Par. 304
Analogue input
Par. 308
Par. 309
Terminal 53, min. scaling
Par. 310
Terminal 53, max. scaling
28
=
Speed regulation open loop
[0]
=
Both directions, 0-132 Hz
Min. ref. - Max. ref.
=
[0]
= - 50 Hz
= 50 Hz
=
Start
[7]
Coasting stop inverted
=
[2]
Reference
=
[1]
= 0 Volt.
= 10 Volt.
MG.04.B8.02 - VLT is a registered Danfoss trademark
