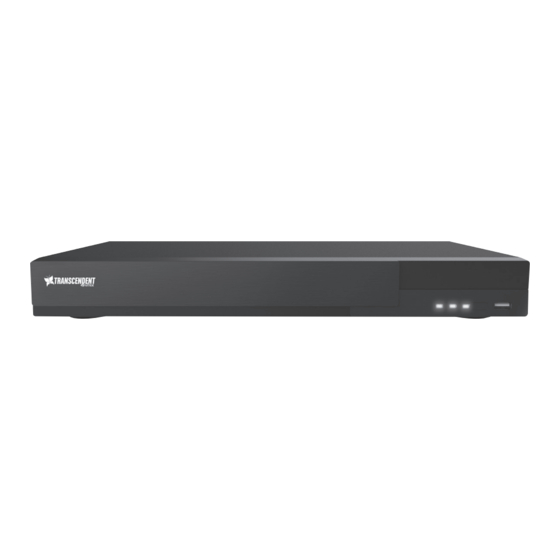

Vitek VT-TR5HA1620 Manual

Transcendent series 4, 8, or 16 channel 5.0 megapixel 5-in-1 hd-tvi / ahd / cvi / cvbs / ip digital video recorders, vt-tr5ha series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FEATURES:
• 4, 8, or 16 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs Supporting up to 5
MegaPixel + IP Camera Support with ability to substitute up to 8 (VT-TR5HA820/
VT-TR5HA1620) 4 (VT-TR5HA410) HDA inputs for IP cameras
• 1-Channel IP Camera Support up to 3 MegaPixel (VT-TR5HA410) / 4-Channel IP Camera
Support up to 4 MegaPixel (VT-TR5HA820 / VT-TR5HA1620)
• Live View: TVI/AHD: 5MP @ 10fps; 4MP, 3MP, 1080P, 720P, WD1 @ 30fps / CVI:
1080P, 720P @ 30fps
• Recording: 5MP: 10fps / 4MP/3MP: 15fps / 4MP lite/1080P/720P/WD1: 30fps
• HDMI (2560×1440,1920×1080,1280×1024), VGA (1080p), and BNC Spot Video
Output (VT-TR5HA410 / VT-TR5HA820) / HDMI (4K - 3840×2160, 1920x1080,
1280×1024), VGA (1080p) / BNC Spot Video Output (VT-TR5HA1620)
• Simple plug and play, point-to-point connection from camera to DVR
• H.264 Compression
• 2-Way Audio
• PTZ Control over RS-485 / Control over Coax (CoC)
• 4 Alarm inputs / 1 Alarm Output
• Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• 1 Internal SATA2/SATA3 HDD Slot supporting up to 8TB (1 x 8TB HDD)
(VT-TR5HA410) / 2 Internal SATA2/SATA3 HDD Slot supporting up to 16TB (2 x 8TB
HDD) (VT-TR5HA820 / VT-TR5HA1620)
• Applications for iOS & Android
• Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Central Management Software Included
• Supports both Dynamic and Static IP Addresses
• Control locally via USB Mouse or IR Remote control

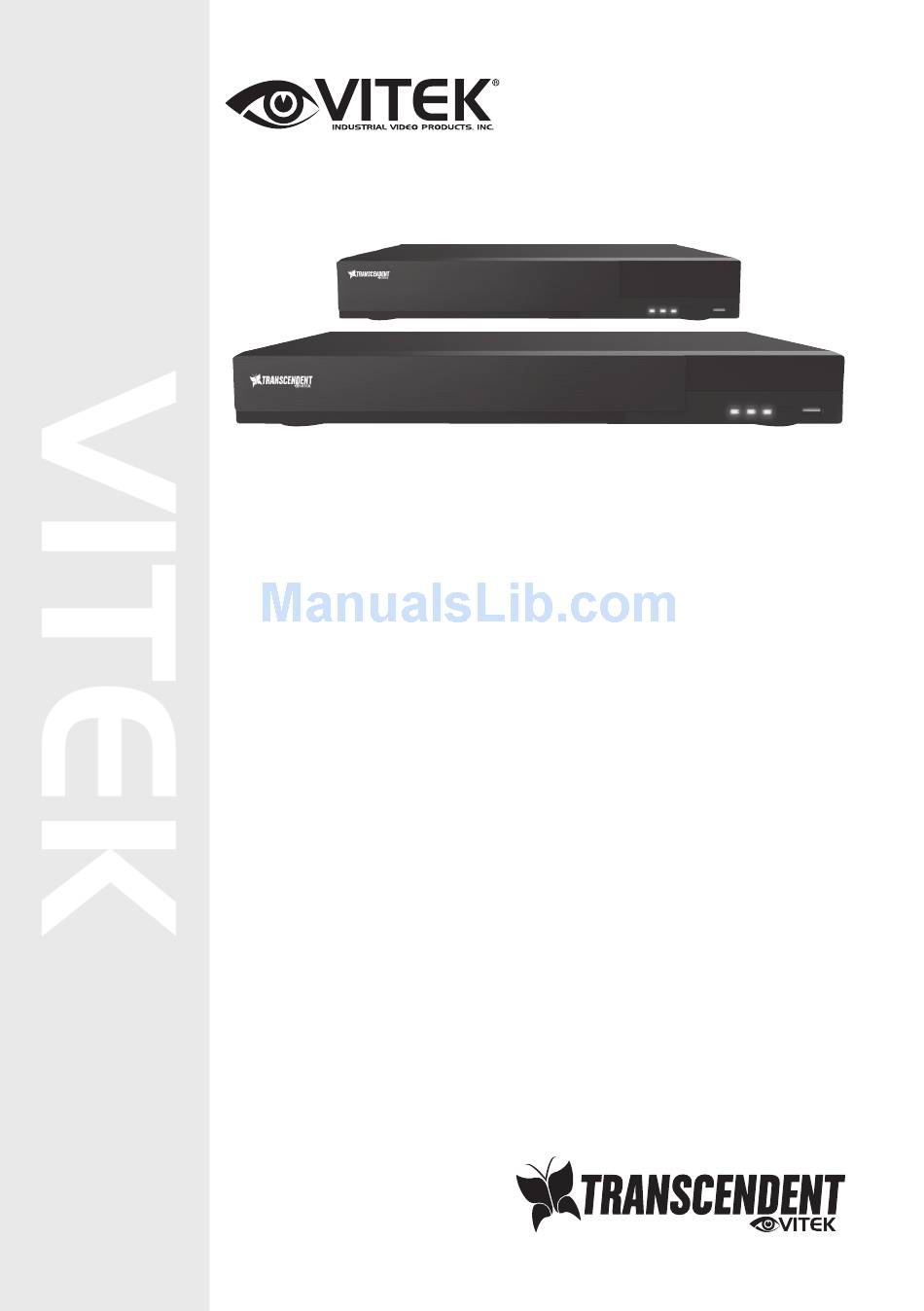

VT-TR5HA Series
Transcendent Series 4, 8, or 16
Channel 5.0 MegaPixel 5-In-1
HD-TVI / AHD / CVI / CVBS / IP

Digital Video Recorders

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-TR5HA1620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek VT-TR5HA1620

Summary of Contents for Vitek VT-TR5HA1620

  • Page 1: Digital Video Recorders

    • HDMI (2560×1440,1920×1080,1280×1024), VGA (1080p), and BNC Spot Video Output (VT-TR5HA410 / VT-TR5HA820) / HDMI (4K - 3840×2160, 1920x1080, 1280×1024), VGA (1080p) / BNC Spot Video Output (VT-TR5HA1620) • Simple plug and play, point-to-point connection from camera to DVR • H.264 Compression •...
  • Page 2 Transcendent VT-TR5HA DVR Series Notes Please read this user manual carefully to ensure that you can use the device correctly and safely. There may be several technically incorrect places or printing errors in this manual. The updates will be added into the new version of this manual. The contents of this manual are subject to change without notice.

  • Page 3: Table Of Contents

    Transcendent VT-TR5HA DVR Series Contents Contents ............................2 Introduction ........................5 1.1 Summary ........................5 1.2 Features .......................... 5 1.3 Front Panel Descriptions ....................8 1.4 Rear Panel Descriptions ....................8 1.5 Connections ........................11 Basic Operation Guide ....................13 2.1 Startup &...
  • Page 4 Transcendent VT-TR5HA DVR Series 6.3 Cruise Setting ....................... 45 6.4 PTZ Protocol Setting ....................46 Record & Disk Management ..................48 7.1 Record Configuration ....................48 7.1.1 Mode Configuration ..................48 7.1.2 Advanced Configuration ................... 50 7.2 Encode Parameters Setting ................... 50 7.3 Schedule Setting ......................
  • Page 5 Transcendent VT-TR5HA DVR Series 9.5.5 Push Message ....................77 9.6 Manual Alarm ....................... 78 9.7 View Alarm Status ....................... 78 Account & Permission Management ................80 10.1 Account Management ....................80 10.1.1 Add User ......................80 10.1.2 Edit User ......................81 10.2 User Login &...

  • Page 6: Introduction

    Transcendent VT-TR5HA DVR Series 1 Introduction Summary Based on the most advanced SOC technology and embedded system in the field, this series of DVR adopts the new designed human interface and supports smart management of analog cameras and IP cameras and the recorded search by time slice. These series of DVR’s which are powerful and easy to use are provided with an excellent image quality and stability.
  • Page 7 Transcendent VT-TR5HA DVR Series Supports image and lens adjustment (only available for some cameras) Supports quick camera adding in the camera window of the live preview interface The live camera sequence of the web client will keep consistent with that of the DVR after adjusting the live camera sequence of the DVR, but the live camera sequence of the DVR will not be changed if that of the web client is changed Disk Management...
  • Page 8 Transcendent VT-TR5HA DVR Series intelligence alarm and exception alarms including IP address conflict alarm, disk IO error alarm, disk full alarm, no disk alarm, illegal access alarm, network disconnection alarm, IPC offline alarm and so on, alarm trigger configuration supportable Supports IPC offline alarm trigger configuration of PTZ, snap, pop-up video, etc.

  • Page 9: Front Panel Descriptions

    Transcendent VT-TR5HA DVR Series Press and hold the right mouse button for 5 seconds in any interface to switch the output to VGA and the DVR will display the video at the lowest resolution which the DVR supports Front Panel Descriptions The following descriptions are for reference only.
  • Page 10 Transcendent VT-TR5HA DVR Series Name Descriptions AUDIO IN Audio input ALARM IN Alarm inputs for connecting sensors ALARM OUT Relay output; connect to external alarm Grounding VIDEO IN 4 CH video inputs AUDIO OUT Audio output CVBS CVBS video output; connect to monitor Connect to monitor HDMI Connect to high definition display device...
  • Page 11 Transcendent VT-TR5HA DVR Series Name Descriptions CVBS CVBS video output; connect to monitor ALARM IN Alarm inputs for connecting sensors Grounding AUDIO OUT Audio output AUDIO IN Audio input ALARM OUT Relay output; connect to external alarm VIDEO IN 8 CH video inputs HDMI Connect to high definition display device Connect to monitor...

  • Page 12: Connections

    Transcendent VT-TR5HA DVR Series Connections Video Connections Video Output: Supports VGA/HDMI video output. Connect to a monitor through these video output interfaces simultaneously or independently. Audio Connections Audio Input: Connect to microphone, pickup, etc. Audio Output: Connect to headphones, amplifier etc. Alarm Connections Some models may support this function.
  • Page 13 Transcendent VT-TR5HA DVR Series Alarm Output: The way to connect alarm output device: Pull out the green terminal blocks and loosen the screws in the alarm-out port. Then insert the signal wires of the alarm output devices into the port of NO and COM separately. Finally, tighten the screws.

  • Page 14: Basic Operation Guide

    Transcendent VT-TR5HA DVR Series 2 Basic Operation Guide Startup & Shutdown Please make sure all the connections are done properly before powering the unit. Proper startup and shutdown are crucial to extending the life of your device. 2.1.1 Startup Connect the display device to the VGA/HDMI interface of the DVR. Connect the mouse and power.
  • Page 15 Transcendent VT-TR5HA DVR Series Record Button To start recording -/-- /0-9 Input number or choose camera Fn1 Button Not used Multi Button To choose multi screen display mode Next Button To switch the live image To go to sequence view mode Audio To enable audio output in live mode Spot...

  • Page 16: Mouse Control

    Transcendent VT-TR5HA DVR Series Button Function Record manually Search To enter search mode MEUN To enter menu Exit To exit the current interface ENTER To confirm the choice or setup Direction button To move cursor in setup ZOOM To zoom in Not used To control playback.

  • Page 17: Common Button Operation

    Transcendent VT-TR5HA DVR Series The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters. The introductions of keys on the input boxes are shown below. Button Meaning Button...

  • Page 18: Wizard & Main Interface

    Transcendent VT-TR5HA DVR Series 3 Wizard & Main Interface Startup Wizard The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons ( : no disk;...
  • Page 19 Transcendent VT-TR5HA DVR Series Network Settings. Check “Obtain an IP address automatically” and “Obtain DNS automatically” to get the IP address and DNS automatically (the DHCP function of the router in the same LAN should also be enabled), or manually input them. Input the HTTP port, RTSP port and Server port (please see 11.1.2 Port Configuration for details).
  • Page 20 Transcendent VT-TR5HA DVR Series Add Camera. Click “Refresh” to refresh the list of online IP cameras which are in the same local network with the DVR and then click to add the found camera. Click “Add All” to add all the cameras in the list. Click to delete the added camera.
  • Page 21 Transcendent VT-TR5HA DVR Series Disk Settings. You can view the disk number, disk capacity of the DVR and serial number, R&W status of the disk. Click “Format” to format the disk. Click “Next” to continue. Record Settings. Two record modes are available: auto and manual. Auto: Select one auto mode in the interface as shown below and then click “OK”...
  • Page 22 Transcendent VT-TR5HA DVR Series Please check which features that are needed for recording and click “Add”...

  • Page 23: Main Interface

    Transcendent VT-TR5HA DVR Series Manual: Set the “Sensor Record”, “Motion Record” and “Schedule Record” of each camera. Click “OK” to save the settings. See 7.1.1 Mode Configuration for details. Main Interface 3.2.1 Main Interface Introduction The buttons in area 1 are introduced in the table below. Button Meaning Start button.
  • Page 24 Transcendent VT-TR5HA DVR Series Button Meaning Full screen button. Click it to show full screen; click it again to exit the full screen. Screen mode button. Dwell button (see 5.2.2 Quick Sequence View and 5.2.3 Scheme View In Sequence for details).

  • Page 25: Setup Panel

    Transcendent VT-TR5HA DVR Series Icon / Button Meaning Click it to pop up the setup panel, see 3.2.2 Setup Panel for details. Click it to log out the system. Click it and then select “Logout”, “Reboot” or “Shutdown” in the popup window.
  • Page 26 Transcendent VT-TR5HA DVR Series There are some function items on the left side of the camera management interface. Click each item to go to corresponding interface or window. For instance, click “Add Camera” to pop up the window as shown below. Click the main menus on the top of the camera management interface to go to corresponding interfaces.

  • Page 27: Main Functions

    Transcendent VT-TR5HA DVR Series 3.2.3 Main Functions Camera Ø This module covers the functions such as Camera Management (see Chapter 4 Camera Management for details), Image Settings (see 5.3 Preview Image Configuration for details), Motion (see 9.2.1 Motion Configuration for details) and PTZ (see Chapter 6 PTZ for details) and so on.

  • Page 28: Camera Management

    Transcendent VT-TR5HA DVR Series 4 Camera Management Camera Signal Click StartàSettingsàCameraàManage CameraàCamera Signal to go to the interface as shown below. The DVR supports hybrid access of TVI, AHD and CVI high definition cameras. If a TVI high definition camera is connected to the DVR, you should select TVI in the following interface to show the camera image;...

  • Page 29: Add/Edit Camera

    Transcendent VT-TR5HA DVR Series Add/Edit Camera 4.2.1 Add Camera The network of the DVR should be set before adding IP camera (see 11.1.1 TCP/IP Configuration for details). Refer to the pictures below. Click Add Camera in the setup panel or in the top right corner of the preview window to pop up the “Add Camera”...

  • Page 30: Edit Camera

    Transcendent VT-TR5HA DVR Series Quickly Add Ø Check the cameras and then click “Add” to add cameras. Click to edit the camera’s IP address, username and password and so on. Click “Default Password” to set the default username and password of each camera. Add Manually Ø...
  • Page 31 Transcendent VT-TR5HA DVR Series to edit the camera (see Add view the live image of the camera in a popup window. Click camera in 3.1 Startup Wizard for details). Click to delete the IP camera. Click the “Operation” header line and then click “Modify IPC Password” to pop up a window(check the IPCs in the window, set the new password and then click “OK”...

  • Page 32: Live Preview Introduction

    Transcendent VT-TR5HA DVR Series 5 Live Preview Introduction Preview Interface Introduction The connected analog camera will be added automatically in the live preview interface for previewing. You need to add IP cameras manually for previewing (see 4.2.1 Add Camera for details).

  • Page 33: Preview Mode

    Transcendent VT-TR5HA DVR Series Button Menu List Meaning Zoom In Click to go to single channel zoom interface. Click to go to image adjustment interface. Refer to 5.3.5 Image Adjustment for details. Camera Info Click it to view the IP camera information. The single channel zoom interface is as shown below.

  • Page 34: Quick Sequence View

    Transcendent VT-TR5HA DVR Series Add Display Mode Ø Method One: Click “Customize Display Modes” in the above interface and then set the screen mode. Add the cameras and adjust the cameras’ display sequence as required. Click “Save” button under the display mode list and then enter the display mode name in the popup window, click “OK”...

  • Page 35: Scheme View In Sequence

    Transcendent VT-TR5HA DVR Series Go to the live preview interface and then click to pop up a little window. Set the dwell time in the window and then click to view the live group by group according to the camera number of the current screen mode. Double click the sequence view interface to pause the view;...

  • Page 36: Spot View

    Transcendent VT-TR5HA DVR Series Add Scheme Ø Click in area 1 to create a new scheme. Click on the top right corner of the scheme to delete it. Configure Scheme Ø Select a scheme in area 1 and then click the screen mode button on the tool bar to set the screen mode of the scheme.

  • Page 37: Preview Image Configuration

    Transcendent VT-TR5HA DVR Series Preview Image Configuration 5.3.1 OSD Settings Click StartàSettingsàCameraàImageàOSD Settings to go to the interface as shown below. Select the camera, input the camera name (or double click the camera name in the camera list to change the camera name), enable or disable the name and time OSDs (if enabled, drag the red name and time OSDs directly in the image view area to change the OSDs’...

  • Page 38: Mask Settings

    Transcendent VT-TR5HA DVR Series “Advanced” button or in the camera list on the right side of the interface to pop up “Image Adjust” interface and then set the relevant setting items. Please refer to 5.3.5 Image Adjustment for detailed introductions of these items. Click “Default”...

  • Page 39: Water Mark Settings

    Transcendent VT-TR5HA DVR Series 5.3.4 Water Mark Settings Click StartàSettingsàCameraàImageàWater Mark Settings to go to the interface as shown below. Select the camera and enable water mark and then input the water mark information. Click “Apply” to save the settings. 5.3.5 Image Adjustment Go to live preview interface and then click...
  • Page 40 Transcendent VT-TR5HA DVR Series Select the camera and then click “Image Adjustment” to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera’s brightness, contrast, saturation and hue value. Check sharpen, wide dynamic and denoise and then drag the slider to set the value. Click “Default”...
  • Page 41 Transcendent VT-TR5HA DVR Series The parameters and buttons are as follows: Button/Parameter Meaning Click to zoom in/out the image. If manual mode is selected, focus button & “One Key Focus” & “Day/night Focus Mode mode switch autofocus” will be available; if auto mode is selected, the time interval setup will be available.

  • Page 42: Ptz

    Transcendent VT-TR5HA DVR Series 6 PTZ PTZ Control Interface Introduction You can control the dome or PTZ which connects to the camera for PTZ control. Click on the tool bar at the bottom of the live preview window to go to the PTZ control interface as shown below.
  • Page 43 Transcendent VT-TR5HA DVR Series Analog Joystick Control Ø The analog joystick on the left side of the interface provides quick PTZ control. The dome or PTZ will rotate when you drag the analog joystick. The farther you drag the analog joystick from the middle of the image, the faster the dome or PTZ rotates.
  • Page 44 Transcendent VT-TR5HA DVR Series Advanced 3D Control Ø Double click the left button of the mouse on any area of the camera image and then the image size will be doubled and centered on the clicked point. Press and hold the left button of the mouse on any area of the camera image to zoom in the image;...
  • Page 45 Transcendent VT-TR5HA DVR Series Preset Setting Ø Click “Preset” to go to preset operation tab and then click “Add” button to pop up a window as shown below. Select the preset and then input the preset name in the window; finally click “OK” button to save the settings.

  • Page 46: Preset Setting

    Transcendent VT-TR5HA DVR Series operation tab; click “Delete” button to delete the selected cruise. You can also go to cruise setting interface for cruise setting, see 6.3 Cruise Setting for details. Preset Setting Click StartàSettingsàCameraàPTZàPreset to go to the interface as shown below. Add preset Ø...

  • Page 47: Ptz Protocol Setting

    Transcendent VT-TR5HA DVR Series Add Cruise Ø Click in the camera list on the right side of the interface to display the cruise information of the dome and then click to add cruise. The operations of the “Add Cruise” window are similar to that of the PTZ control interface; please see 6.1 PTZ Control Interface Introduction for details.
  • Page 48 Transcendent VT-TR5HA DVR Series Select the camera and enable PTZ and then set the protocol, baud rate and address of the dome according to the settings of the dome. Protocol: The default communication protocol of the DVR is COC. Range from: PELCOP, PELCOD, LILIN, MINKING, NEON, STAR, VIDO, DSCP, VISCA, COC, etc.

  • Page 49: Record & Disk Management

    Transcendent VT-TR5HA DVR Series 7 Record & Disk Management Record Configuration 7.1.1 Mode Configuration Please format the HDDs before recording (refer to 7.5 Disk Management for details). Click StartàSettingsàRecordàMode Settings to go to the mode settings interface. You can set the record time under “Manual Record Settings”...
  • Page 50 Transcendent VT-TR5HA DVR Series Select one auto mode to pop up the corresponding window. Set the encode, resolution, FPS, bitrate type, quality, max bitrate and audio of each camera and then click “OK” to save the settings. Please adjust the parameters according to the actual condition. Video Encode: the video encode format of the camera.

  • Page 51: Advanced Configuration

    Transcendent VT-TR5HA DVR Series 7.1.2 Advanced Configuration Click StartàSettingsàRecordàAdvanced to go to the following interface. Enable or disable cycle record (cycle record: the earliest recorded data will be replaced by the latest when the disks are full). Set the pre-alarm record time, post-alarm record time and expiration time of each camera and then click “Apply”...

  • Page 52: Schedule Setting

    Transcendent VT-TR5HA DVR Series Schedule Setting 7.3.1 Add Schedule Click StartàSettingsàRecordàRecord ScheduleàEdit Schedules to go to the interface as shown below. “24 7”, “24 5” and “24 2” are the default schedules; you cannot edit or ⅹ ⅹ ⅹ delete “24 7”...
  • Page 53 Transcendent VT-TR5HA DVR Series Set the schedule name and schedule time and then click “Add” to save the schedule. You can set day schedule or week schedule. : add button; : erase button. Set Day Schedule Ø Click and then drag the cursor on the time scale to set record time; click and then drag the cursor on the time scale to delete the selected area.

  • Page 54: Record Schedule Configuration

    Transcendent VT-TR5HA DVR Series Set Week Schedule Ø Click and then click “Manual” beside to set the week schedule. Refer to the picture below. Set the start and end time, check the days in the window and then click “OK” to save the settings.

  • Page 55: Record Mode

    Transcendent VT-TR5HA DVR Series Go to “Edit Schedules” interface and then click to edit the schedule. The settings of “Edit Schedule” are similar to that of the “Add Schedule”. Click to delete the schedule. Record Mode 7.4.1 Manual Recording Method One: Click on the tool bar at the bottom of the live preview interface to enable recording of the cameras.

  • Page 56: Disk Management

    Transcendent VT-TR5HA DVR Series Disk Management Click StartàSettingsàDiskàDisk Management to go to disk management interface. You can view the DVR’s disk number and disk status and so on in the interface. Click “Format” button to format the HDD. Note: 1. A new HDD should be formatted for normal use. 2.

  • Page 57: View Disk And S.m.a.r.t. Information

    Transcendent VT-TR5HA DVR Series 7.5.2 View Disk and S.M.A.R.T. Information Click StartàSettingsàDiskàView Disk Information to view the HDD information; click “S.M.A.R.T. Information” to view the working status of the HDD. Refer to the picture below.

  • Page 58: Playback & Backup

    Transcendent VT-TR5HA DVR Series 8 Playback & Backup Instant Playback Click on the tool bar at the bottom of the preview camera window to play back the recording (click on the tool bar at the bottom of the live preview interface to set the default playback time).
  • Page 59 Transcendent VT-TR5HA DVR Series can also add the playback camera manually. Click in the playback window to pop up the “Add Camera” window. Check the cameras in the window and then click “Add” to add playback camera. The buttons on the tool bar (area ①) at the bottom of the playback interface are introduced in the table below.
  • Page 60 Transcendent VT-TR5HA DVR Series Button Menu List Meaning Move tool. Click to move the tool bar anywhere. Click to enable audio. You can listen to the camera audio by Enable Audio enabling audio. Snap Click to take a snapshot. Click to go to the zoom in interface. The zoom in interface is similar to that of the camera window in the live preview interface.

  • Page 61: Record Search, Playback & Backup

    Transcendent VT-TR5HA DVR Series Record Search, Playback & Backup The record data and the snapped pictures can be backed up through network or USB (U disk or USB mobile HDD). The file system of the backup devices should be FAT32 format. 8.3.1 Search, Playback &...
  • Page 62 Transcendent VT-TR5HA DVR Series Note: If you back up the recording in private format, the system will back up a RPAS player to USB device automatically. The private format record can be played by RPAS player only. Click “Playback” button to play the record in the playback interface (refer to 8.2 Playback Interface Introduction for details).

  • Page 63: Search, Playback & Backup By Time

    Transcendent VT-TR5HA DVR Series Time Slice Mode Selecting: Method One: Click “Year”, “Month” or “Day” button under the record time scale to select the time slice mode. In “Day” mode, click on the left/right side of the time scale to view the record of the last/next day;...

  • Page 64: Search, Playback & Backup By Event

    Transcendent VT-TR5HA DVR Series 8.3.3 Search, Playback & Backup by Event Click StartàSearch and BackupàBy Event to go to “By Event” tab as shown below. Check the event type in the interface as required. Click to set the start time and end time on the top left of the interface. Check cameras on the left side of the interface or check “All”...

  • Page 65: Image Management

    Transcendent VT-TR5HA DVR Series Click in the interface to play the recording. Click to edit the tag name. Click to delete the tag. 8.3.5 Image Management Click StartàSearch and BackupàImage Management to go to “Image Management” tab. The system will display all the snapped images automatically in the list. Click to delete the image.

  • Page 66: View Backup Status

    Transcendent VT-TR5HA DVR Series 8.3.6 View Backup Status Click StartàSearch and BackupàBackup Status or click on the tool bar at the bottom of the playback interface to view the backup status.

  • Page 67: Alarm Management

    Transcendent VT-TR5HA DVR Series 9 Alarm Management Sensor Alarm To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera. Click StartàSettingsàAlarmàSensor Alarm to go to the following interface. Select the alarm type (NO or NC) according to trigger type of the sensor.

  • Page 68: Motion Alarm

    Transcendent VT-TR5HA DVR Series Pop-up Message Box: if enabled, the system will pop up the corresponding alarm message box automatically when the sensor alarm is triggered. To set the duration time of the message box, please see 9.5.3 Display for details. E-mail: if enabled, the system will send an e-mail when the sensor alarm is triggered.

  • Page 69: Motion Alarm Handling Configuration

    Transcendent VT-TR5HA DVR Series Drag the camera image to set the motion area. You can set more than one motion area. Click “All” to set the whole camera image as the motion area. Click “Reverse” to swap the motion area and the non-motion area. Click “Clear” to clear all the motion areas. Click “Apply”...
  • Page 70 Transcendent VT-TR5HA DVR Series Check “Draw Warning Area” and then click around the area where you want to set as the warning area in the image (the warning area should be a closed area). Uncheck the “Draw Warning Area” if you finish the drawing. Click “Clear” button to delete the warning area. Click “Apply”...

  • Page 71: Exception

    Transcendent VT-TR5HA DVR Series Enable or disable “Snapshot”, “Push” “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of object detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings. You can click “Object Config” to go to the object detection configuration interface.

  • Page 72: Tripwire (Line Crossing)

    Transcendent VT-TR5HA DVR Series Exception Alarm Handling Configuration: Click StartàSettingsàAlarmàIntelligence AlarmàException to go to the interface. Enable or disable “Snapshot”, “Push” “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of exception detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
  • Page 73 Transcendent VT-TR5HA DVR Series Select the camera, enable the line crossing detection and set the duration. Select the alert surface and direction. You can add 4 alert surfaces at most but only one can be used at a time. Direction: A<->B, A->B and A<-B options. It is the crossing direction of the intruder who crosses over the alert line.

  • Page 74: Intrusion Detection

    Transcendent VT-TR5HA DVR Series Enable or disable “Snap”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of line crossing alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings. You can click “Crossing Config” to go to the line crossing configuration interface.
  • Page 75 Transcendent VT-TR5HA DVR Series Intrusion Detection Alarm Handling Configuration: Click StartàSettingsàAlarmàIntelligence AlarmàIntrusion Detection to go to the following interface. Enable or disable “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of intrusion detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).

  • Page 76: Exception Alarm

    Transcendent VT-TR5HA DVR Series Exception Alarm 9.4.1 IPC Offline Settings Click StartàSettingsàAlarmàExceptionàIPC Offline Settings to go to the interface as shown below. Enable or disable “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video”, “Pop-up Message Box” and “E-mail”. The IPC Offline Settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).

  • Page 77: Exception Handling Settings

    Transcendent VT-TR5HA DVR Series 9.4.3 Exception Handling Settings Click StartàSettingsàAlarmàExceptionàException Handling Settings to go to the interface as shown below. Enable or disable “Push”, “Alarm-out”, “Buzzer”, “Pop-up Message Box” and “E-mail”. The exception handling settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).

  • Page 78: E-Mail

    Transcendent VT-TR5HA DVR Series edit the schedules (see 7.3.1 Add Schedule for details). Click “Apply” to save the settings. You can click “Test” to test the alarm output. 9.5.2 E-mail Click StartàSettingsàAlarmàEvent NotificationàE-mail to go to the e-mail configuration interface. Set the e-mail address of the recipients. See 11.1.5 E-mail Configuration for details. 9.5.3 Display Click StartàSettingsàAlarmàEvent NotificationàDisplay to go to the display configuration...

  • Page 79: Manual Alarm

    Transcendent VT-TR5HA DVR Series Manual Alarm Click on the tool bar at the bottom of the live preview interface to pop up a window. Click “Trigger” to start alarm. Click “Clear” to stop alarm. View Alarm Status Click StartàSettingsàAlarmàAlarm Status or click on the tool bar at the bottom of the live preview interface to view the alarm status.
  • Page 80 Transcendent VT-TR5HA DVR Series If the exception information is more than one page, you can input the number in the box and then click to jump to the specified page. Click to view the exception alarm information in the previous/next page. Click to play the alarm recording.

  • Page 81: 10 Account & Permission Management

    Transcendent VT-TR5HA DVR Series 10 Account & Permission Management 10.1 Account Management Click StartàSettingsàAccount and AuthorityàAccountàEdit User to go to the interface as shown below. Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①.

  • Page 82: Edit User

    Transcendent VT-TR5HA DVR Series Set the username, password and Pattern Lock and group. Click “Add” to add the user. 10.1.2 Edit User Click StartàSettingsàAccount and AuthorityàAccountàEdit User and then click the user list or double click the user to edit the user information. Click to delete the user (the user admin cannot be deleted).

  • Page 83: User Login & Logout

    Transcendent VT-TR5HA DVR Series Edit User Ø Click “Edit User” to pop up the window as shown below. The admin is enabled, its permission control is closed and permission group cannot be changed by default. You can enable or disable other users (if disabled, the user will be invalid), open or close their permission control (if closed, the user will get all the permissions which admin has) and set their permission groups.
  • Page 84 Transcendent VT-TR5HA DVR Series Click to add permission group. Set the group name, check the permissions as required and then set the “Local” and “Remote” permissions. Click “Add” to save the settings.

  • Page 85: Edit Permission Group

    Transcendent VT-TR5HA DVR Series 10.3.2 Edit Permission Group Go to “Edit Permission Group” interface and then click in the group list to edit the permission group (the operations of the “Edit Permission Group” are similar to that of the “Add Permission Group”, please see 10.3.1 Add Permission Group for details).

  • Page 86: View Online User

    Transcendent VT-TR5HA DVR Series 10.6 View Online User Click StartàSettingsàAccount and AuthorityàUser Status to view the online user information (you can view the online user name, login type, IP address and login time; click to pop up a window showing the preview occupied channel number and playback occupied channel number).

  • Page 87: 11 Device Management

    Transcendent VT-TR5HA DVR Series 11 Device Management 11.1 Network Configuration 11.1.1 TCP/IP Configuration Click StartàSettingsàNetworkàTCP/IP to go to the following interface. Check “Obtain an IPv4 address automatically”, “Obtain an IPv6 address automatically” and “Obtain DNS automatically” to get the network addresses automatically, or manually input the network addresses.

  • Page 88: Pppoe Configuration

    Transcendent VT-TR5HA DVR Series HTTP Port: the default HTTP port of the DVR is 80. The port number can be changed to others like 81. The port is mainly used for IE remote access. If you want to access the DVR through IE, you should input IP address plus HTTP/HTTPS port in the IE address bar like http://192.168.11.61:81.
  • Page 89 Transcendent VT-TR5HA DVR Series Check “Enable” and then select the DDNS type. Input the server address, domain name, username and password according to the selected DDNS type. Click “Test” to test the effectiveness of the information. Click “Apply” to save the settings. You will have to input the server address and domain name if some DDNS types are selected.
  • Page 90 Transcendent VT-TR5HA DVR Series Create domain name and then click Request Domain. After you successfully request your domain name, you will see your domain name information in the list.

  • Page 91: E-Mail Configuration

    Transcendent VT-TR5HA DVR Series Click StartàSettingsàNetworkàDDNS to go to DDNS setting interface. Enable DDNS and then select the www.vitekivpddns.com DDNS type. Input the registered username, password and domain name and then click “Apply”. Map the IP address and HTTP port in the router (you can skip this step if UPnP function is enabled).
  • Page 92 Transcendent VT-TR5HA DVR Series Click “Edit Recipient” to go to the following interface. Click “Add” and then input the recipient’s e-mail address and select the schedule (if a schedule is selected, the system will send the alarm email and the recipient will receive it only in the selected schedule time) in the popup window.

  • Page 93: Upnp Configuration

    Transcendent VT-TR5HA DVR Series 11.1.6 UPnP Configuration By UPnP you can access the DVR through IE client which is in a WAN via router without port mapping. Click StartàSettingsàNetworkàUPnP to go to the following interface. Make sure the router supports UPnP function and the UPnP is enabled in the router. Set the DVR’s IP address, subnet mask and gateway and so on corresponding to the router.

  • Page 94: Date And Time Configuration

    Transcendent VT-TR5HA DVR Series disable wizard, “Log In Automatically”, “Log Out Automatically” (if checked, you can set the wait time) and “App Live Self-Adaption”. Click “Apply” to save the settings. Device Name: The name of the device. It may display on the client end or CMS that help user to recognize the device remotely.

  • Page 95: Factory Default

    Transcendent VT-TR5HA DVR Series 11.3 Factory Default Click StartàSettingsàSystemàMaintenanceàFactory Default and then click “Reset to factory default” button in the interface to reset to the factory default settings. 11.4 Device Software Upgrade You can click StartàSettingsàSystemàInformationàBasic to view MCU, kernel version and firmware version and so on.

  • Page 96: Restart Automatically

    Transcendent VT-TR5HA DVR Series StartàSettingsàSystemàMaintenanceàBackup and Restore to go to the interface. Backup Select the USB device in “Device Name” option; go to the path where you want to store the configuration backup file and then click “Backup” button; finally click “OK” button in the popup window.

  • Page 97: View System Information

    Transcendent VT-TR5HA DVR Series Choose the log file in the list and then click “Export” button to export the log file. Click on the “Content” title bar to pop up a menu list. Check contents in the menu list and then the log list will show the checked log contents only.

  • Page 98: 12 Remote Surveillance

    Transcendent VT-TR5HA DVR Series 12 Remote Surveillance 12.1 Mobile Client Surveillance Enable NAT in the DVR. Refer to 11.1.7 NAT Configuration for details. Download and install the mobile client “Transcendent DVR Viewer” into the mobile device for Android or iOS system. Run the mobile client, go to the “Add Device”...

  • Page 99: Web Wan Access

    Transcendent VT-TR5HA DVR Series Notes: 1. Please make sure that the IP address of the DVR and the computer are both in the same local network segment. For example, supposing that the IP address of the computer is 192.168.1.41, the IP address of the DVR shall be set to 192.168.1.XXX. 2.

  • Page 100: Web Remote Control

    Transcendent VT-TR5HA DVR Series see the serial number of the DVR), user name (the user name of the DVR, admin by default) and password (the password of the DVR, 123456 by default) of the DVR, select the display language on the top right corner of the interface and then click “Login” button to go to the web client interface.

  • Page 101: Remote Preview

    Transcendent VT-TR5HA DVR Series Logout: click it to log out and return to the login interface. Modify Password: click it to change the password of the current login user. Input current password and then set a new password in the popup window. Click “OK” button to save the new password.
  • Page 102 Transcendent VT-TR5HA DVR Series Click on the left panel to hide the panel and click to show the panel. You can view all the added cameras and groups on the left panel. You can view the number of all the added cameras and the online cameras. For instance, the left number 3 in on the left panel stands for the number of online cameras;...
  • Page 103 Transcendent VT-TR5HA DVR Series Click one camera window in the preview area and then click to set the camera’s live preview stream and record stream to main stream in manual record mode; click set the camera’s live preview stream and record stream to sub stream. In sub stream tab, set the resolution, FPS and bitrate and then click “Apply”...

  • Page 104: Remote Playback

    Transcendent VT-TR5HA DVR Series PTZ panel introduction: Button Meaning Click to rotate the dome; click to stop rotating the dome. Drag the slider to adjust the rotating speed of dome. Click to zoom in/out camera image. Click to increase/ decrease the focal length. Click to increase/decrease the iris of the dome.

  • Page 105: Remote Backup

    Transcendent VT-TR5HA DVR Series Button Meaning Backup tasks button. Click it to view the backup status. Event list button. Click it to view the event recording of manual/schedule/sensor/motion. 12.4.3 Remote Backup Click “Backup” in the remote interface to go to the backup interface. You can back up the recording by event or by time.
  • Page 106 Transcendent VT-TR5HA DVR Series How to Play backed up recordings Recordings backed up by DVR: insert the USB device in which the recorded backup files are saved to the PC and then open the USB device path. The recording can be backed up in the private format or AVI format by the DVR.
  • Page 107 Transcendent VT-TR5HA DVR Series Fig 9-2...
  • Page 108 Transcendent VT-TR5HA DVR Series...
  • Page 109 Remote controller, SATA cable, USB mouse Power Consumption ≤ 8W (Without HDD) DC: 12V Power Supply Working Environment 14ºF~122ºF (-10º~50ºC) / 10~90% RH Dimensions (WxHxD) 10.04” x 1.65” x 8.27” (255mm × 42mm × 210mm) (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355...
  • Page 110 Remote controller, SATA cable, USB mouse Power Consumption ≤ 15W (Without HDD) DC: 12V Power Supply Working Environment 14ºF~122ºF (-10º~50ºC) / 10~90% RH Dimensions (WxHxD) 16.93” x 3.54” x 17.72” (430 x 90 x 450mm) (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355...
  • Page 111 Accessories Power Consumption ≤ 15W (Without HDD) Power Supply DC: 12V Working Environment 14ºF~122ºF (-10º~50ºC) / 10~90% RH Dimensions (WxHxD) 16.93” x 3.54” x 17.72” (430 x 90 x 450mm) (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355...
  • Page 112 *Limited Warranty means that VITEK reserves the right to repair or replace any product found de- fective within the warranty time period, prorated to the date of original purchase. If VITEK cannot repair the product, VITEK reserves the right to replace it with an equal or better product and grade at VITEK’s discretion.
