Included Flat / Wall Bracket
1) Place drill template onto wall, then
drill holes accordingly.

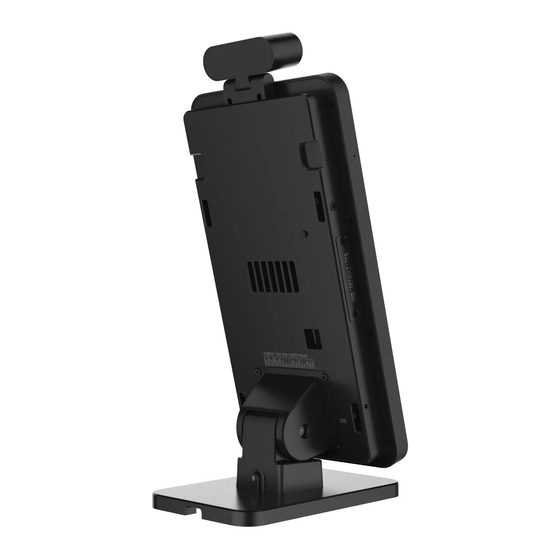

VT-TDBTH - Optional Desktop Bracket
Gross Weight: 1.10lbs (17.64oz.) / .5kg // Net Weight: .88lbs (14.11oz.) / .4kg
Drill Template
Bracket
4 tapping screws
Screwdriver
4 plastic plugs
Screws (KM3* 9)
4.33" (110mm)
R.2"(5mm)
4.17" (106mm)
2) Install gang box on the wall, use two
screws to secure the bracket to the gang
box, then use four screws to finish
securing bracket to the wall.
6.30" (160mm)
5.35" (136mm)
.30" (7.7mm)
.18" (4.5mm)
28492 Constellation Road Valencia, CA 91355
TRANSCENDENT VT-TSP8
MOUNT INSTALLATION GUIDE
Weight: 6.61lbs (105.83oz.) / 3kg
.5"(12mm)
R.08"(2mm)
R.07"(1.75mm)
.3"(7.6mm)
.28"(7.05mm)
R.08"(2mm)
.17"(4.5mm)
.5"(12.8mm)
.02"(.4mm)
3) Route and connect cables, then
install cable cover.
WWW.VITEKCCTV.COM
.24" (6mm)
3.00" (66mm)
R.09" (2.35mm)
1.76" (60mm)
2.13" (54.02mm)
4) Hang device on bracket hook,
then tighten screws to secure.
4x.12"
5.35" (136mm)
(4x3mm)
1/3
