QUICK START GUIDE
FEATURES:
• 1/2.7" 8.0 Megapixel [4K] CMOS Image Sensor
• Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ), 5MP
(2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240
• 2.8mm Fixed Iris Lens
• 1 Matrix Infrared LED with up to 100' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Region Intrusion Detection, Scene Change Detection, Line
Crossing
• H.265, H.264 Compression
• MicroSD Card Slot for Local Recording (Up to 128GB)
• Built-in Mic + 1 Ch. Audio In*
• Remote Viewing via CMS, Internet Explorer, and iOS & Android
Apps
• IP67 Weather Resistance + IK10 Impact Rating
• Optional Junction Box (VT-TJB03A), Wall Mount (VT-TWMT3)
and In-Ceiling Semi Flush Mount (VT-TFMT-S) Available
• 12VDC & PoE (Power over Ethernet) Operation
• Available in Ivory or Charcoal Grey Finish (VTD-TND8RFEB-2)
*Please research local, state and federal laws
regarding the implementation of audio surveillance.

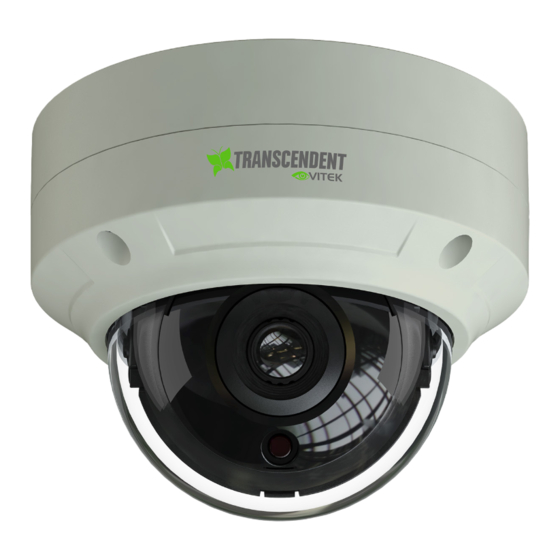

VTD-TND8RFE-2
8 MegaPixel [4K] Indoor/
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
Outdoor WDR IP Fixed
Vandal Dome Camera
Advertisement
Table of Contents
Related Manuals for Vitek VTD-TND8RFE-2
Summary of Contents for Vitek VTD-TND8RFE-2
- Page 1 VTD-TND8RFE-2 Transcendent Series 8 MegaPixel [4K] Indoor/ Outdoor WDR IP Fixed Vandal Dome Camera QUICK START GUIDE FEATURES: • 1/2.7” 8.0 Megapixel [4K] CMOS Image Sensor • Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ), 5MP (2592 ×1944 ), 720P (1280 ×...
-
Page 2: Components And Accessories
Components and Accessories Rubber plug Camera Quick start guide 4 tapping screws PA 4×2 ×4 Screwdriver Drill template Plastic plug Overview Power connector Lower dome Mounting base Micro SD card slot Reset Network connector Audio input Cable Connections First connect the weather resistant cap to an ethernet patch cable, then connect the cameras ethernet adaptor. -
Page 3: Installation
Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler. 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 4 3. Route the cables and 3. Route the cables and connect the power & video connect the power & video cables, use the rubber plug cables, use the rubber plug to fill the gap of the mounting to fill the gap of the mounting base.
- Page 5 LAN Configuration LAN Configuration Switch Switch Network Cable Network Cable Network Cable Network Cable MENU MENU IP Camera IP Camera Computer Computer Router Router The camera can be accessed on the local network either using the The camera can be accessed on the local network either using the IP-Tool or directly in a web browser.
- Page 6 4. Double-click the IP address and then the system will pop up the web 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X browser to connect IP-CAM .
-
Page 7: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. confirm. The IE browser will download Active X control. 3. - Page 8 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
