Vitek Transcendent Series Quick Start Manual

2 megapixel 1/2.8” 20x poe+ ip speed dome camera
Hide thumbs Also See for Transcendent Series:
Table of Contents

Advertisement

Quick Links

QUICK START GUIDE
FEATURES
• 1/2.8" 2MP Sony STARVIS® CMOS Progressive Scan Sensor
• Superior Image Quality via High MTF 20x Zoom Lens and STARVIS®
to Capture Vivid Color Images in Low Light Conditions
• Max 30fps @ 2MP
• True WDR (Wide Dynamic Range)
• H.265 / H.264 / MJPEG
• High Efficiency Video Coding (H.265, ITU-T VCEG)
• Smart IR (2.0) with up to 500 foot IR Range
• Smart IR Lighting Sub-System, Improves Uniformity of Illumination
• 5.5-110mm Focal Length, 20x Optical Zoom Lens
• Zoom Speed Approximately 3.5s (Optical Lens, Wide-TELE)
• Aperture Range: F1.6 (Wide) to F3.5 (TELE)
• Day / Night w/ IR Cut Filter
• Smart Thermal Management (1.0), with a Built-In Temperature Sensor,
Highly Efficient Turbo Fan, and High Power Heater
• Built-in Micro SD Card Slot, Supporting up to 128GB
• 360° Endless Pan Range, and Pan Speed from 0.1°/s to 80°/s
• ONVIF Compliant with Zero Configuration
• 12VDC @ 3amps / PoE+ (20 watts)
• 12VDC Power Supply Included
• Optional Mounts: VT-TPT20HR-WM (Wall), VT-TPT20HR-PM
(Pendant), VT-TPT20HR-FM (Semi-Flush), VT-TPLMT-W (Pole Mount -
White), and VT-TCNMT-W (Corner Mount - White) Available
• IP 66 Ingress Protection
• 3-Year Warranty
VT-TPTZ20HR-2PNS
*Sony STARVIS® is a registered trademark of Sony
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads

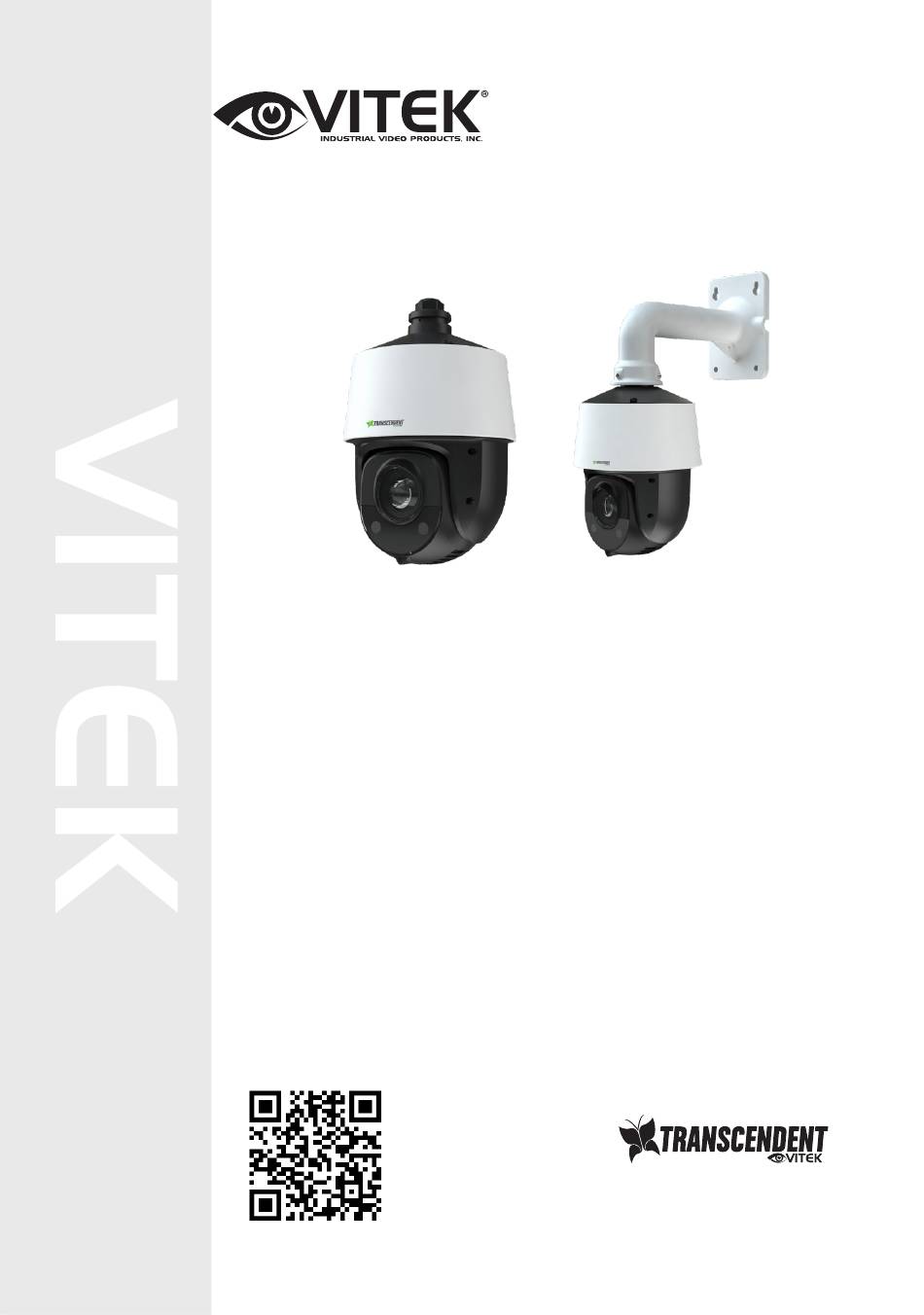

Transcendent Series
2 MegaPixel
1/2.8" 20x PoE+ IP
Speed Dome Camera
*Shown with
optional wall mount
VT-TPT20HR-WM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Transcendent Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek Transcendent Series

Summary of Contents for Vitek Transcendent Series

  • Page 1 VT-TPTZ20HR-2PNS Transcendent Series 2 MegaPixel 1/2.8” 20x PoE+ IP Speed Dome Camera QUICK START GUIDE *Shown with optional wall mount VT-TPT20HR-WM FEATURES • 1/2.8” 2MP Sony STARVIS® CMOS Progressive Scan Sensor • Superior Image Quality via High MTF 20x Zoom Lens and STARVIS®...

  • Page 2: Cable Connections

    Overview 1 Ethernet connector Power connector 3 Safety wire Cable Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE+, also connect the power Cable to an approved 12VDC Power Supply. Weather Resistant Network Coupler 1.

  • Page 3: Installation

    Installation Before beginning, make sure that the wall or ceiling is strong enough to withstand the weight of the camera, and that the power is off.*Wall mounting instructions are below, followed by ceiling mounting and semi-flush mounting. MicroSD Card Installation Insert a micro SD card 1.
  • Page 4 1/2” 4. Insert two screws in 5. Connect the cables the holes as indicated in and hang the bracket on 6. Attach the bracket to figure (3.) and leave.5” the wall. the wall with four screws. clearance. Installation Using Ceiling / Pendant Mount - VT-TPT20HR-PM (mount sold separately) *see page 10 for mount dimensions 1.
  • Page 5 4. Connect cables, then hook the 5. Securely attach the camera safety wire to the adapter stem. to the adapter stem with screws. Installation Using Semi-Flush Ceiling Mount VT-TPT20HR-FM (mount sold separately) *see page 10 for mount dimensions...
  • Page 6 8.35” 8.35 Attach s Thr...

  • Page 7: Lan Configuration

    LAN Configuration Switch Network Cable Network Cable MENU P T Z C amer a Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1.
  • Page 8 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.

  • Page 9: Wan Configuration

    2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
  • Page 10 Installation Mount Dimensions VT-TPT20HR-WM 3.32” 9.72” 2.48” VT-TPT20HR-PM 3.51” 7.22” VT-TPT20HR-FM 9.17” 7.20” 6.89” 1.89” 9.17”...
  • Page 11 Detailed Specifications VT-TPTZ20HR-2PNS Image Sensor 1/2.8” 2 MegaPixel Sony STARVIS® CMOS Sensor Min. Illumination Color: .006 lux@F1.6, AGC B/W: .003lux@F1.6, AGC 0 lux with IR White Balance Auto/Manual/ATW (Auto-tracking WB)/Indoor/Outdoor S/N ratio >50dB Gain Auto/Manual Shutter Time 50Hz: 1 / 1s ~ 1 / 25,000s; 60Hz: 1 / 1s ~ 1 / 30,000s Day&Night IR Cut Filter Privacy Mask...
  • Page 12 Detailed Specifications - CONTINUED VT-TPTZ20HR-2PNS ONVIF, Third-Party Management Platform Up to 6 Users Simult. Live View Up to 16 users, 3 levels: Administrator, Advanced and Normal Users User/Host User Authentication (ID and PW), Host authentication (MAC address); HTTPS encryp., IEEE802.1x port-based net acc. cntrl; IP add. filtering Security Measures IE8-11, Chrome 31.0 to 44, Firefox 30.0 to 51 Web Browser...
  • Page 13 OPTIONAL ACCESSORIES FOR TRANSCENDENT PTZ CAMERAS VT-TPT20HR-FM VT-TPT20HR-WM Wall Mount for Semi-Flush Ceiling Mount VT-TPTZ20HR for VT-TPTZ20HR VT-TPT20HR-PM VT-TCNMT-W* VT-TPLMT-W* *Both shown with VT-TPT20HR-WM Transcendent Pole Pendent/Ceiling Mount Transcendent Corner Mount Adapter - White for VT-TPTZ20HR Mount Adapter - White...
  • Page 14 IP PRODUCTS! VITEK Network Video Recorders Supporting up to 4K Resolution & Real Time Video! Pair with VITEK Transcendent Series Network Recorders: VT-TNR818PF, VT-TNR1646PF, and VT-TNR3216PF with Built-in PoE and Gen III. Advanced A.I. including Face Detection, Target Counting, and...
  • Page 15 Also Consider Vitek Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.

  • Page 16: Limited Product Warranty

    (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
