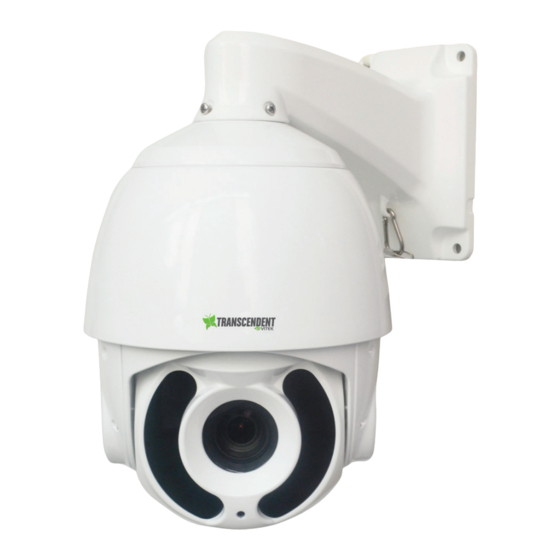

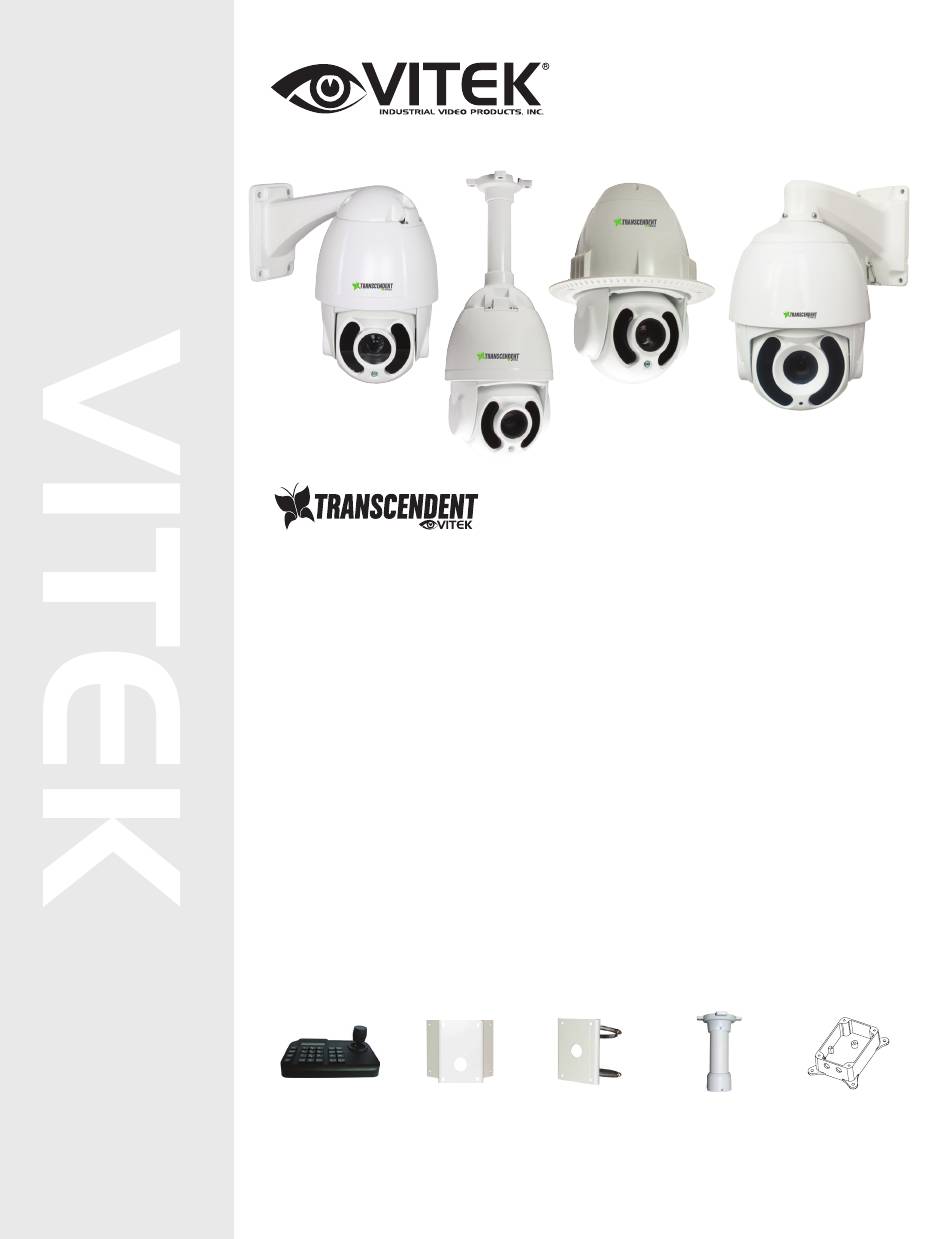

FEATURES
• 1/3" 2.1 MegaPixel CMOS Sensor
• 30fps live view @ 1920 x 1080p
• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output (Selectable)
• True Day/Night by IR Cut Filter
• Built-in Varifocal Lens offering 10x or 36x Optical Zoom
• Integrated High Power IR LEDs with up to 500' IR Range
• 2DNR Noise Reduction
• 220 Presets programmed with view direction, zoom, BLC, etc
• Max manual speed 480°/sec
• 360°continuous rotation
• 16:9 Video format
• RS485 Communication / COC (Control Over Coax)
• Double layer metal body construction with IP66 Weather Resistance
• Over 1500' HD Video Transmission (Depending on cable characteristics and
integrity)
• 12VDC Operation
• Power Supply Included
• 3 Year Warranty
OPTIONAL ACCESSORIES:
VT-TKBD2
VT-TPT-CNMT
Transcendent
PTZ Corner
3D Keyboard
Mount Adapter
Controller for
Bracket for
Transcendent
Transcendent
HD-TVI PTZ
HD-TVI & IP
Cameras
PTZ Cameras
VT-TPTZ10HR-2A4
VT-TPTZ36HR-2A4
2.1 MegaPixel 4-IN-1 HD-TVI / AHD / CVI
/ CVBS PTZ Cameras with High Power IR
VT-TPTZ10HRF-2A4
VT-TPT-PLMT
VT-TPT-PDM1
PTZ Pole Mount
PTZ Pedestal
Adapter Bracket
Mount for Large
for Transcendent
9" Transcendent
HD-TVI & IP
PTZ Cameras
PTZ Cameras
LED Illumination
VT-TPTZ36HR-2A4
VT-TPT-JB01
J-Box for cable
Management
for Large 9"
Transcendent
PTZ Cameras

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-TPTZ10HR-2A4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vitek VT-TPTZ10HR-2A4

  • Page 1 VT-TPTZ10HR-2A4 VT-TPTZ36HR-2A4 2.1 MegaPixel 4-IN-1 HD-TVI / AHD / CVI / CVBS PTZ Cameras with High Power IR LED Illumination VT-TPTZ10HR-2A4 VT-TPTZ10HRF-2A4 VT-TPTZ36HR-2A4 VT-TPTZ10HRC-2A4 FEATURES • 1/3” 2.1 MegaPixel CMOS Sensor • 30fps live view @ 1920 x 1080p • HD-TVI / HD-CVI / AHD / 960H CVBS Video Output (Selectable) •...
  • Page 2 Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras WARNINGS AND CAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.
  • Page 3: Table Of Contents

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras TABLE OF CONTENTS 1 PRODUCT INTRODUCTION ........................3 1.1 P ..........................3 ACKAGE ONTENTS 1.2 F ........................... 3 UNCTION ESCRIPTION 2 INSTALLATION ............................5 2.1 C ..........................5 OAXIAL ONTROL 2.3 I ........................5 NSTALLATION OF RACKETS 2.3.1 Wall Mounted ..........................
  • Page 4: Product Introduction

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras 1 PRODUCT INTRODUCTION 1.1 PACKAGE CONTENTS IP IR Speed dome Wall mount bracket Power supply Screws kits User manual 1.2 FUNCTION DESCRIPTION Multilanguage OSD Menu The language displayed on screen menu, the available languages are English, Spanish, French, Portuguese, Polish, Deutsch and Italian.
  • Page 5 Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras Ratio Speed Intelligent pan and tilt speed is variable depend on the zoom factor. When zooming in, the speed will become slower and when zooming out, the speed will become quicker. A-B Scan Dome will scan between to preset points Pan Scan Dome will continuously scan 360°...
  • Page 6: Installation

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras 2 INSTALLATION 2.1 COAXIAL CONTROL The dome supports coaxial control and also supports RS-485 communication signal. 2.3 INSTALLATION OF BRACKETS. 2.3.1 Wall Mounted Installation conditions: Wall mounted dome can be used in a hard wall structure whose thickness should be enough to install expansion bolts in indoor and outdoor environment.
  • Page 7: Corner Mounted (Optional)

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras 2.3.2 Corner Mounted (Optional) Fig 4 Installation conditions: Corner mounted dome can be used in a hard wall structure with an angle of 90° whose thickness should be enough to install expansion bolts in indoor and outdoor environments. The wall must bear at least 4 times the weight of the dome.
  • Page 8: Pole Mounted (Optional)

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras c. As shown in Fig7, fix the wall hanging bracket with all cables power through it on the corner mounted attachment. Fig 7 2.2.3 Pole Mounted (Optional) Fig 8 Installation conditions: Pole mounted domes can be used on a hard pole structure in indoor and outdoor environment whose diameter should match the installation size of stainless hose clamps.
  • Page 9: Ceiling Mounted (Optional)

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras b. As shown in Fig 10, attach the wall hanging bracket with all cables through it on the pole mounted attachment. Fig 10 2.3.4 Ceiling Mounted (Optional) Fig11 Installation conditions: Ceiling mounted dome with thick pole can be used in the hard ceiling structure whose thickness should be enough to install expansion bolt in indoor and outdoor environment.
  • Page 10 Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras b. As shown in Fig 13, at first unscrew the M4 screw at the side of the base of ceiling and split the base of ceiling and boom. Then make the three groups of cables of power, video/control and alarming into the side recessing seal groove of the ceiling connector bottom and through the core hole of the base of ceiling mounted.
  • Page 11: Connection

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras 2.4 CONNECTION Connection of RS485 Before connecting, please remove the power and read carefully the instructions of all connected devices. (If the camera and the DVR support coaxial control, please ignore this step). Fig 24 3.
  • Page 12: Basic Function

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras 3.2 BASIC FUNCTION Dome Running Control joystick or up, down, left and right key on the keyboard. Zoom Press ZOOM- button for zooming out Press ZOOM+ button for zooming in Focus Press FOCUS- button, use to focus near. Press FOCUS+ button, use to focus far away.
  • Page 13: Screen Character Operation

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras Digital zoom off 99 (39) Pan scan 81 (41) Auto day/night 137 (Twice) Switch to AHD 82 (42) Switch to night 138 (Twice) Switch to TVI Switch to day 139 (Twice) Switch to CVI Force on far light 140 (Twice) Switch to CVBS...
  • Page 14: Osd Menu

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras 4 OSD MENU 4.1 MENU INDEX...
  • Page 15: System Information

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras 4.2 SYSTEM INFORMATION <SYSTEM> <MAIN MENU> PROTOCOL PELCO D-P <SYSTEM> DOME ID <DOME> <CAMERA> COMM 2400.N.8.1 <DISPLAY> <LANGUAGE> TEMPERATURE 41.8℃ <TIMING TASK> VERSION V863R15122109 <ALARM> EXIT <RESET> EXIT When enter the OSD, it display Enter to the SYSTEM, you will see: MFG: Max 15 characters displayed on the screen.
  • Page 16: Communication

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras 4.3.1 Communication <COMM> <COMM RESET> DEVICE ID 125295 CHECK ID 125288 RESET TO DIAL THE CODE TARGET ID SOFT PROTOCOL AUTO BAUD RATE 2400 <COMM RESET> SAVE EXIT Fig4.3.1.1 Fig.4.3.1.2 DEVICE ID: It is auto generated by system. CHECK ID: To change the TARGET ID, please input the CHECK ID exactly same as the DEVICE ID displays on the screen.
  • Page 17: Guard Tours

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras working mode, if the illumination on level is less than the ambient light, the picture will change to color, the IR illumination will turn off automatically. If the illumination on level is more than the ambient light, the picture will change to black &...
  • Page 18: Pan Scan

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras PRESET A: On A-B scan, A point can be any preset PRESET B: On A-B scan, B point can be any preset. SCAN SPEED: A-B scan speed is 1 to 64 selectable. DWELL TIME: Dwell time between A to B is 2s to 60s selectable. RUNNING: Running the A-B scan.
  • Page 19: Privacy Zone( Optional)

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras PARK MODE: Park mode includes OFF, Park action, A-B scan, Pan scan, guard tour 01, pattern When park mode is OFF status, the dome doesn’t run park mode. Example: Running A-B scan at first, when the action stops unexpectedly, it enters the park mode to continue to run A-B scan.
  • Page 20: Camera

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras PWR ON ACT: Power on action can be set as Memory, A-B scan, Pan scan, Park action, Pattern 1and No action, Guard tour 1. RATIO SPEED: Ratio speed can be set as ON or OFF status. AUTO FLIP: Auto flip can be set as ON or OFF status.
  • Page 21: Language

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras P AND T: On screen, it displays the pan and tilt degree, user can enable or disable it. ZOOM: Displays the zoom level. ACTION: On the screen, it displays the current action, such as A-B scan, Call preset, Save preset, Call park action, Pan scan etc.
  • Page 22: Reset

    Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras 4.9 RESET <RESET> <DOME RESTART> <DOME RESTART> CONFIRM: SAVE DATA, <SYS DATA> DOME RESTART <CAM DATA> <PRESET> <SYS DATA> <CAM DATA> CONFIRM: FACTORY DEFAULT CONFIRM: FACTORY DEFAULT CONFIRM: Delete the presets information saved by the dome. 5.
  • Page 23 Transcendent Series 2.1 MegaPixel 4-IN-1 PTZ Cameras CONSIDER THESE OTHER GREAT TRANSCENDENT PRODUCTS! VT-TTAR Series Transcendent Series 4, 8, and 16 Channel HD-TVI/AHD/960H/IP Digital Video Recorders FEATURES • 4, 8, or 16 Channel HD-TVI/AHD/960H BNC Inputs + IP Camera Support •...
  • Page 24 -40ºF ~ 140ºF (-40ºC ~ 60ºC) with included outdoor housing 12VDC Input Voltage Power Consumption < 25W Lightning Protection Transient voltage 6000V Dimensions (WxHxD) 5.5” x 5.5” x 14.5” 5.5” x 9.5” x 9.5” 7.5” x 7.5” x 9” (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355...
  • Page 25 -40ºF ~ 140ºF (-40ºC ~ 60ºC) with included outdoor housing 12VDC Input Voltage Power Consumption < 25W Lightning Protection Transient voltage 6000V Dimensions 13.78” (H) x 8.46” (Dia) 4.80” 8.94” 3.94” 4.80” 8.94” 3.94” 8.46” (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 8.46”...
  • Page 26 VITEK products carry a three (3) year limited warranty. Digital recording and storage products are also warranted for 3 years. * Per a special agreement with Western Digital, as of August 2016, VITEK also warrants factory installed Hard Drives for the full 3 year span of the recorder warranty provided that the recorder was purchased through an authorized VITEK distributor.
