Vitek Transcendent VTC-TNB16X4MS Quick Start Manual

Vitek Transcendent VTC-TNB16X4MS Quick Start Manual

16 megapixel 180 multi-sensor “peri-cam” camera

Advertisement

Quick Links

QUICK START GUIDE
FEATURES:
• Four 1/1.8" 4.0 MegaPixel Progressive Scan CMOS Image Sensors
• Resolution of up to 5520 x 2400
• 4 x 4.5mm Fixed Lens
• 1s~1/10,000s; Auto/Manual Electronic Shutter
• 8 IR LEDs, up to 75' IR Range (with 180° Array)
• Digital Wide Dynamic Range (D-WDR)
• Analytics including: Line Crossing, Region Entrance / Exit
• True Mechanical Day/Night function by ICR
• XD-DNR (2D & 3D-DNR) Noise Reduction
• Field of View Capacity: Pan (180°), Tilt (80°)
• Smart H.265/H.264/MJPEG Triple Streaming
• Single IP Address Input Required
• Remote View via CMS, IE, iOS & Android Apps
• ONVIF Compliant
• MicroSD Memory Card Slot for Local Recording (up to 256GB)
• IP67 Weather Resistance
• Two-way Audio*, 1 Ch. Alarm In + Out, CVBS
• 12VDC & PoE+ (Power over Ethernet) Operation
• VT-TJB010 J-Box Included, and Universal Corner and Pole Mount Adapters Available
[See Page 9]
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.

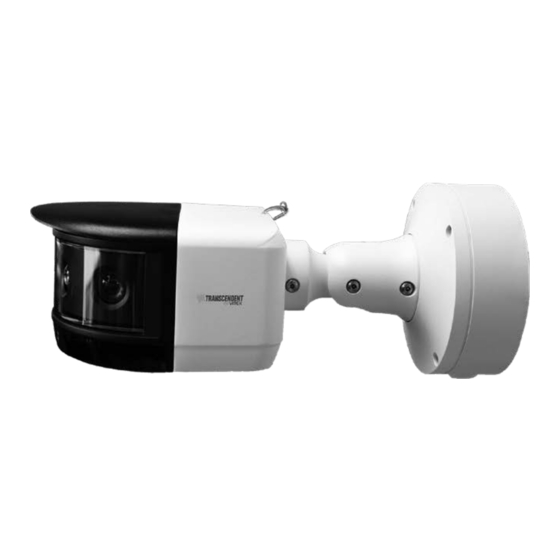

VTC-TNB16X4MS
Multi-Sensor "Peri-Cam" Camera

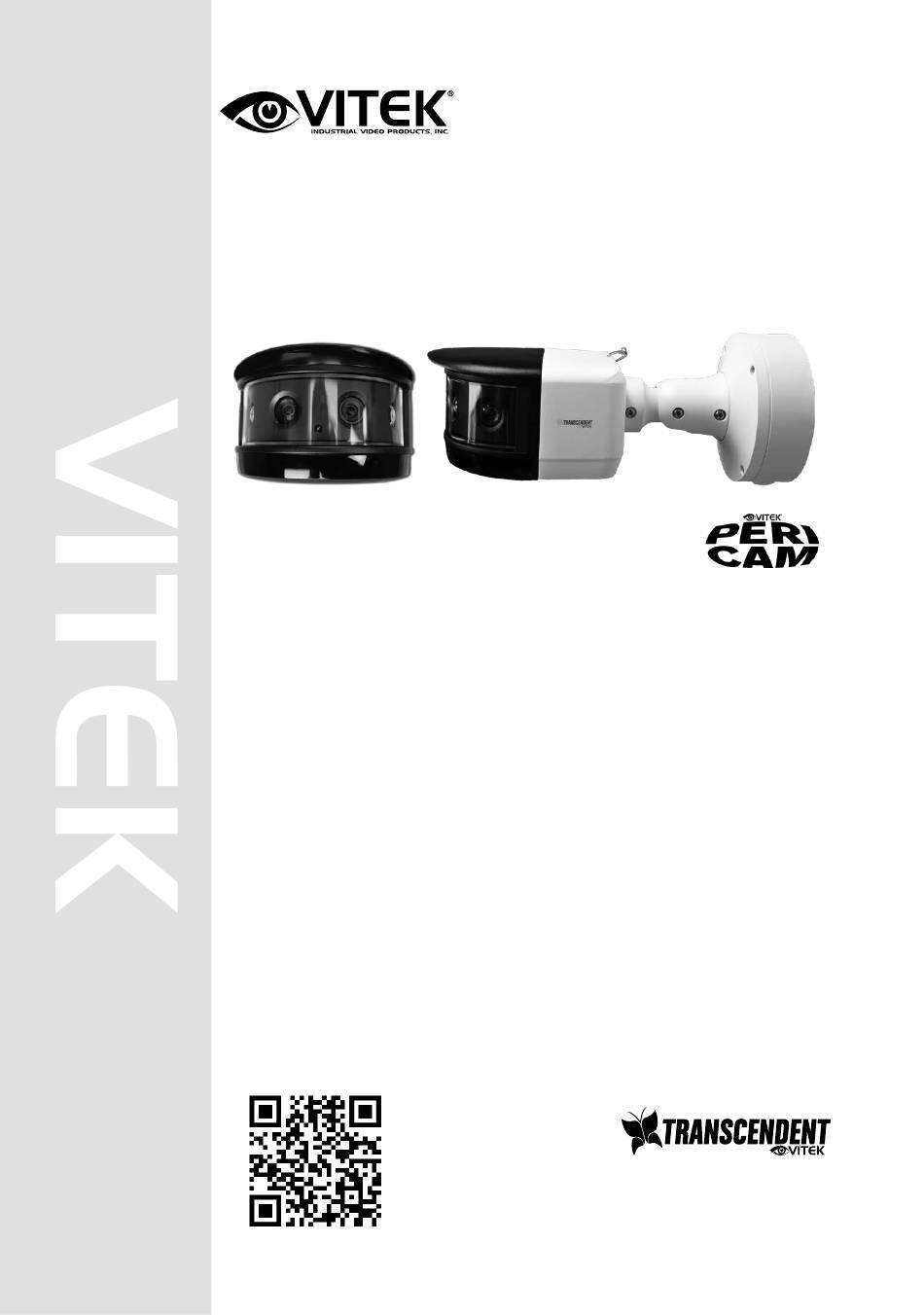

*Shown with Included J-Box VT-TJB010
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
16 MegaPixel 180°
16MP

Advertisement

loading
Need help?

Need help?

Do you have a question about the Transcendent VTC-TNB16X4MS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vitek Transcendent VTC-TNB16X4MS

  • Page 1 VTC-TNB16X4MS Transcendent Series 16 MegaPixel 180° Multi-Sensor “Peri-Cam” Camera QUICK START GUIDE *Shown with Included J-Box VT-TJB010 FEATURES: 16MP • Four 1/1.8” 4.0 MegaPixel Progressive Scan CMOS Image Sensors • Resolution of up to 5520 x 2400 • 4 x 4.5mm Fixed Lens •...
  • Page 2: Components And Accessories

    Components and Accessories Overview Cable Connections First connect the Weather Resistant Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply.
  • Page 3: Installation

    Connecting Alarm Input / Output Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation First Install a MicroSD Card as Demonstrated in Diagram at Right...
  • Page 4 3. Before adjustment, preview the camera’s 3. Before adjustment, preview the camera’s 3. Before adjustment, preview the camera’s image on a monitor and then loosen the image on a monitor and then loosen the image on a monitor and then loosen the fixed screws to adjust the camera’s viewing fixed screws to adjust the camera’s viewing fixed screws to adjust the camera’s viewing...
  • Page 5 LAN Configuration LAN Configuration LAN Configuration S witch S witch S witch N etwor k C able N etwor k C able N etwor k C able N etwor k C able MENU MENU N etwor k C able N etwor k C able MENU IP Camera IP Camera...
  • Page 6 4. Double-click the IP address and then the system will pop up the web 4. Double-click the IP address and then the system will pop up the web 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM .
  • Page 7 2. Open the IE Browser and input the default address of IP-CAM and 2. Open the IE Browser and input the default address of IP-CAM and 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. confirm.
  • Page 8 VT-TNB16X4MS Specifications Image Sensor 4 × 1/1.8” 4.0 Megapixel Progressive Scan CMOS Image Size 16 MegaPixel - 5520x2400 Electronic Shutter 1s -1 / 10,000s (Auto / Manual) Min. Illumination Color: 0.008Lux @ (F2.0 AGC ON) B/W: 0.001Lux @(F2.0 AGC ON), 0 Lux with IR Lens 4.5mm Fixed Iris Lens ×...
  • Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNB16X4MS VT-JB010 Included J-Box for Cable Management VT-TPLMT VT-TCNMT Transcendent Universal Pole Transcendent Universal Mount - reqs. Corner Mount - reqs. VT-TJB010 VT-TJB010 8.47” 6.43”...
  • Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS Transcendent NVRs A Standalone Solution with Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression • Analytic Support Including Basic Face Detection, License Plate Recognition, and More! •...
  • Page 11 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
  • Page 12: Limited Product Warranty

    LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
