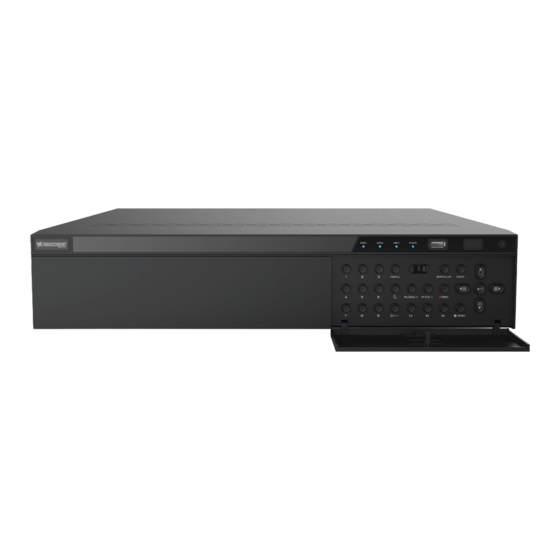

Vitek Transcendent Series Quick Start Manual

16 and 32 channel 8.0 megapixel [4k] 5-in-1 hd-tvi / ahd / cvi / cvbs / ip digital video recorders
Hide thumbs Also See for Transcendent Series:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

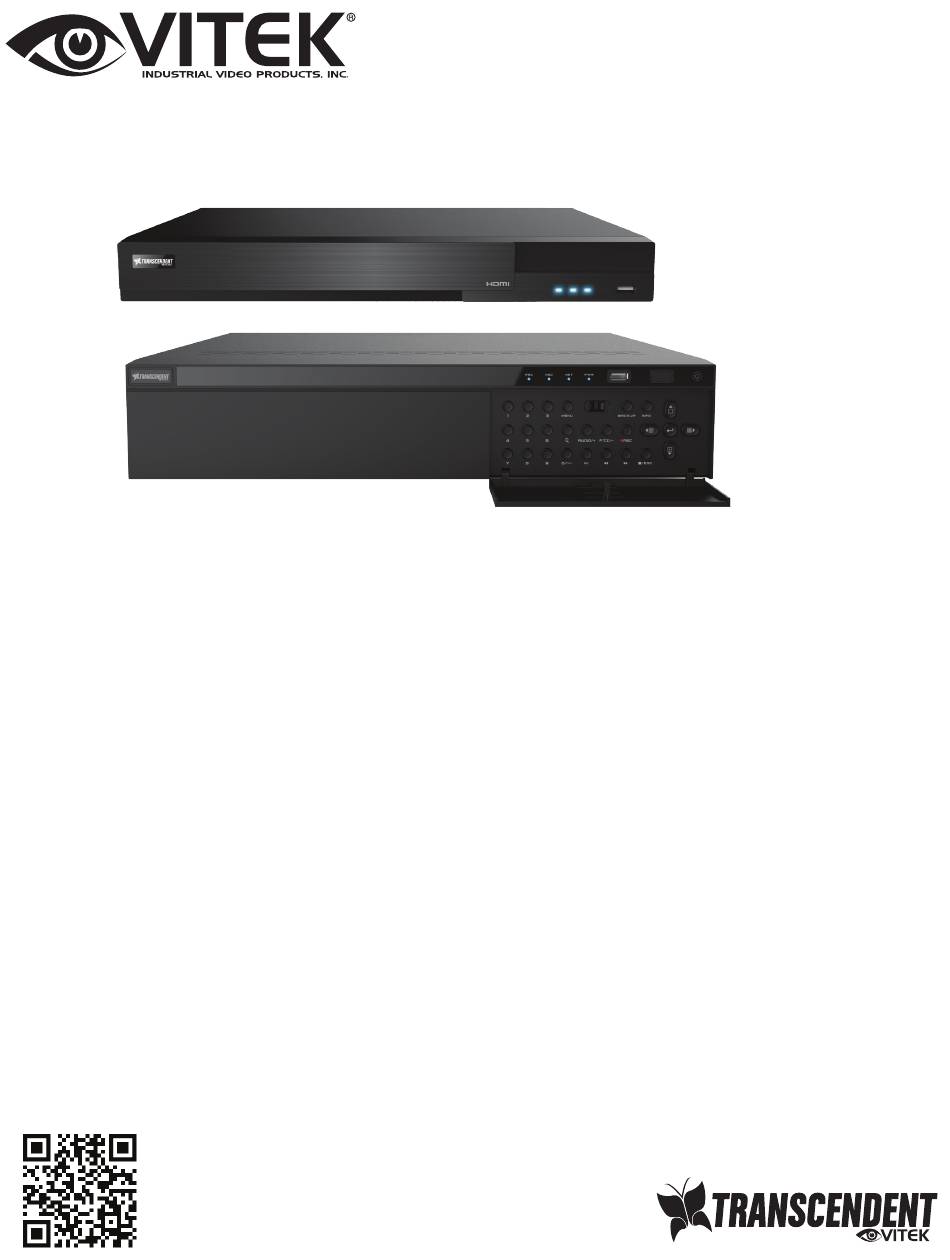

QUICK START GUIDE
KEY FEATURES:
16 or 32 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs Supporting up to 8 MegaPixel + IP Camera Support with ability to
•
substitute up to 32 (VT-TR8HA3280) 8 (VT-TR8HA1620) HDA inputs for IP cameras
VT-TR8HA1621: Video Resolution (HDA): TVI/ AHD / CVI: 8MP@8fps, 8MP Lite@15fps, 5MP@12fps, 4MP/3MP@15fps,
•
4MPLite/1080P/720P/WD1 @30fps
•
VT-TR8HA3280: Video Resolution (HDA): TVI/ AHD / CVI: 8MP@8fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1 @30fps
Video Resolution (IP): Up to 8MP [4K] @30fps
•
HDMI (4K), VGA, and BNC Spot Video Output
•
Simple plug and play, point-to-point connection from camera to DVR
•
• Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites
[For Enterprise version please contact your Vitek Reseller]
H.265 / 264 Compression
•
•
2-Way Audio [Takes up 1 Ch. Audio In on VT-TR8HA1621]
PTZ Control over RS-485 / Control over Coax (CoC)
•
Pentaplex: Live Display / Record / Playback / Backup / Remote Access
•
VT-TR8HA1621: 2 Internal SATA2/SATA3 HDD Slot supporting up to 24TB (2 x 12TB HDD)
•
VT-TR8HA3280: 8 Internal SATA2/SATA3 HDD Slot supporting up to 96TB (8 x 12TB HDD)
•
Applications for iOS & Android
•
Remote Viewing over the Internet via Web Browser or LAN
•
Mac OS® Client & CMS Central Management Software Included
•
•
Supports both Dynamic and Static IP Addresses
Control locally via USB Mouse or IR Remote cont
•
3-Year Warrranty
•
PLEASE NOTE:
Complete manual can be found at:
www.vitekcctv.com
VT-TR8HA Series
Transcendent Series 16 and 32 Channel
8.0 MegaPixel [4K] 5-In-1 HD-TVI / AHD / CVI /
CVBS / IP Digital Video Recorders
VT-TR8HA1621
VT-TR8HA3280
4K
8MP

Advertisement

loading
Need help?

Need help?

Do you have a question about the Transcendent Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek Transcendent Series

Summary of Contents for Vitek Transcendent Series

  • Page 1 Simple plug and play, point-to-point connection from camera to DVR • • Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites [For Enterprise version please contact your Vitek Reseller] H.265 / 264 Compression •...

  • Page 2: Setup And Configuration

    2. Check Package Contents Please confirm that the device and all accessories are included in the package. If there is any damage, shortages or defects, please contact your distributor immediately. 1) Transcendent Series DVR 5) USB Mouse 2) IR Remote Control 6) Rack Ears (32 Ch.
  • Page 3 7. Network Configuration & Adding IP Cameras gateway, etc. If using DHCP, please enable DHCP in both the DVR and the router. 6036). TCP/IPv4 Port DDNS E-mail UPnP Network Status 3 Click “Apply” to save the settings. IP Address Settings Et h ern et Po r t 1 ( O n lin e ) Obtain an IP address automatically IP Address...
  • Page 4 9. NAT 1 Make sure the DVR is powered and connected to a network. TCP/ IPv4 Port DDNS E-mail UPnP Network Status IP address, subnet mask and gateway automatically. You can also manually enter them according to the actual network situation. Enable Please make sure the network segment is the same as that of the NAT Server...
  • Page 5 Detailed Specifications VT-TR8HA1621 Video Inputs 16 Channels HD-TVI / AHD / CVI / Analog BNC Inputs Supporting up to 8 MegaPixel [4K] Hybrid Inputs 8 HD Analog channels may be substituted for IP Cameras (plus 8 additional IP Cameras up to 8MP) for a complete Hybrid solution (up to 24 cameras) IP Camera Support, Hybrid Inputs 8 MegaPixel @ 30fps Max Compression...
  • Page 6 Detailed Specifications VT-TR8HA3280 Video Inputs 32 Channels HD-TVI / AHD / CVI / Analog BNC Inputs Supporting up to 8 MegaPixel [4K] IP Camera Support Up to 8 MegaPixel @ 30fps Max, 32Ch IP Plus HDA Inputs may be substituted for IP for up to 64Ch IP Compression H.265 / H.264 High profile Analog Recording...
  • Page 7 CONSIDER THESE OTHER GREAT TRANSCENDENT PRODUCTS! 8MP HD OVER COAX CAMERAS WITH FIXED / MOTORIZED LENS CONFIGURATIONS VTC-THB8RM VTC-THT8RM VTD-THD8RM Transcendent 8.0 Megapixel [4K] Indoor/ Outdoor 4-IN-1 Motorized HDA Cameras FEATURES • 1/2.5” 8 MP[4K] Progressive Scan CMOS Image Sensor •...
  • Page 8 Limited Product arranty VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended,...
