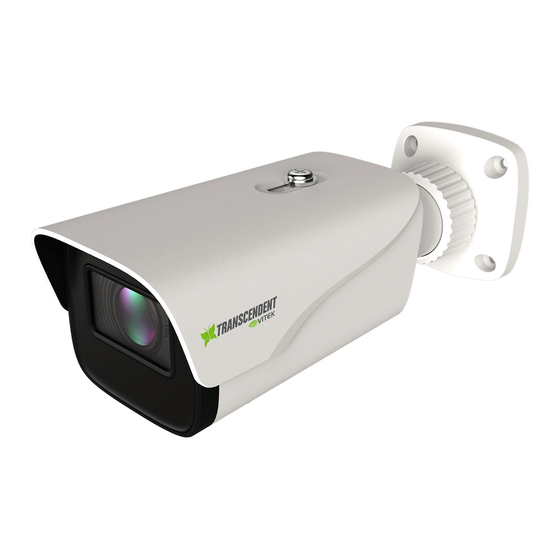

Vitek Transcendent Series Quick Start Manual
2 megapixel license plate recognition wdr ip motorized bullet camera
Hide thumbs
Also See for Transcendent Series:
- Quick start manual (16 pages) ,
- Manual (12 pages) ,
- Installation manual (3 pages)
Table of Contents
Advertisement
Quick Links

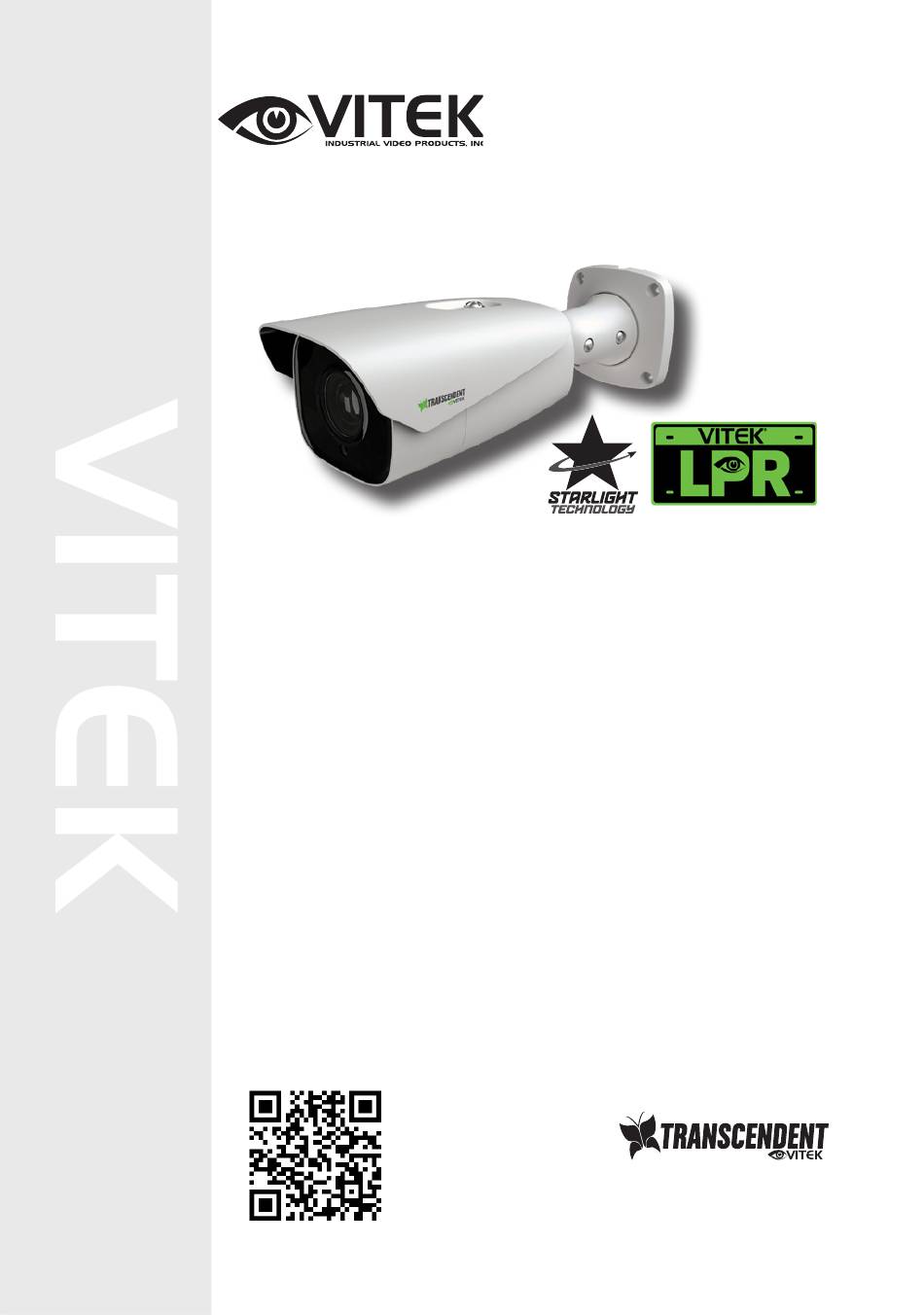

QUICK START GUIDE
FEATURES:
• Advanced Starlight Technology Offers Dramatically Higher Sensitivity to
Light Producing Color Images in Very Dark & Night Scenes
• 1/2.8" 2.0 Megapixel CMOS Image Sensor
• 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
• 7~22mm @ F1.6 Motorized Varifocal Lens
• Field of View - H: 44°~17.6°; V:25.6°~10°; D: 49.7°~20.2°
• 6 Matrix IRs with up to 325' IR Range
• True Wide Dynamic Range (120db)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D Digital Noise Reduction)
• License Plate Recognition (LPR), Abnormal Video, Scene Change
• LPR Snapshot: Overview and Cutout of Plate, White List: 10,000
• LPR Capture Speed Range: 0-44m/h (0~70km/h) [Installation Dependent]
• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
Compression
• MicroSD Card Slot for Local Recording (Up to 128GB)
• One Channel Audio Input + One Channel Audio Output*
• One Channel Alarm Input + One Channel Alarm Output
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Wall Mount Included and Optional Junction Box VT-TJB01 Available
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
*Please research local, state and federal laws regarding audio surveillance.
VTC-TNB2LPR
2 MegaPixel License Plate
Recognition WDR IP Motorized
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
Bullet Camera
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek Transcendent Series
Summary of Contents for Vitek Transcendent Series
- Page 1 VTC-TNB2LPR Transcendent Series 2 MegaPixel License Plate Recognition WDR IP Motorized Bullet Camera QUICK START GUIDE FEATURES: • Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing Color Images in Very Dark & Night Scenes • 1/2.8” 2.0 Megapixel CMOS Image Sensor •...
-
Page 2: Components And Accessories
Components and Accessories Anchors Hex Wrench Overview Reset... -
Page 3: Cable Connections
Cable Connections First connect the weather resistant cap to an ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power cable to an approved 12VDC power supply. weather resistant cap Weather Resistant Network Coupler 1. -
Page 4: Installation
Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Attach the drill template to the place where you want to install the camera, then drill .2”... - Page 5 Installation 3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then tighten the mount lock to secure the viewing angle adjustments. 4. Open the cover of the camera as shown in the following figure, then insert a MicroSD card. Insert MicroSD Card 5.
-
Page 6: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. - Page 7 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 8: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 9 DETAILED SPECIFICATIONS - VTC-TNB2LPR Image Sensor 1/2.8” 2.0 Megapixel Progressive Scan CMOS Image Size 2 MegaPixel (1920 × 1080) Resolution 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240 Min. Illumination 0.0026 lux@F1.2,AGC ON; 0 lux with IR / 0.005 lux@F1.6, AGC ON; 0 lux with IR Electronic Shutter 1 / 25 s ~ 1 / 100000s Lens...
- Page 10 Other Great Transcendent Products! Accessories VT-TJB01 Optional Junction Box for Use with VT-TPLMT VT-TCNMT Select Transcendent Transcendent Bullet Transcendent Universal Pole Cameras including Univeral Mount Corner Mount VTC-TNB2LPR Recorders Pair with VITEK Transcendent Series Network Recorders Supporting Advanced Analytics and PoE!
- Page 11 Also Consider Vitek Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 12: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
