8.1.2.

Connections

Connections 12/24/48 VDC wide-range power supply unit:

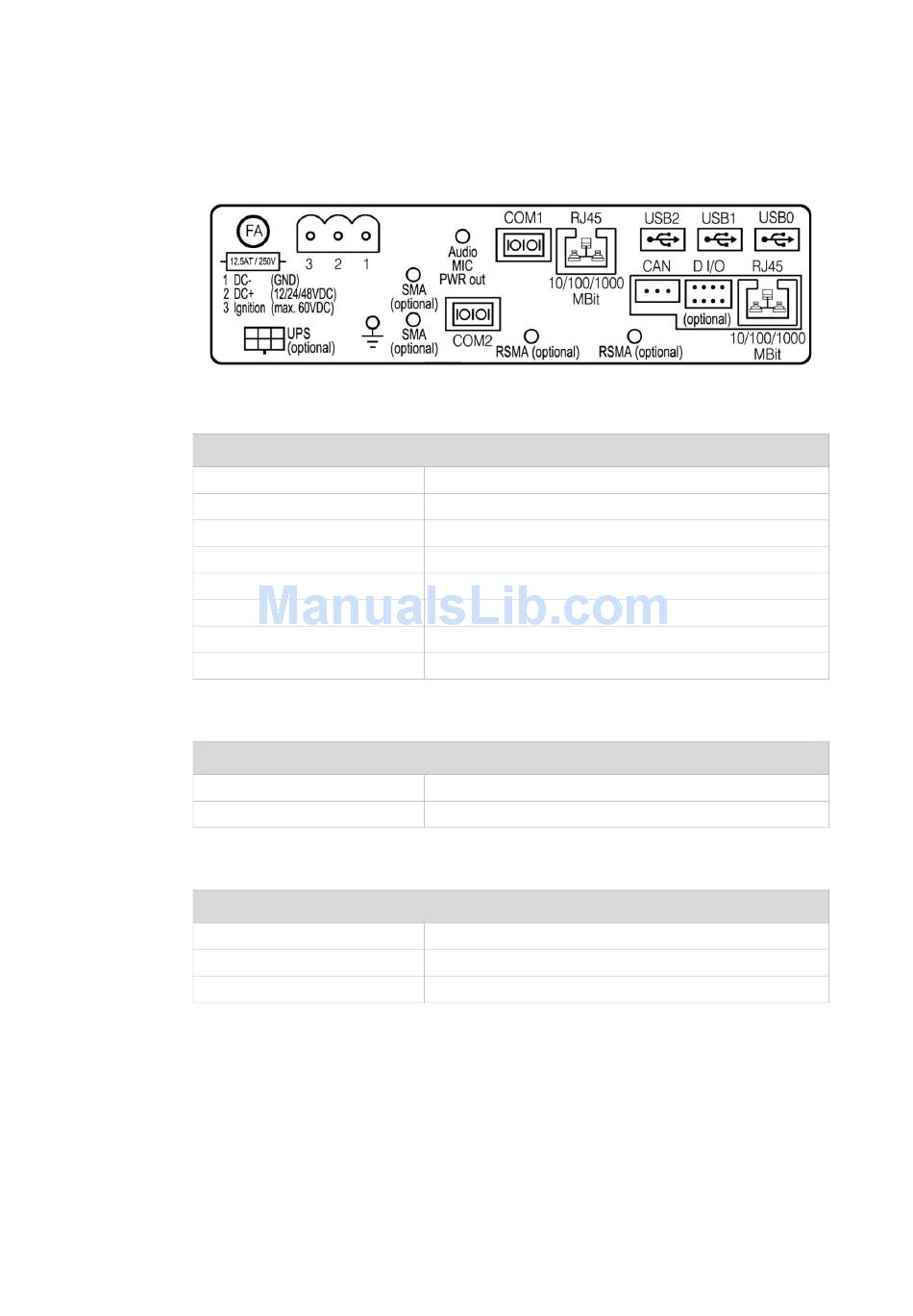

Fig. 8.2: External connections 12/24/48 VDC devices detail view

Pin assignment (standard)
Power supply
UPS (optional)
2 x SMA (optional)
Audio MIC PWR out
COM1, COM2
2 x RSMA (optional)
RJ45
USB2, USB1, USB0
Expansion interfaces package 1 (optional)
D I/O
RJ45
Expansion interfaces package 2 (optional)
CAN
D I/O
RJ45
Advantech-DLoG
12/24/48 VDC nominal
Uninterruptible power supply (UPS)
WWAN/GPS
Voice Kit
Serial interfaces
Remote WiFi antenna(s)
LAN Ethernet 10/100/1000 MBit/s
USB 2.0 interfaces (HI-SPEED™), bootable
Digital In/Out
LAN Ethernet 10/100/1000 MBit/s
CAN interface
Digital In/Out
LAN Ethernet 10/100/1000 MBit/s
DLT-V83 Series Manual V1.31
Power supply units, pin assignment, power supply
Page 91 of 178
