IPEX2000 Series Quick Install Guide

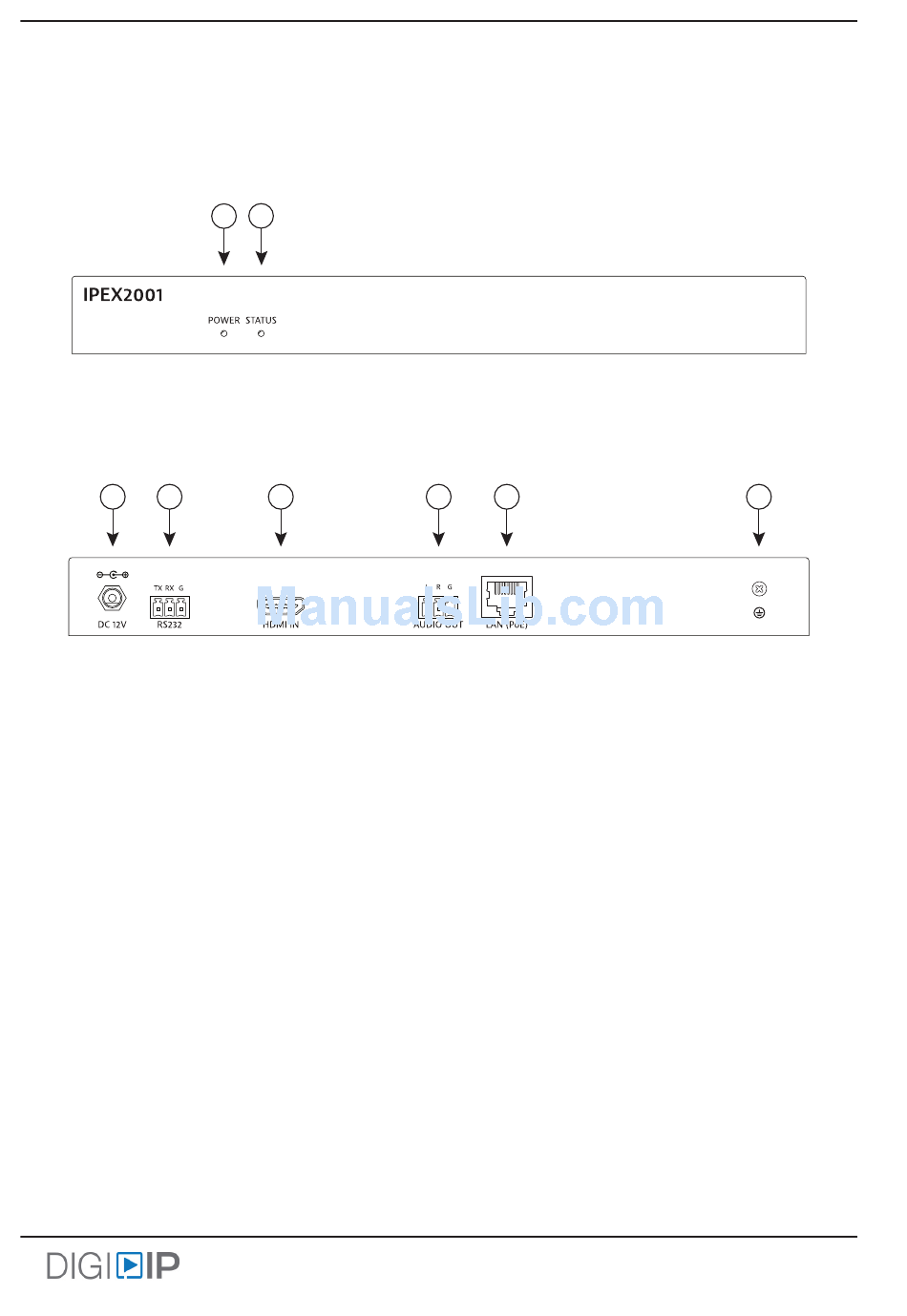

IPEX2001 Front Panel
1. Power indicator
2. Status indicator
IPEX2001 Rear Panel
A B
A. 12V DC power input
B. RS232 Connection
C. HDMI input
D. Analog audio output
E. LAN connection with PoE support
F. Ground screw
6

Front and Rear Panels

1 2
C D E F
