Technical Specifi cations
Supported Audio and Video
Maximum Video Compatibility with Cat 6
60 m: Deep Color 36/30/24 Bit at 1080p
35 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k
Maximum Video Compatibility with shielded Cat 6
70 m: Deep Color 36/30/24 Bit at 1080p
or greater cable and shielded connectors
40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k
Video Compliance
HDMI, HDCP, and CEC (Consumer Electronics Control)
Embedded Audio
Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
IR Carrier Frequency Range
33-55kHz at 5 volts
RS232 Baud Rate
Up to 115200 baud
HDBaseT Signal Characteristics
Maximum Distance
70 m
Cable Requirements
Category 6 or greater with TIA/EIA-568B crimp pattern
Bandwidth
10.2 Gbps
Chassis and Environmental
Dimensions
135mm x 74mm x 15mm (5.31 in. x 2.91 in. x 0.59 in.)
Operating Temperature (Environment)
0° to +40° C (+32° to +104° F)
Operating Temperature (Chassis)
31° C (88° F) (S); 38° C (100° F) (R)
Operating Humidity (Environment)
20% to 90%, Non-condensing
Power
Maximum Power Consumption
3 watts (S), 6 watts (R)
Power Supply Input Voltage
100-240V AC at 50-60 Hz
Power Supply Output Voltage
18V DC
Regulatory
CE, RoHS
Other
Standard Warranty
2 Years
Included Items
Installation Guide, Power Supply, US Power Cable, IR Transmitters (2 ea), IR Receivers
(2 ea), Mounting Brackets (4 ea), Mounting Screws (4 ea)
11675 Ridgeline Dr.
Colorado Springs, CO 80921
Toll-Free: 800-530-8998
Fax: 719-260-0075
www.libav.com

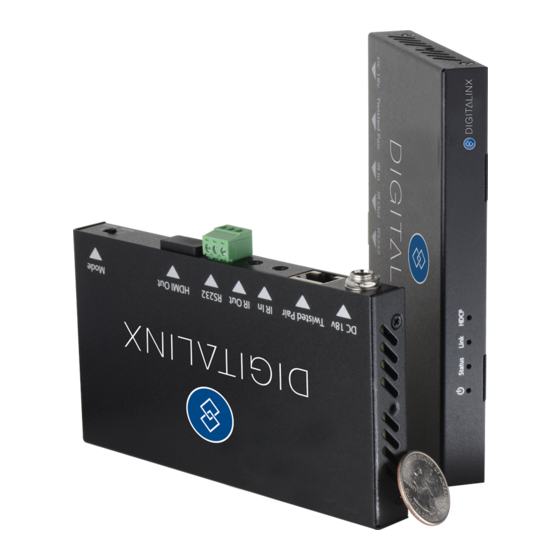

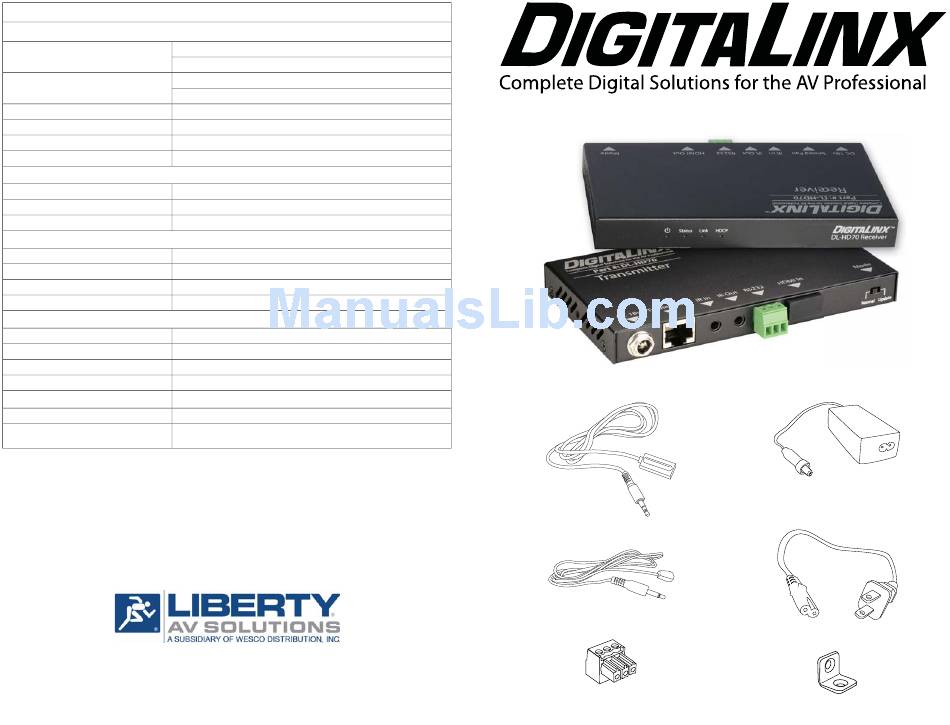

DL-HD70 Installation Guide
Included Accessories:
IR Receiver (IR eye) - 2 ea
IR Transmitter (IR emitter) - 2 ea
3-pole Terminal Block - 2 ea
(attached to the extenders)
rev 140204
Power Supply with
locking connector
US Power Cable
Mounting brackets with screws - 4 ea
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DigitaLinx DL-HD70
Summary of Contents for DigitaLinx DL-HD70
- Page 1 70 m: Deep Color 36/30/24 Bit at 1080p or greater cable and shielded connectors 40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k DL-HD70 Installation Guide Video Compliance HDMI, HDCP, and CEC (Consumer Electronics Control) Embedded Audio...
- Page 2 DL-HD70 extender. Passing IR Signals: The DL-HD70 is capable of passing IR signals between 33 and 55 KHz. To prevent damage to any of the electronics, the extenders should be powered off while inserting or removing any IR components. Inserting an IR transmitter into the IR IN port may damage the IR circuit for that extender.
