DL-HD70LS-H2 Quick Install Guide
This guide is for quick installation only.
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 181008
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075
Advertisement
Related Manuals for DigitaLinx DL-HD70LS-H2
Summary of Contents for DigitaLinx DL-HD70LS-H2
- Page 1 DL-HD70LS-H2 Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 181008...
-
Page 3: Product Overview

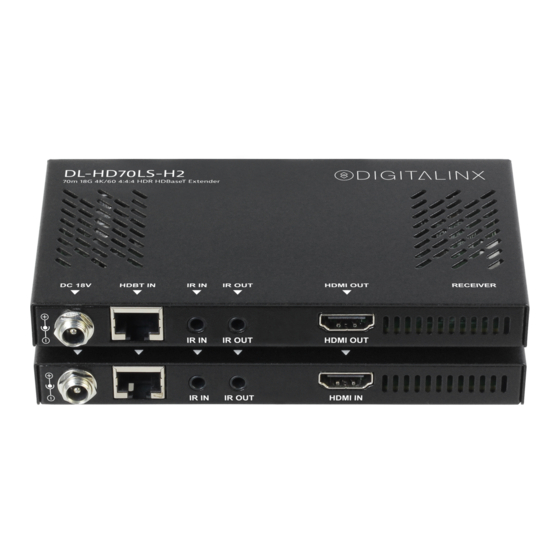

Category 6 twisted pair cable. The extender set support HDCP versions up to 2.2. With its slim design the DL-HD70LS-H2 is easy to install in the tightest of spaces. Built in re-clocking circuitry ensures that extender set is backwards compatible with older HDMI version chip sets. - Page 4 DL-HD70LS-H2 Quick Guide Transmitter and Receiver View RECEIVER TRANSMITTER 1. DC 18V - Locking power supply port (receiver) 2. HDBT IN - HDBaseT input; RJ45 connection 3. IR IN - 3.5mm IR input port for connection to IR receiver or 3rd party IR system 4.
- Page 5 3. Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions. 4. Connect Category 6 or greater twisted pair cable with RJ45 connectors between the DL-HD70LS-H2 transmitter and the receiver. TIA/EIA-568B straight-through wiring connections must be used with all HDBaseT extenders.
- Page 6 Cabling Wiring Requirements HDBaseT Cabling To ensure proper performance of the DL-HD70LS-H2, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably over longer distances.
-
Page 7: Technical Specifications
DL-HD70LS-H2 Quick Guide Technical Specifications Supported Audio and Video Video Compliance HDMI 2.0+, HDCP2.2, and CEC (Consumer Electronics Control) SMPTE: Up to 4096x2160@60Hz (4:4:4 chroma sub-sampling / 8 bit deep Input / Output Resolution Support color) VESA: Up to 1920x1200... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
