Summary of Contents for DigitaLinx DL-DVI-S

  • Page 1 DL-DVI Installation and Operation Guide Rev 140512 11675 Ridgeline Dr Phone: 719-260-0061 Colorado Springs, CO 80921 Toll-Free: 800-530-8998 Fax: 719-260-0075...
  • Page 2: Important Safety Instructions

    DL-DVI Installation Guide Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions. »...
  • Page 3 DL-DVI Installation Guide...
  • Page 4: Table Of Contents

    DL-DVI Installation Guide Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panel Descriptions �������������������������������������������������������������������������������������������������������������� DL-DVI-S �������������������������������������������������������������������������������������������������������������������������������������������������������� DL-DVI-R100 �������������������������������������������������������������������������������������������������������������������������������������������������� DL-DVI-R250 �������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Quick Start ���������������������������������������������������������������������������������������������������������������������������������������������������� Connect Source ��������������������������������������������������������������������������������������������������������������������������������������������� Connect Display ������������������������������������������������������������������������������������������������������������������������������������������ Connect Power �������������������������������������������������������������������������������������������������������������������������������������������� Adjust Signal �����������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 5: Product Overview

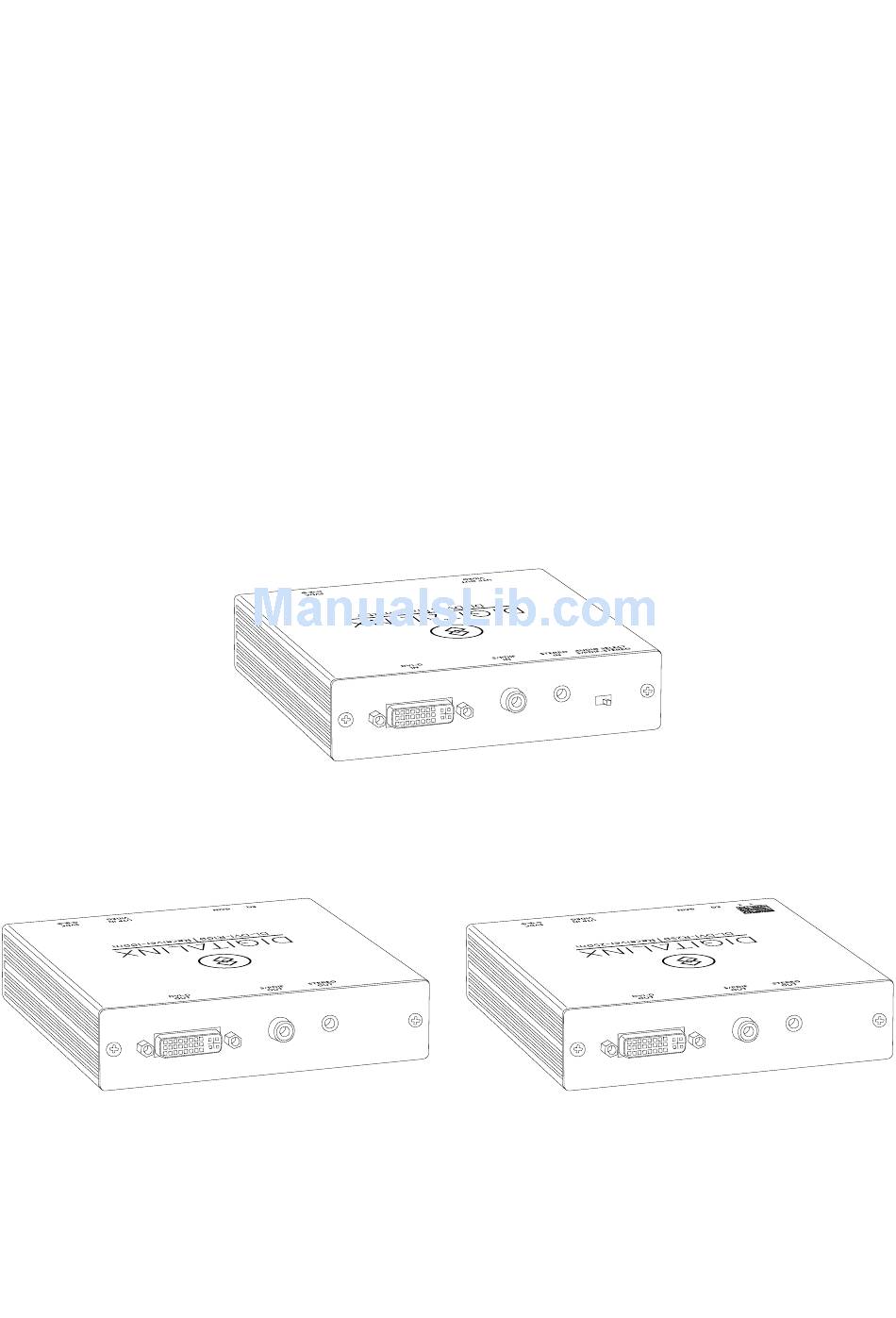

    The unique locking power connectors are used to enhance overall system security. The DL-DVI-S transmitter provides a built-in EDID table as a standard feature. The DL-DVI-S, used in conjunction with the DL-DVI-R100 receiver, can achieve distances up to 100 meters (328 feet). Use of the DL-DVI-R250 receiver can increase distances up to 250 meters (820 feet).
  • Page 6: Package Contents

    DL-DVI Installation Guide Package Contents The DL-DVI extender in the package will vary depending upon the product ordered. DL-DVI-S DL-DVI-R100 DL-DVI-R250 Please verify the following items are in the product box prior to installation of the DL-DVI extenders. AU, EU, and UK AC...

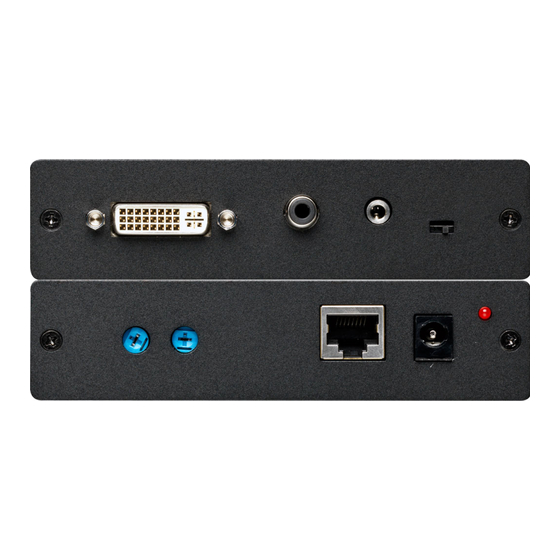

  • Page 7: Front And Rear Panel Descriptions

    DL-DVI Installation Guide Front and Rear Panel Descriptions DL-DVI-S DVI-D Input Twisted Pair (UTP) Output S/PDIF Input 5V DC Input Analog Audio Input Power LED Audio Selection Switch DL-DVI-R100 DVI-D Output EQ Adjustment S/PDIF Output Gain Adjustment Analog Audio Output...
  • Page 8: Installation Instructions

    Apply power Adjust signal Connect Source Connect the video source to the DL-DVI-S with a DVI-D cable. Set the audio selector switch to the audio connection that will be used in the installation. If using S/PDIF audio, connect the audio source to the DL-DVI-S with a coaxial S/PDIF cable.
  • Page 9 Or n e P n 3 Green/Wh te P n 4 Blue P n 5 Blue/Wh te P n 6 Green P n 7 Brown/Wh te P n 8 Brown Connect the Category cable to the UTP port on the DL-DVI-S.
  • Page 10: Connect Display

    DL-DVI Installation Guide Connect Display Connect the DL-DVI-R100 or DL-DVI-R250 to the display with a DVI-D cable. If using S/PDIF audio, connect the audio output device to the DL-DVI-R100 or DL-DVI-R250 with a coaxial S/PDIF cable. If using analog audio, connect the audio output device to the DL-DVI-R100 or DL-DVI-R250 with a 3.5 mm stereo audio cable.
  • Page 11: Connect Power

    DL-DVI Installation Guide Connect Power Connect the power supply to the 5V DC port on the DL-DVI-S. Connect the power supply to the 5V DC port on the DL-DVI-R100 or DL-DVI-R250.
  • Page 12: Adjust Signal

    DL-DVI Installation Guide Adjust Signal The DL-DVI-R250 features switches to provide a boost to the incoming signal based on the cable distance between the transmitter and the receiver. 250M 150M 100M If the image is blurry, adjust the EQ setting on the receiver until the image becomes clear.
  • Page 13: Troubleshooting

    DL-DVI Installation Guide Troubleshooting Extender does not power on » Verify power outlet is active. Verify power supply is functioning properly by using on another extender. » Cannot see image » Verify video source provides video to local display. » Verify display provides video to local video source.
  • Page 14: Technical Specifications

    Installation Guide, Wall Mount Power Supply, Power Supply Adapters (US, EU, UK, AU), Alignment Screwdriver Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches. DigitaLinx specifications are based on straight-through cabling with standard-grade Cat 5e unless noted otherwise.
  • Page 15 DL-DVI Installation Guide...
  • Page 16 Thank you for your purchase. Please contact us with your questions and comments. 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998 www.libav.com Digitalinx is a brand of:...
