Owner's Manual
DL-HDE100 Installation Guide

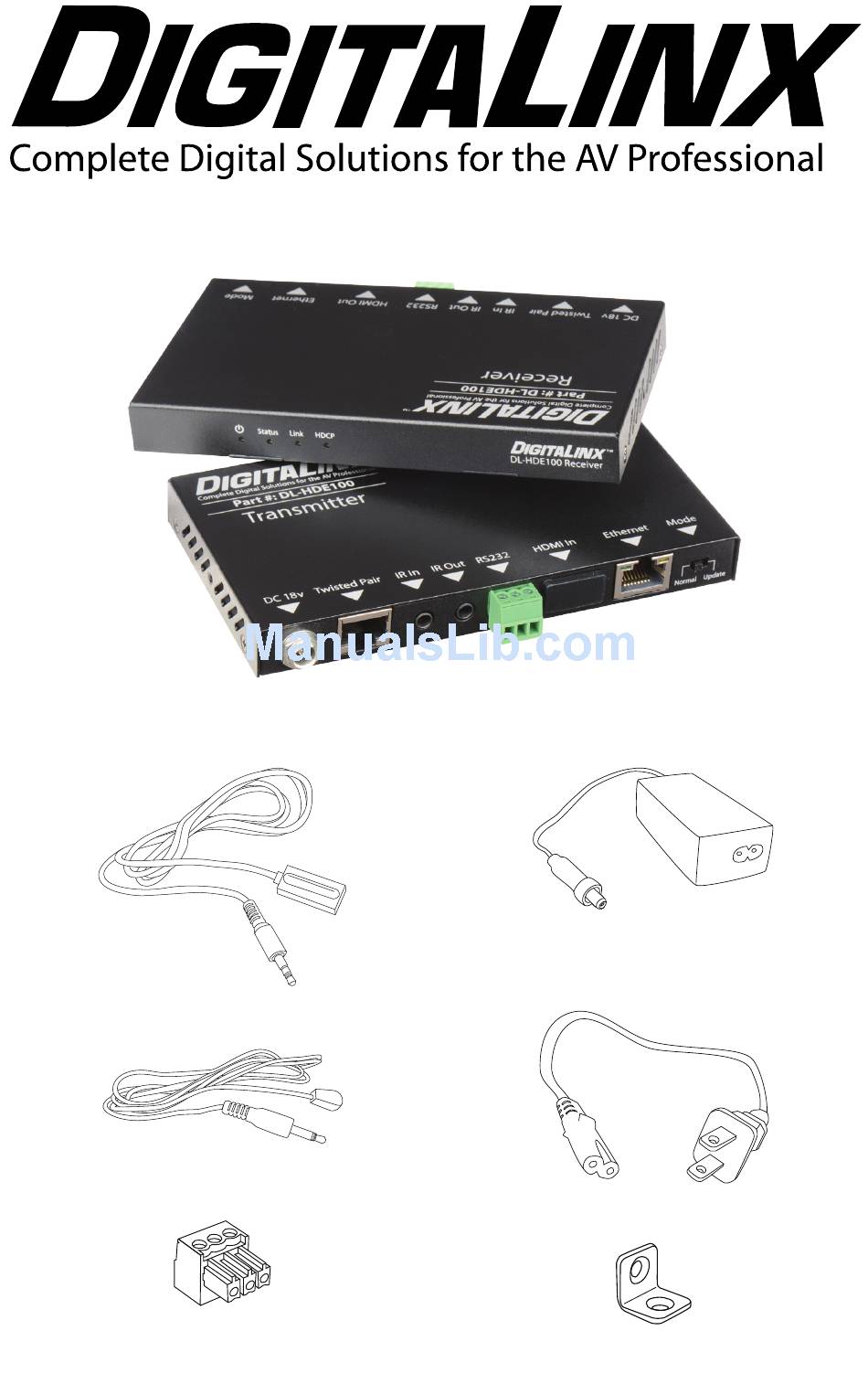

Included Accessories:
Power Supply with
locking connector
IR Receiver (IR eye) - 2 ea
IR Transmitter (IR emitter) - 2 ea
US Power Cable
3-pole Terminal Block - 2 ea
Mounting brackets with screws - 4 ea
(attached to the extenders)
Advertisement
Related Manuals for DigitaLinx DL-HDE100
Summary of Contents for DigitaLinx DL-HDE100
- Page 1 DL-HDE100 Installation Guide Included Accessories: Power Supply with locking connector IR Receiver (IR eye) - 2 ea IR Transmitter (IR emitter) - 2 ea US Power Cable 3-pole Terminal Block - 2 ea Mounting brackets with screws - 4 ea...
- Page 2 The 18 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected. The DL-HDE100 is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.
- Page 3 8. Power on attached audio/video devices. Passing IR Signals: The DL-HDE100 is capable of passing IR signals between 33 and 55 KHz. To prevent damage to any of the electronics, the extenders should be powered off while inserting or removing any IR components.
-
Page 4: Technical Specifications
Technical Specifications Supported Audio and Video Maximum Video Compatibility 100 m: Deep Color 48/36/30/24 Bit at 1080p, 3D, and 4k x 2k Video Compliance HDMI, HDCP, and CEC (Consumer Electronics Control) Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio IR Carrier Frequency Range 33-55kHz at 5 volts RS232 Baud Rate...
