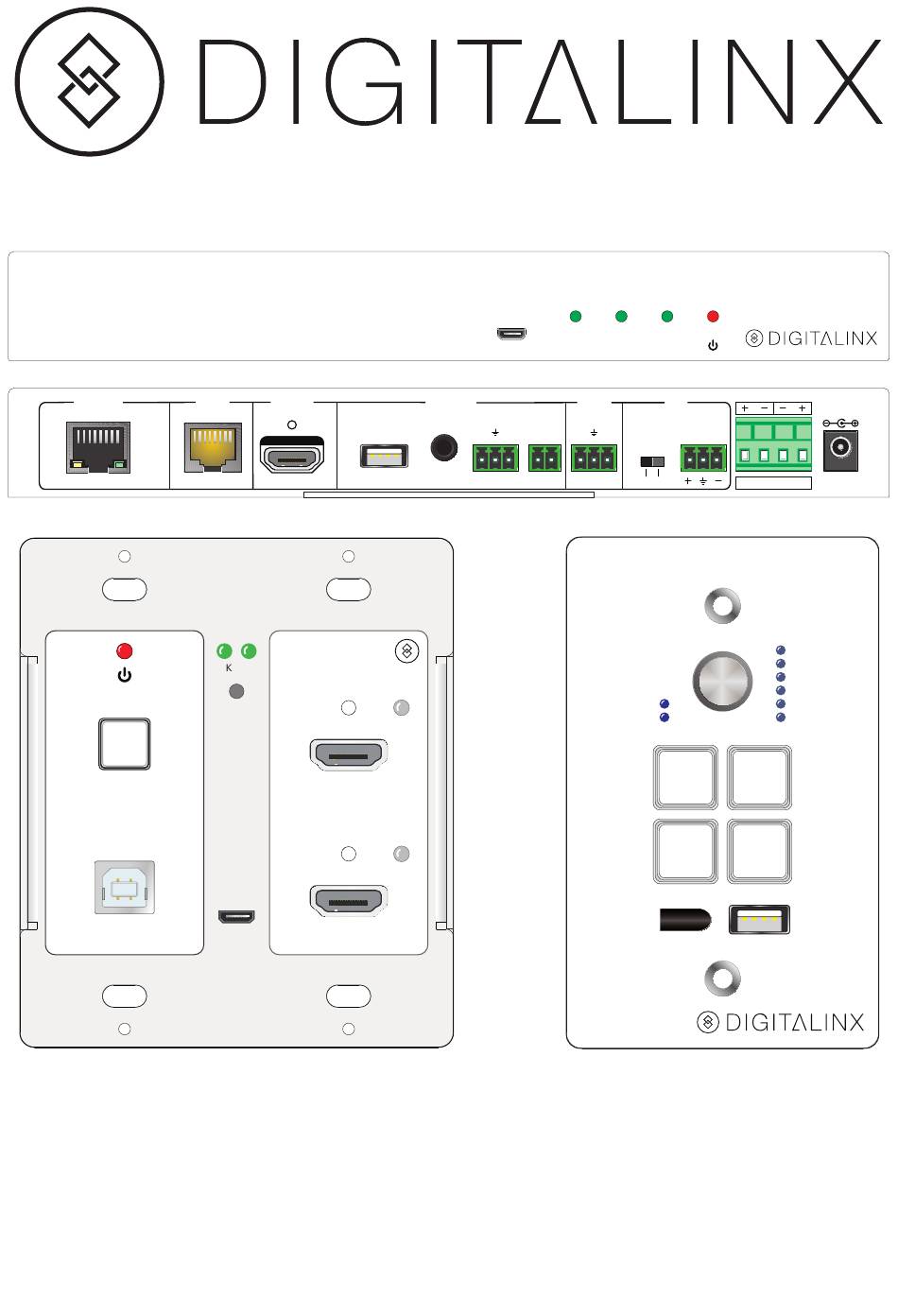

DL-RMKTC2H-W Installation Guide
DL-RMKTC2H-2
RX / Receiver
NETWORK
TCP/IP
SOURCE SELECT
TO PC
The Digitalinx DL-RMKTC2H-W is a multi-function AV distribution system designed to provide
HDMI video switching, system control, video extension and analog audio amplification in
a convenient kit. Utilizing the Valens Colligo VS2110 series chips, power, control, video up
to 1080p, and audio are transported over a single 30m (98 ft) solid core Category 5e cable
between the wall plate transmitter and the receiver. The wall plate control module connects
to the wall plate transmitter with a second Category 6 cable. All the power needed for the
system is provided by the receiver. Additionally, the receiver features a built-in web GUI for
control and analog audio de-embedding to a built-in 2x20 watt stereo amplifier.
INPUT
OUTPUT
HDBT IN/PoC
TO DISPLAY
TOUCHSCREEN
LIN
HDCP
RESET
HDMI IN 1
HDMI IN 2
FIRMWARE
FIRMWARE
CONTROL
TX
RX
FROM
REMOTE
IR OUT
RS232
MUTE
ON
LINK
HDCP
AUDIO
MIC
MIC
L
R
MIC
LINE OUT
LINE
MIC
SOURCE
VOLUME
ON
HDMI 1
HDMI 2
IR
CONFIG
24V DC
2x20 Watts @ 4Ω
OFF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-RMKTC2H-2 and is the answer not in the manual?

Questions and answers

Related Manuals for DigitaLinx DL-RMKTC2H-2

Summary of Contents for DigitaLinx DL-RMKTC2H-2

  • Page 1 FIRMWARE CONFIG The Digitalinx DL-RMKTC2H-W is a multi-function AV distribution system designed to provide HDMI video switching, system control, video extension and analog audio amplification in a convenient kit. Utilizing the Valens Colligo VS2110 series chips, power, control, video up to 1080p, and audio are transported over a single 30m (98 ft) solid core Category 5e cable between the wall plate transmitter and the receiver.

  • Page 2: Included Accessories

    Included Accessories • DL-RMKTC2H-W Control Keypad, Transmitter and Receiver Set • Locking Power Supply with US Power Cable • USB Type A to Type B Cable • IR Emitter • Two Mounting Rails with Screws • Six Wall Box Screws •...

  • Page 3: Receiver Front Panel

    Receiver Front Panel DL-RMKTC2H-W RX / Receiver LINK HDCP FIRMWARE 1. Firmware Update Port 2. System Power Indicator 3. HDBaseT Link Indicator 4. HDCP Status Indicator 5. Receiver Power Indicator Receiver Rear Panel NETWOR INPUT OUTPUT CONTROL AUDIO FROM REMOTE TCP/IP HDBT IN/PoC TO DISPLAY...

  • Page 4: Transmitter Front

    Transmitter Front 1. Power Indicator and Source Select Button HDCP RESET 2. Link and HDCP Status LEDs and Reset Button 3. HDMI Input 1 with Activity Indicator SOURCE SELECT HDMI IN 1 4. USB Port to Host PC 5. Firmware Update Port 6.

  • Page 5: Control Panel Front

    Control Panel Front 1. Mic/Source Indicator 2. System/Display On Button 3. HDMI Input 1 Select Button SOURCE VOLUME 4. IR Receiver 5. Multifunction Volume Control with Volume Level Indicator HDMI 1 HDMI 2 6. System/Display Off Button 7. HDMI Input 2 Select Button CONFIG 8.

  • Page 6: Cabling Requirements

    Cabling Requirements To ensure proper performance of the DL-RMKTC2H-W, it is recommended that you use solid core Category 6 F/UTP cabling at a minimum between control keypad and transmitter and between transmitter and receiver. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably.
  • Page 7 Speaker Wiring Configurations 4 Load with 4 Speakers – – 4 Load with 8 Speakers – – – –...

  • Page 8: Installation Instructions

    Installation Instructions 1. Verify all components included with the DL-RMKTC2H-W are present before installation. 2. Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions. 3. Attach the included rubber feet or mounting ears to the receiver. 4.

  • Page 9: Web Browser Configuration

    Web Browser Configuration The default IP address of the DL-RMKTC2H-W is 192.168.0.178. This can be changed in the Network settings. Logging In To change the settings of the web browser interface or program RS232 commands for the display, log into the DL-RMKTC2H-W as an administrator. The User Name is admin and the default Password is admin.
  • Page 10 Device Control Screen HDMI Switch between HDMI 1 and HDMI 2. Display Turn the display on or off. System Turn the system on or off. Volume Mute and unmute audio sources. Volume may be changed by pressing the “+” or “-“ buttons or by dragging the volume slider.
  • Page 11 Setting Tab Password Change the password for the admin and user login screen. Display Control Select Select whether the display will be controlled via IR or RS232. Display/Power Sync Select whether the display and system will be powered on and off simultaneously. This option is only active if the display is controlled via RS232.
  • Page 12 Command Tab (RS232 Display Control) This tab defines the RS232 display control commands. If a display requires hex commands, make sure the Hex box is checked. Display On / Display Off Enter the RS232 command to turn ON or OFF the display. Input Select Enter the RS232 command to switch to the display or projector input which is connected to the DL- RMKTC2H-W Receiver.

  • Page 13: Network Tab

    Network Tab DHCP/Static IP Select whether the system will use a static IP or will be provided an IP via DHCP. IP Address Enter the IP address for the system. Subnet Mask Enter the subnet mask for the system. Gateway Enter the gateway address for the system.

  • Page 14: Transmitter Operation

    Transmitter Operation Plugging in an HDMI source will automatically switch to that input. Pressing the Source Select button will switch sources. Control Keypad Operation The DL-RMKTC2H-W systems control keypad can control the systems power status as well as the displays power status by either RS232 or IR. When RS232 is used to control the display, the DL-RMKTC2H-W system can be configured to synchronize with the power of the display simultaneously or can be programmed so system power and display power can be controlled separately.
  • Page 15 Control Keypad Operation (continued) IR Display Control - IR Learning Mode Configuration Follow the instructions below to enter IR learning mode to program IR ON / OFF commands so the DL-RMKTC2H-W keypad can control display power. Enter IR Learning Mode Press and hold the HDMI 1 button on the Control Panel for three seconds.
  • Page 16 RS232 Display Control When RS232 is used to control the display, the DL-RMKTC2H-W system can be configured to synchronize with the power of the display simultaneously or can be programmed so system power and display power can be controlled separately. Programming System and Display Simultaneous Power Control To program RS232 display control so the display and DL-RMKTC2H-W power status can be controlled simultaneously with the DL-RMKTC2H-W control keypad ON / OFF operation,...
  • Page 17 Control Keypad Operation (continued) Programming System and Display Power Control Separately To program RS232 display control so the display and DL-RMKTC2H-W power status can be controlled separately with the DL-RMKTC2H-W control keypad ON / OFF operation, navigate to the SETTING page in the web GUI and change the DISPLAY CONTROL SELECT option to RS232 and then change the DISPLAY POWER SYNC option to OFF.
  • Page 18 Control Keypad Operation (continued) Select Input Sources Press the HDMI 1 or HDMI 2 buttons on the Control Panel to select the appropriate source device. Volume Control Functions Turning the Volume knob clockwise will raise the volume; counterclockwise will lower the volume.
  • Page 19 Web Browser Control Operation The web browser control interface is an alternative method to control the system without having to interact with the Control Panel. The default IP address of the DL-RMKTC2H-W is 192.168.0.178. This can be changed in the Network settings by an administrator.
  • Page 20 Device Control Screen HDMI Switch between HDMI 1 and HDMI 2. Display Turn the display on or off. System Turn the system on or off. Volume Mute and unmute audio sources. Volume may be changed by pressing the “+” or “-“ buttons or by dragging the volume slider.
  • Page 21 Copy and Load Control Settings The system IR or RS232 configuration can be copied to a USB thumb drive and loaded into additional systems or be saved as a backup. Copy Control Settings Insert a 4GB or smaller FAT32 formatted thumb drive into the Configuration port on the front of the Control Panel.

  • Page 22: Fcc Statement

    FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. It has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 23: Technical Specifications

    Technical Specifications Supported Audio, Video and Control Maximum Video Compatibility Deep Color 48/36/30/24 Bit at 1080p Video Compliance HDMI 1.4, HDCP 1.4 HDMI EDID Pass-through from Display Embedded Audio Up to PCM 2 channel Analog Audio Frequency Re- 20Hz-20KHz sponse Analog Audio Output Impedance 50 Ω...
  • Page 24 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com Digitalinx is a brand of Liberty AV Solutions. 11675 Ridgeline Dr. Colorado Springs, CO 80921 Toll-Free: 800-530-8998 Fax: 719-260-0075 www.libav.com...
