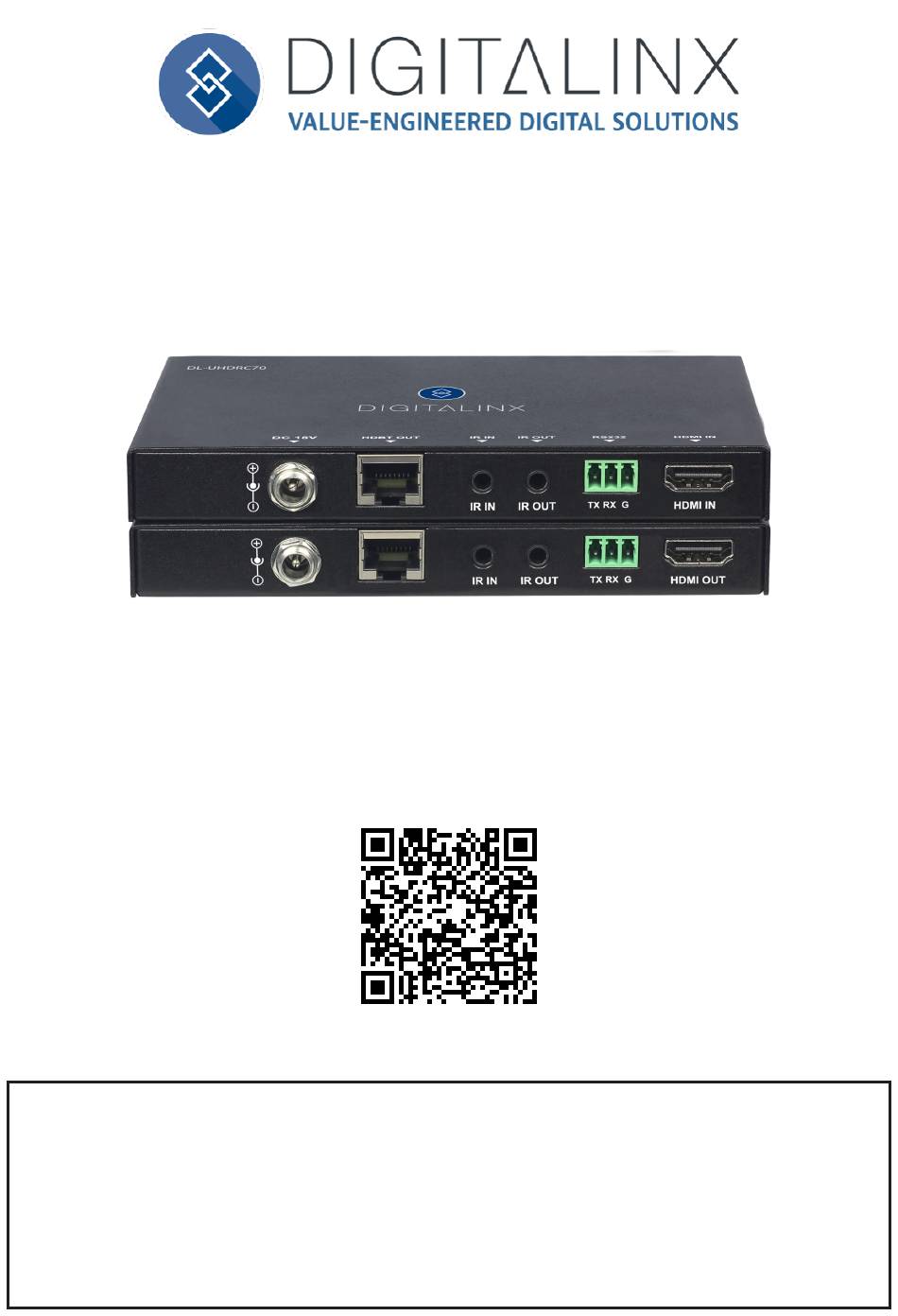

DL-UHDRC70 Quick Install Guide
For complete owners manual go to www.libav.com or use a QR code reader to
Important notice:
•
Do not attempt to disassemble or alter the housing. There are no user-serviceable parts
inside the unit. Doing so will void your warranty.
•
To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and
destination equipment must be powered off during installation.
•
Do not connect the device to a telecommunication outlet wired to unrelated equipment. Doing so may
damage the unit or any connected equipment. Ensure all connected twisted pair cabling is straight-through
(point-to-point).
•
Allow proper ventilation to reduce the risk of thermal failure.
This guide is for quick installation only.
access the manual via QR code below.
Scan QR Code with your Smart-phone or Tablet

Advertisement

loading
Need help?

Need help?

Do you have a question about the DL-UHDRC70-BSTK and is the answer not in the manual?

Questions and answers

Related Manuals for DigitaLinx DL-UHDRC70-BSTK

Summary of Contents for DigitaLinx DL-UHDRC70-BSTK

  • Page 1 DL-UHDRC70 Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR code reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Important notice: •...

  • Page 3: Front/Rear Panel

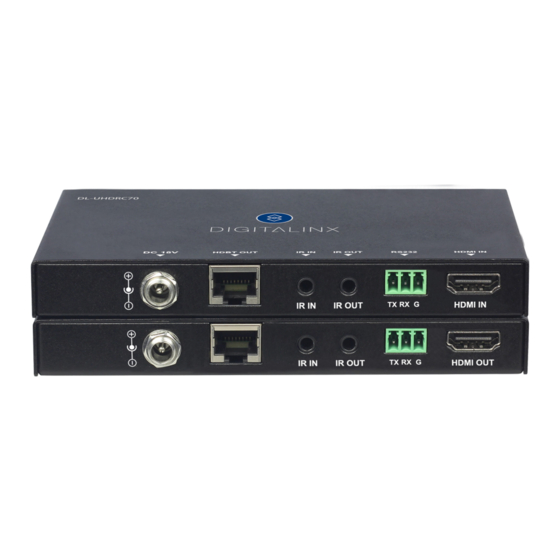

    DL-UHDRC70 Quick Guide The DigitaLinx DL-UHDRC70 is an HDBaseT extender that can extend uncompressed 4K video at a maximum of 3840x2160@60Hz/4:2:0, multichannel audio, bi- directional POC power, RS232 and bi-directional IR up to 40 meters (~130’) using a single Category 6 twisted pair cable. At 1080p@60Hz/4:4:4 the unit can extend up to 70 meters (~230’).

  • Page 4: Package Contents

    DL-UHDRC70 Quick Guide Package Contents • (1) DL-UHDRC70 HDBaseT TRANSMITTER • (1) DL-UHDRC70 HDBaseT RECEIVER • (1) DC18V 1A Power Adapter • (2) Phoenix 3.5mm 3 pin Male Connectors • (1) IR emitter • (1) IR eye • (4) mounting brackets Connectivity Instructions 1.

  • Page 5: Technical Specifications

    DL-UHDRC70 Quick Guide Technical Specifications VIDEO Video Input (Transmitter) (1) HDMI Video Output (Receiver) (1) HDMI Video I/O Connector (Transmitter / Receiver) (1) HDMI type A HDBaseT Connector (Transmitter / Receiver) (1) RJ45 HDBaseT Cable Requirements Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern Maximum Transmission Distance Transmits 1080P signal up to 60m via Cat5e/6 cable, 70m via Cat6a/7 cable.
  • Page 6 Thank you for your purchase. If you have any product issues please contact technical support by phone at 800-530-8998 or by email at supportlibav@libav.com. DigitaLinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075...
