DL-HDE100-H2 Owners Manual
Rev 181010
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-HDE100-H2 and is the answer not in the manual?

Questions and answers

Summary of Contents for DigitaLinx DL-HDE100-H2

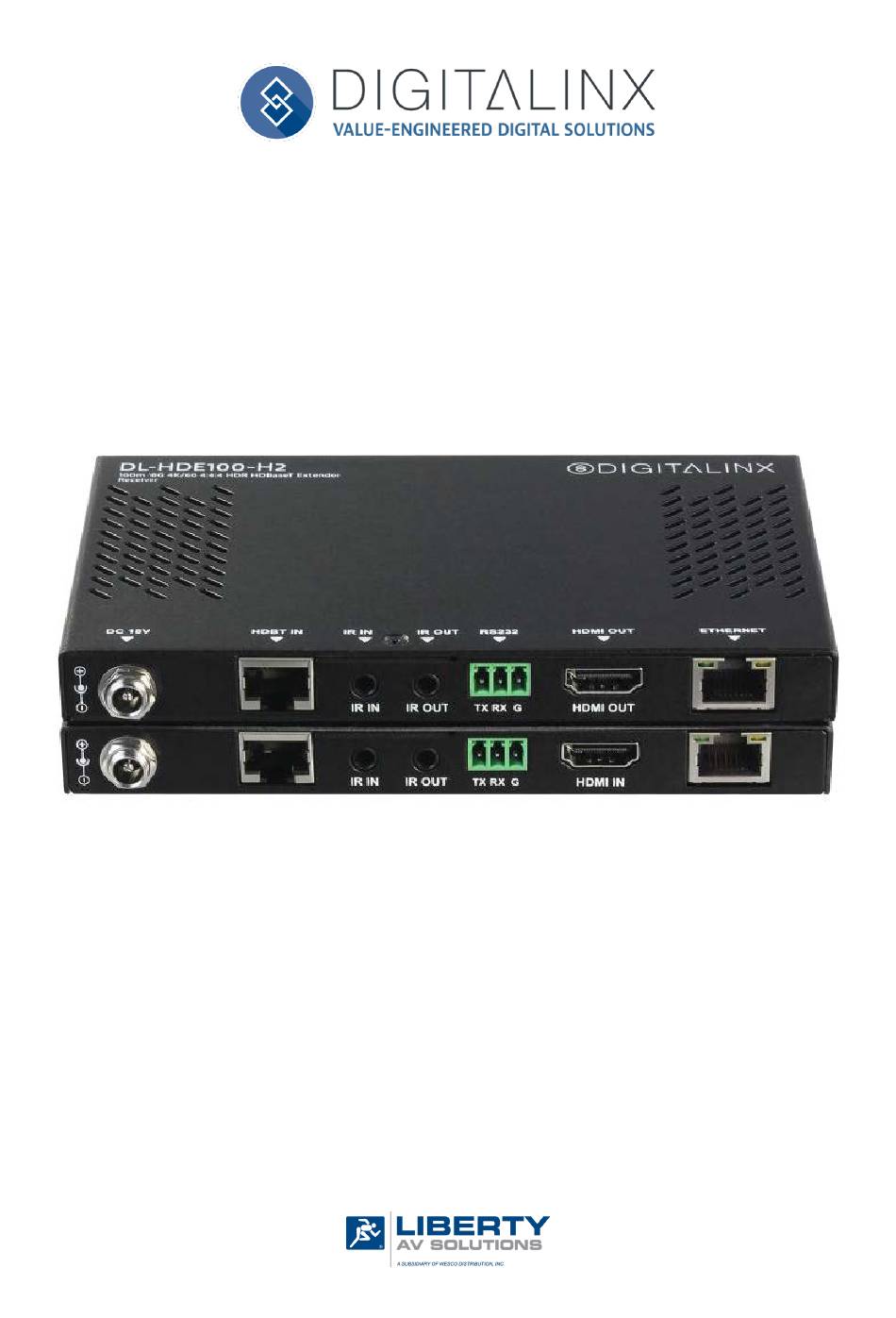

  • Page 1 DL-HDE100-H2 Owners Manual Rev 181010 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80921 Fax: 719-260-0075...
  • Page 2 DL-HDE100-H2 Owners Manual Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions.
  • Page 3: Table Of Contents

    DL-HDE100-H2 Owners Manual Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������� Transmitter / Front and Back View ��������������������������������������������������������������������������������������������������������������� Receiver / Front and Back View ��������������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Quick Start ���������������������������������������������������������������������������������������������������������������������������������������������������� Connecting a Video Source ���������������������������������������������������������������������������������������������������������������������������...
  • Page 4: Product Overview

    Dolby Atmos and DTS:X audio formats. Control extension supports bidirectional IR, Ethernet pass through and RS232 pass through. The DigitaLinx DL-HDE100-H2 can transport HDMI data rates up to 18Gbps up to 100 meters. The sys- tem enables high data rates by utilizing visually lossless compression at a 2:1 data compression rate when the signal surpasses 10Gbps, anything under 10Gbps will never be compressed.
  • Page 5: Front And Rear Panels

    DL-HDE100-H2 Owners Manual Front and Rear Panels Transmitter / Front and Back View 1. DC 12V - Locking power supply port (transmitter) 2. HDBT OUT - HDBaseT output; RJ45 connection 3. IR IN - 3.5mm IR input port for connection to IR receiver or 3rd party IR system 4.
  • Page 6: Receiver / Front And Back View

    DL-HDE100-H2 Owners Manual Receiver / Front and Back View 1. DC 12V - Locking power supply port (transmitter) 2. HDBT IN - HDBaseT input; RJ45 connection 3. IR IN - 3.5mm IR input port for connection to IR receiver or 3rd party IR system 4.
  • Page 7: Installation Instructions

    HDMI Input (Transmitter) Connect an HDMI source device to the HDMI input on the DL-HDE100-H2 transmitter labeled HDMI IN using an HDMI cable that is less than or equal to 5 meters in total length. For HDMI source devices that are further away, an active HDMI cable may be required to complete the connection.
  • Page 8: Hdbaset Connection

    DL-HDE100-H2 Owners Manual HDBaseT Connection Connect one end of a Category cable to the DL-HDE100-H2 transmitter labeled HDBT OUT, then connect the other end of the Category cable to the DL-HDE100-H2 receiver labeled HDBT IN Twisted Pair Wiring TIA/EIA-568B Use TIA/EIA-568B wiring for Category 6...
  • Page 9: Connecting Ir Control

    Attach the IR emitter to the IR receiver of the display device, insert the TS 3.5 mm plug of the emitter to the IR OUT port of the DL-HDE100-H2 receiver. Insert the TS 3.5 mm plug of the IR receiver (eye) to the IR IN port of the DL-HDE100-H2 transmitter.
  • Page 10: Apply Power

    DL-HDE100-H2 Owners Manual Apply Power Connect the included power supply to the transmitter or receiver and lock the power supply to the power connector by twisting the locking collar clockwise. It is not required that both the transmitter and receiver be...
  • Page 11: Application Diagrams

    DL-HDE100-H2 Owners Manual Application Diagrams HDMI Extension / Bi-Directional IR Control IR Remote Disc Player IR Emitter (2) IR Eye (1) HDMI CATx IR Eye (2) IR Emitter (1) Display IR Remote...
  • Page 12: Hdmi Extension / Control System Ir Control

    DL-HDE100-H2 Owners Manual HDMI Extension / Control System IR Control Control System / AV Switcher IR-AC CABLE HDMI CATx IR Emitter Display...
  • Page 13: Hdmi Extension / Control System Rs232 Control

    DL-HDE100-H2 Owners Manual HDMI Extension / Control System RS232 Control Laptop Control System HDMI CATx RS232 Display...
  • Page 14: Technical Specifications

    DL-HDE100-H2 Owners Manual Technical Specifications Supported Audio and Video Video Compliance HDMI 2.0a, HDCP 2.2, and CEC (Consumer Electronics Control) SMPTE: Up to 4096x2160@60Hz (4:4:4 chroma sub-sampling / 8 bit Input / Output Resolution Support deep color) VESA: Up to 1920x1200...
  • Page 15 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
