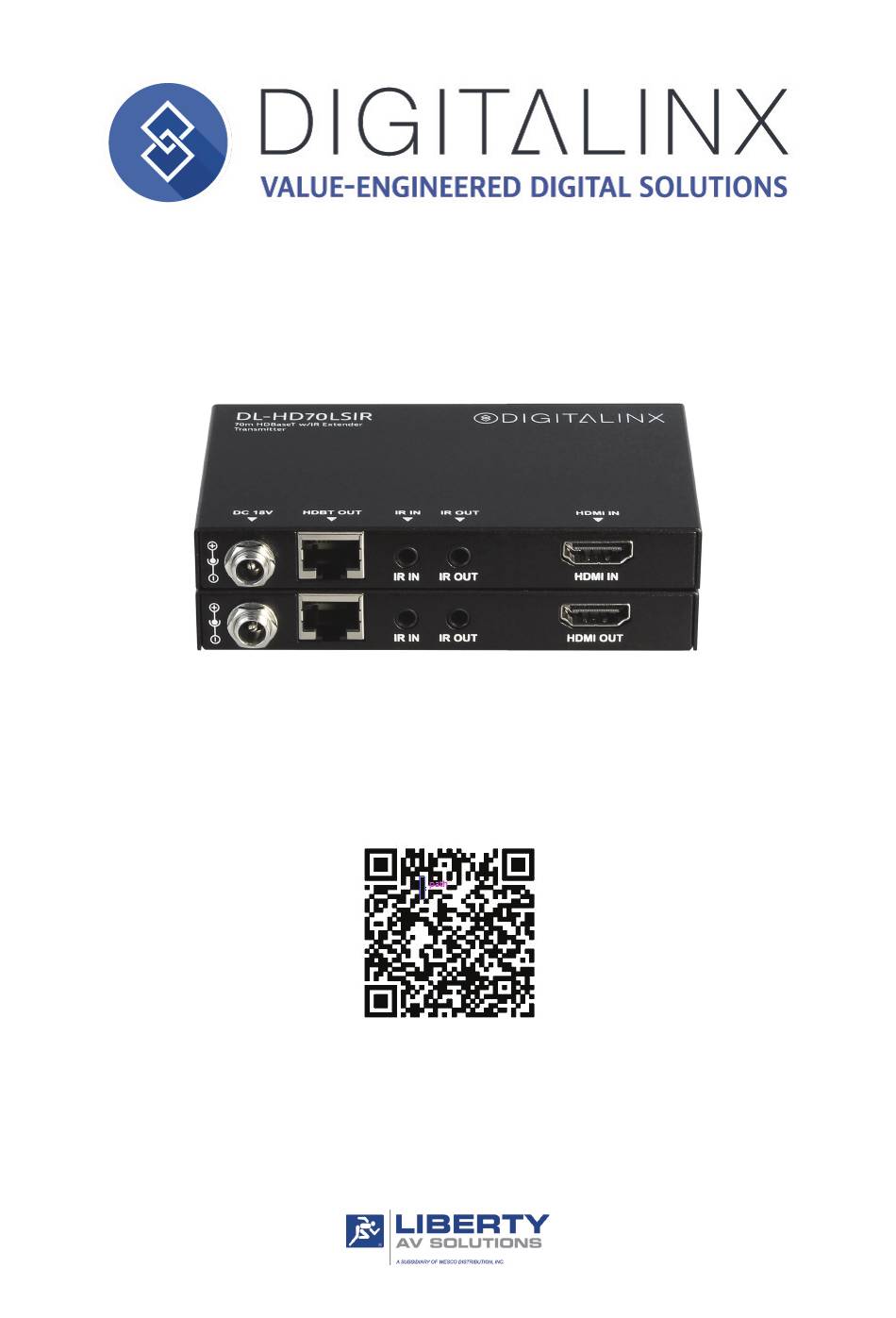

DL-HD70LSIR Quick Install Guide
This guide is for quick installati on only.
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 181116
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075
Advertisement
Related Manuals for DigitaLinx DL-HD70LSIR
Summary of Contents for DigitaLinx DL-HD70LSIR
- Page 1 DL-HD70LSIR Quick Install Guide This guide is for quick installati on only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet...
-
Page 2: Product Overview

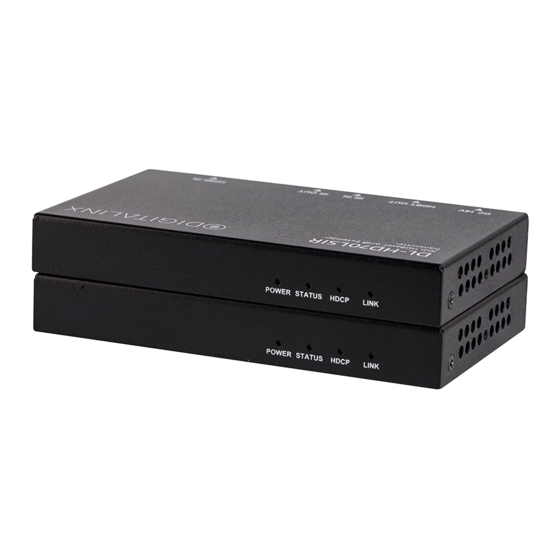

The DL-HD70LSIR is sold only as a set. The individual transmitt er and receiver are not compati ble with other HDBaseT devices due to proprietary PoE circuitry. - Page 3 DL-HD70LSIR Quick Guide Transmitt er and Receiver View TRANSMITTER RECEIVER 1. DC 18V - Locking power supply port (transmitt er) 2. HDBT OUT - HDBaseT output; RJ45 connecti on 3. IR IN - 3.5mm IR input port for connecti on to IR receiver or 3rd party IR system 4.
- Page 4 6. Connect an HDMI cable and any desired IR control accessories between the source and the DL-HD70LSIR transmitt er. 7. Connect the included power supply to the DL-HD70LSIR transmitt er or receiver and lock the power supply to the power connector by twisti ng the locking collar clockwise.
- Page 5 Cabling Wiring Requirements HDBaseT Cabling To ensure proper performance of the DL-HD70LSIR, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably over longer distances.
-
Page 6: Technical Specifications
DL-HD70LSIR Quick Guide Technical Specifi cati ons Supported Audio and Video Video Compliance HDMI 2.0+, HDCP2.2 SMPTE: Up to 4096x2160@60Hz (4:2:0 chroma sub-sampling / 8 bit deep Input / Output Resoluti on Support color) VESA: Up to 1920x1200 Maximum Pixel Clock... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
