DL-1H1A1U-WPKT-W Install Guide
Rev 181219
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-1H1A1U-WPKT-W and is the answer not in the manual?

Questions and answers

Summary of Contents for DigitaLinx DL-1H1A1U-WPKT-W

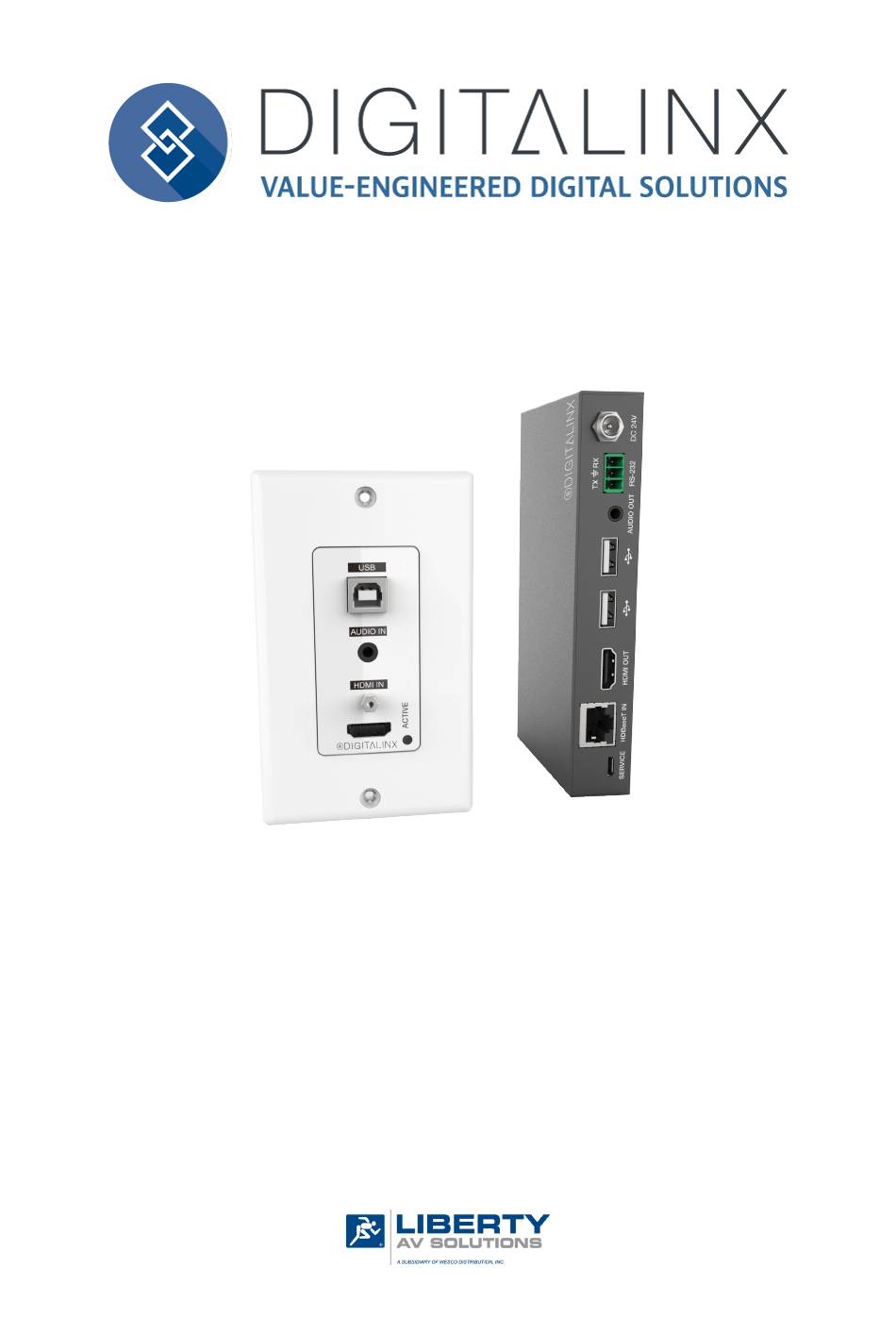

  • Page 1 DL-1H1A1U-WPKT-W Install Guide Rev 181219 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80921 Fax: 719-260-0075...
  • Page 2: Product Overview

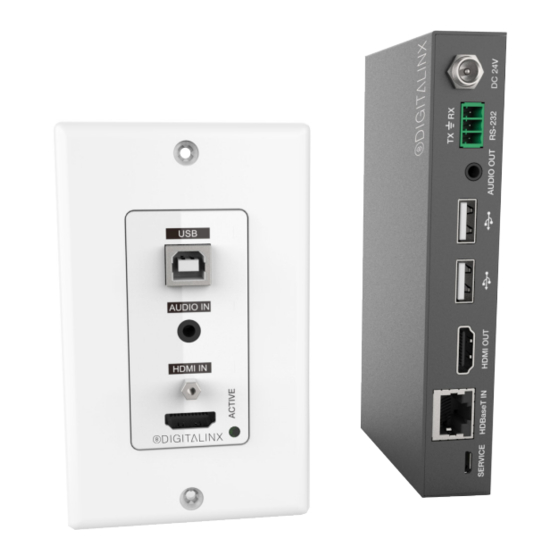

    40m / 120’ and 1080P up to 70m / 230’. The audio circuit is completely separate and is not dependent on the HDMI or USB input source to be active. The Digitalinx DL-1H1A1U-WPKT-W is HDMI 1.4b and HDCP 2.2 compliant and supports CEC pass through.
  • Page 3 5. RS232 - Serial port for transmitting / receiving RS232 signals 6. HDBaseT OUT - HDBaseT output port 7. DC24V - Phoenix connector for connecting external power supply Note: The DL-1H1A1U-WPKT-W-TX can receive power via HDBaseT from the receiver when connected together with a Category 6 F/UTP cable...
  • Page 4 DL-1H1A1U-WPKT-W Install Guide Receiver 1. ACTIVITY LED’S • When POWER LED is ON, unit is receiving power • When LINK LED is ON, the TX and RX is connected properly • When HDCP LED is ON, unit is receiving HDCP encrypted content •...
  • Page 5 6. Connect an HDMI cable and any desired control accessories between the source and the transmitter (DL-1H1A1U-WPKT-W-TX). 7. Connect a computer USB port to the transmitter (DL-1H1A1U-WPKT-W-TX) USB host port. 8. Connected USB peripherals such as white-boards and USB cameras the to USB client ports of the receiver (DL-1H1A1U-WPKT-W-RX) USB ports.
  • Page 6 Cabling Requirements HDBaseT Cabling To ensure proper performance of the DL-1H1A1U-WPKT-W, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably.
  • Page 7: Technical Specifications

    DL-1H1A1U-WPKT-W Install Guide Technical Specifications VIDEO Video Inputs (TX) (1) HDMI Video Input Connector (TX) (1) HDMI type A Input Video Signal HDMI Video Output (RX) (1) HDMI Video Output Connector (RX) (1) HDMI type A Output Video Signal HDMI...
  • Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportli- bav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075...
