Summary of Contents for DigitaLinx DL-HD2100

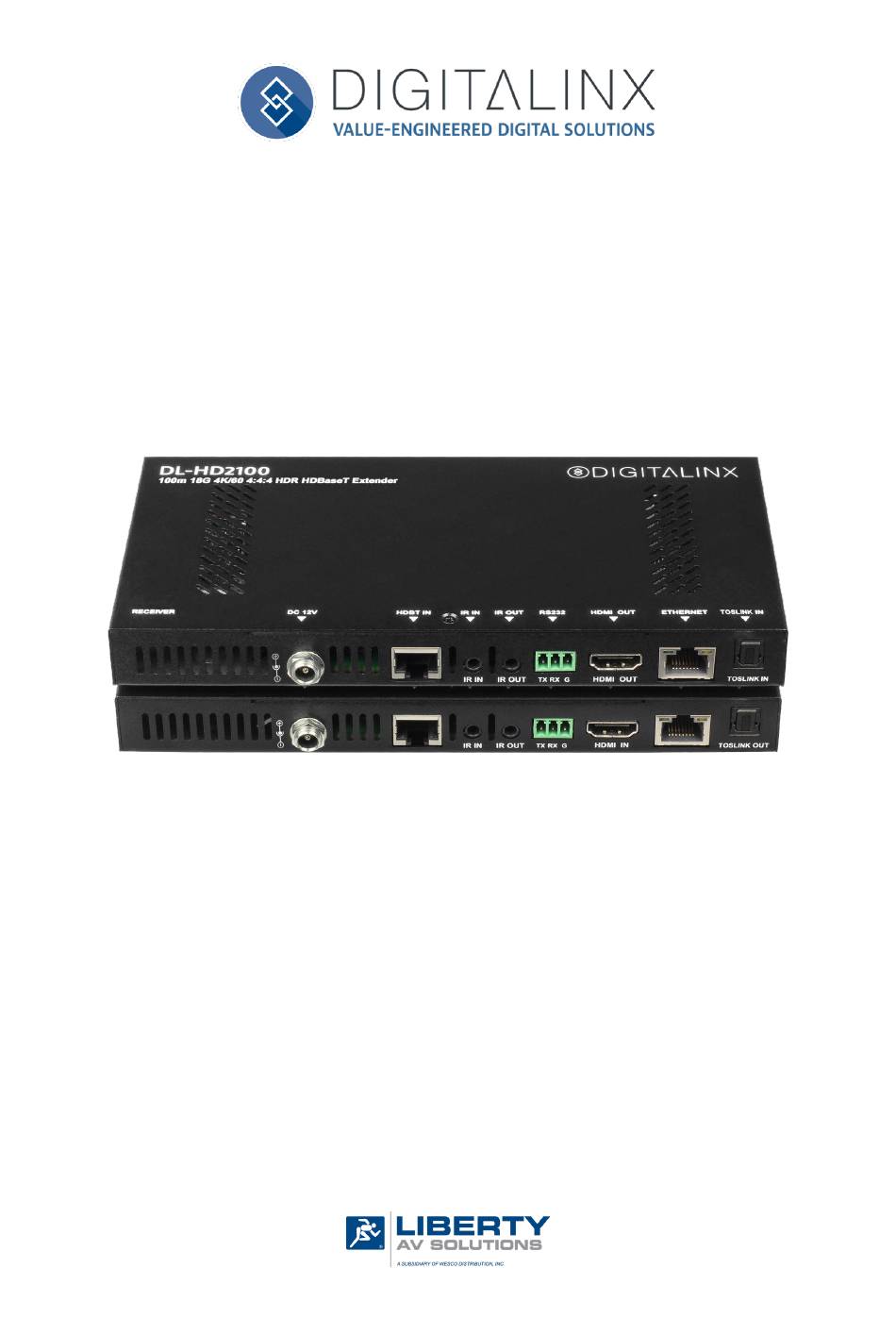

  • Page 1 DLHD2100 Owners Manual Rev 181010 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80921 Fax: 719-260-0075...
  • Page 2 DL-HD2100 Owners Manual Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions.
  • Page 3: Table Of Contents

    DL-HD2100 Owners Manual Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������� Transmitter / Front and Back View ��������������������������������������������������������������������������������������������������������������� Receiver / Front and Back View ��������������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Quick Start ���������������������������������������������������������������������������������������������������������������������������������������������������� Connecting a Video Source ���������������������������������������������������������������������������������������������������������������������������...
  • Page 4: Product Overview

    Product Overview The DigitaLinx DL-HD2100 HDBaseT extender set extends HDMI audio, video as well as control up to 100m / 330’ using a single Category 6 cable. Supports HDMI 2.0a, HDR10 and HDCP 2.2 as well as Dolby Atmos and DTS:X audio formats.
  • Page 5: Front And Rear Panels

    Transmitter / Front and Back View 1. FRONT PANEL DIAGNOSTIC LEDs; • POWER -Solid, the DL-HD2100 extender is receiving power from the power supply or from the remote extender via Category 6 cabling. • STATUS - Flashes once per second, the HDBaseT processor is running.
  • Page 6: Receiver / Front And Back View

    Receiver / Front and Back View 1. FRONT PANEL DIAGNOSTIC LEDs; • POWER -Solid, the DL-HD2100 extender is receiving power from the power supply or from the remote extender via Category 6 cabling. • STATUS - Flashes once per second, the HDBaseT processor is running.
  • Page 7: Installation Instructions

    Connect the display to the HDMI output on the DL-HD2100 receiver labeled HDMI OUT using an HDMI cable that is less than or equal to 5 meters in length. It is recommended to keep the DL-HD2100 receiver near the display input as it is not recommended that an active HDMI cable be used on the HDMI output on the...
  • Page 8: Hdbaset Connection

    DL-HD2100 Owners Manual HDBaseT Connection Connect one end of a Category cable to the DL-HD2100 transmitter labeled TWISTED PAIR, then connect the other end of the Category cable to the DL-HD2100 receiver labeled TWISTED PAIR Twisted Pair Wiring TIA/EIA-568B Use TIA/EIA-568B wiring for Category 6...
  • Page 9: Connecting Ir Control

    Attach the IR emitter to the IR receiver of the source device, insert the TS 3.5 mm plug of the emitter to the IR OUT port of the DL-HD2100 transmitter. Insert the TS 3.5 mm plug of the IR receiver (eye) to the IR IN port of the DL-HD2100 receiver.
  • Page 10: Apply Power

    DL-HD2100 Owners Manual Apply Power Connect the included power supply to the transmitter or receiver and lock the power supply to the power connector by twisting the locking collar clockwise. It is not required that both the transmitter and receiver be...
  • Page 11: Application Diagrams

    DL-HD2100 Owners Manual Application Diagrams HDMI Extension / Bi-Directional IR Control IR Remote Disc Player IR Emitter (2) IR Eye (1) Power Outlet HDMI CATx IR Eye (2) IR Emitter (1) Display IR Remote...
  • Page 12: Hdmi Extension / Control System Ir Control

    DL-HD2100 Owners Manual HDMI Extension / Control System IR Control Control System / Switcher IR-AC CABLE HDMI CATx IR Emitter Display...
  • Page 13: Hdmi Extension / Control System Rs232 Control

    DL-HD2100 Owners Manual HDMI Extension / Control System RS232 Control Laptop Control System HDMI CATx Display...
  • Page 14: Hdmi Extension / Arc Audio Mode

    DL-HD2100 Owners Manual HDMI Extension / ARC AUDIO MODE IR Remote Disc Player A/V Receiver IR Emitter (2) IR Eye (1) up to 100m / 330’ Switch set to ARC IR Eye (2) HDMI CATx AUDIO IR Emitter (1) Display...
  • Page 15: Hdmi Extension / Toslink Audio Mode

    DL-HD2100 Owners Manual HDMI Extension / TOSLINK AUDIO MODE IR Remote Disc Player A/V Receiver IR Emitter (2) IR Eye (1) up to 100m / 330’ Switch set to TOSLINK IR Eye (2) HDMI CATx AUDIO Smart TV Audio via Toslink...
  • Page 16: Technical Specifications

    DL-HD2100 Owners Manual Technical Specifications Supported Audio and Video Video Compliance HDMI 2.0+, HDCP 2.2, ARC (Audio Return Channel) and CEC (Consumer Electronics Control) SMPTE: Up to 4096x2160@60Hz (4:4:4 chroma sub-sampling / Input / Output Resolution Support 8 bit deep color)
  • Page 17 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
