DL-HD2100 Quick Install Guide
For complete owners manual go to www.libav.com or use a QR reader to access
Important notice:
• Do not attempt to disassemble or alter the housing. There are no user-serviceable parts
inside the unit. Doing so will void your warranty.
• To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and
destination equipment must be powered off during installation.
• Do not connect the device to a telecommunication outlet wired to unrelated equipment. Doing so may
damage the unit or any connected equipment. Ensure all connected twisted pair cabling is straight-through
(point-to-point).
• Allow proper ventilation to reduce the risk of thermal failure.
This guide is for quick installation only.
the manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DigitaLinx DL-HD2100
Summary of Contents for DigitaLinx DL-HD2100
- Page 1 DL-HD2100 Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Important notice: •...
-

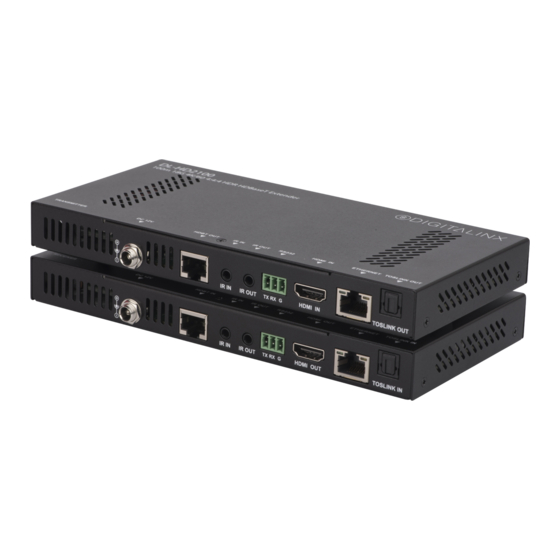

Page 2: Product Overview
The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected. The DL-HD2100 is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry. - Page 3 Transmitter FRONT PANEL DIAGNOSTIC LEDs; • POWER -Solid, the DL-HD2100 extender is receiving power from the power supply or from the remote extender via Category 6 cabling. • STATUS - Flashes once per second, the HDBaseT processor is running. • HDCP - Solid, HDCP signal is present in the HDMI stream. Flashes quickly, non-encrypted HDCP signal is present in the HDMI stream.
- Page 4 Receiver FRONT PANEL DIAGNOSTIC LEDs; • POWER -Solid, the DL-HD2100 extender is receiving power from the power supply or from the remote extender via Category 6 cabling. • STATUS - Flashes once per second, the HDBaseT processor is running. • HDCP - Solid, HDCP signal is present in the HDMI stream. Flashes quickly, non-encrypted HDCP signal is present in the HDMI stream.
- Page 5 8. Power on attached audio/video devices. Passing IR Signals: The DL-HD2100 is capable of passing IR signals between 33 and 55 KHz. To prevent damage to any of the electronics, the extenders should be powered off while inserting or removing any IR components. Inserting an IR transmitter into the IR IN port may damage the IR circuit for that extender.
-
Page 6: Cabling Requirements
Cabling Requirements To ensure proper performance of the DL-HD2100, it is recommended that you use solid core Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably. When using shielded category cabling ALWAYS... -
Page 7: Technical Specifications
Technical Specifications Supported Audio and Video Video Compliance HDMI 2.0b, HDCP 2.2, ARC (Audio Return Channel) and CEC (Consumer Electronics Control) Input / Output Resolution Support 4096x2160 @24/25/30/60Hz, 3840x2160 @24/25/30/60Hz, 1920x1200 @60Hz, 1920x1080 @60Hz, 1680x1050 @60Hz, 1600x1200 @60Hz, 1600x900 @60Hz, 1440x900 @60Hz, 1366x768 @60Hz, 1360x768 @60Hz, 1280x1024 @60Hz, 1280x960 @60Hz, 1280x800 @60Hz, 1280x760 @60Hz, 1024x768 @60Hz, 800x600 @60Hz Maximum Pixel Clock... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8898 or email us at supportlibav@libav.com www.intelix.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075...
