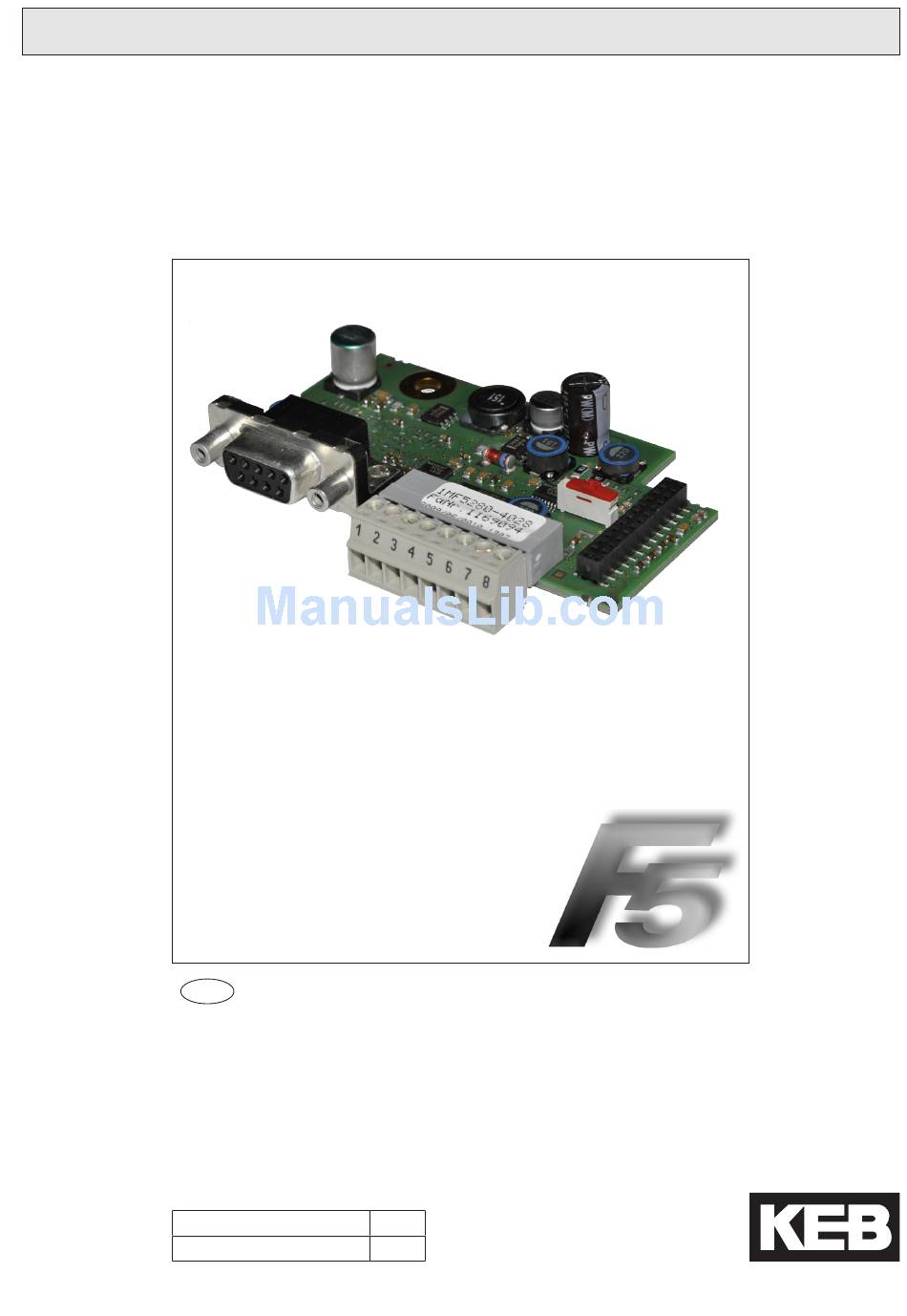

  • Page 1 COMBIVERT INSTRUCTION MANUAL Encoder Interface Channel 1 HTL without inverted signals Channel 2 variable Mat.No. Rev. DLF5ZEM-K070...
  • Page 3: Table Of Contents

    Table of Contents 1. Safety Instructions ..................4 Validity ........................4 1.2 Qualification ......................4 2. Product Description ..................5 General .......................5 Material number ....................5 Scope of delivery (option or replacement delivery) ..........5 Mechanical installation ..................6 3. Description of the Interface ................6 Voltage supply ....................6 Channel 1 ......................7 3.2.1...
  • Page 4: Safety Instructions

    The used semiconductors and components of KEB are developed and dimensi- oned for the use in industrial products. If the KEB COMBIVERT is used in ma- Use under spe-...
  • Page 5: Product Description

    General Each of the interface cards delivered by KEB include two interfaces. As there are numerous different combinations available each interface will be described by means of separate instructions. The instruction covers the installation of the interface card, the connection as well as the start-up of a suitable encoder.
  • Page 6: Mechanical Installation

    Safety Instructions Mechanical installation All kind of works on the inverter may be carried out by authorized personnel in accordance with the EMC and safety rules only. • Switch inverter de-energized and await capacitor discharge time • Pull off operator •...
  • Page 7: Channel 1

    Safety Instructions Figure 3.1 Voltage supply of encoder interfaces Internal voltage supply of the COM- 24 VDC BIVERT (I 120 mA). Current I reduces itself by draw current at Uext the 5 V-output, as well as at the 15V-output in accordance with the following formula: 5 V x I - –––––––––...
  • Page 8: Assignment Of X3A

    Safety Instructions Terminal assign- The pin assignment has changed in relation to the previ- ment changed ous version. 3.2.3 Assignment of X3A Figure 3.2.3 Description of terminal strip X3A Name Description Encoder track A HTL signal+ n.c. – Encoder track B HTL signal+ n.c.
  • Page 9: Evaluation Of The Zero Signal

    Safety Instructions 3.2.4.2 Evaluation of the Zero Signal The zero impulse is required to determine valid position points. In case of pure speed con- trols the signal does not need to be connected. In the following signal sequence the maxi- mum permissible length of the zero impulse of the encoder is visible.
  • Page 10: Connection Of The Encoder

    • 2 • R max. encoder current I : see encoder description Supply voltage U: 15 V 24 V minimum input voltage U : see encoder description KEB encoder cable resistance R: 0,036 Ω/m at 0,5 mm² GB - 10...
  • Page 11: Tested Encoders

    Safety Instructions 3.2.9 Tested encoders The following encoder can be used dependent on the interface and the control: Manufacturer Type Encoder type Heidenhain HTL-Incremental Encoder • ROD 436 However, this does not restrict the use of rotary encoder with same specifications of other manufacturers.
  • Page 12 +39 02 33535311 • fax: +39 02 33500790 net: www.keb.it • mail: kebitalia@keb.it KEB Power Transmission Technology (Shanghai) Co.,Ltd. No. 435 QianPu Road, Songjiang East Industrial Zone, KEB Japan Ltd. CHN-201611 Shanghai, P.R. China 15–16, 2–Chome, Takanawa Minato-ku fon: +86 21 37746688 • fax: +86 21 37746600 J–Tokyo 108-0074...
