How to remove the webcam cover
Hide thumbs
Also See for FELIX Pro L:
- How-to (27 pages) ,
- Quick start manual (26 pages) ,
- Firmware update (15 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Felix printers FELIX Pro L
Summary of Contents for Felix printers FELIX Pro L

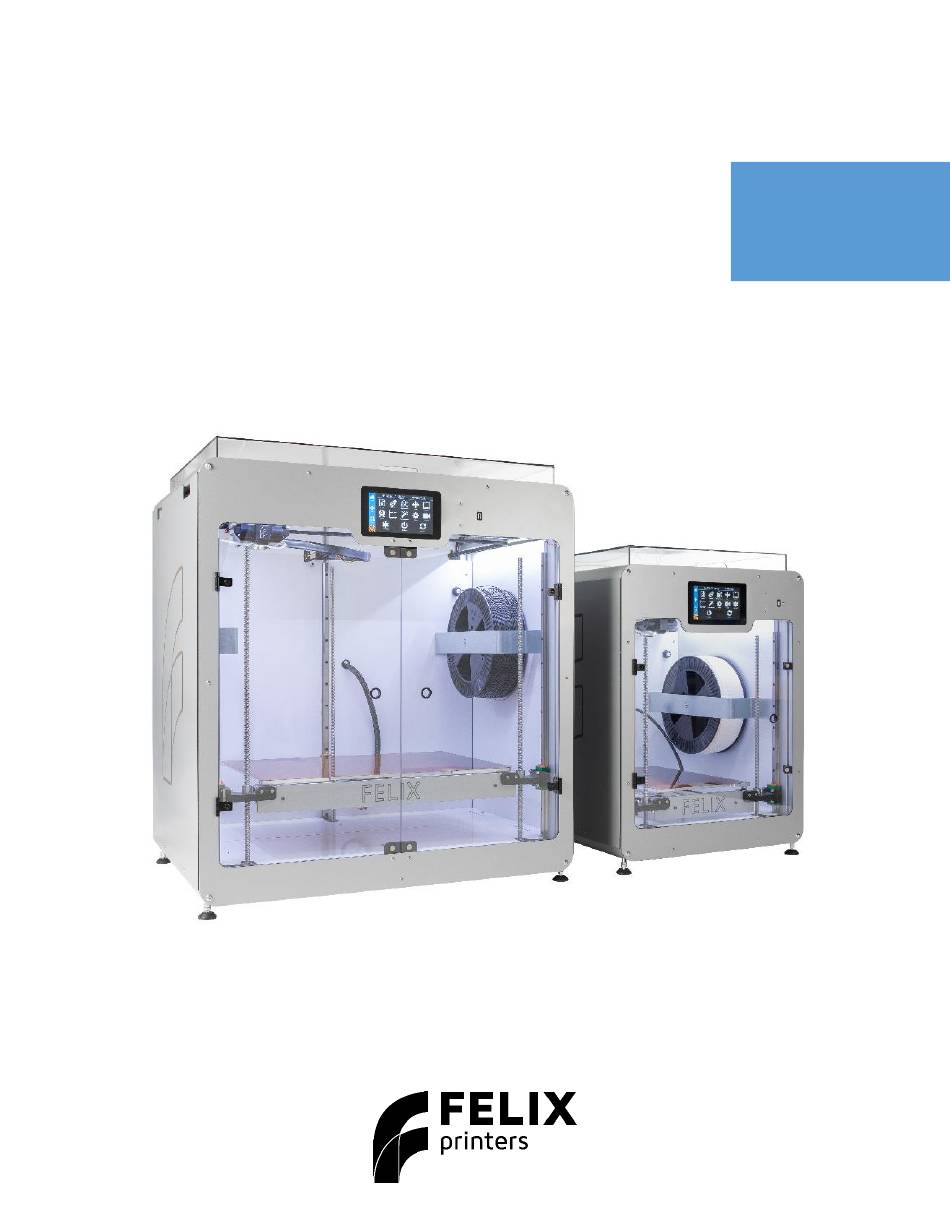

- Page 1 How to remove the webcam cover 22 December FELIX Pro L and XL 2023 Revision 0 series...
- Page 2 They need to be loosend a little bit (1-2 turns). When removing the webcam panel be carefull for the ribbon cable of the webcam that is attached to the panel! Carefully lift the panel. www.FELIXprinters.com FELIX Pro L XL...
- Page 3 Place the Shield back on the Pi. Make sure all the pins are connected correctly and there should not be a pin that is not connected! Keep in mind that there are two rows of pins! www.FELIXprinters.com FELIX Pro L XL...
- Page 4 How to remove the webcam cover 22 December 2023 6 Connect webcam cable Carefully remove the top shield of the raspberry pi (red square). Dubble check if the camera cable is correctly connected in the webcam. Orientation is important! www.FELIXprinters.com FELIX Pro L XL...
- Page 5 Insert the ribbon cable and make sure the blue side of the cable is pointing toward the USB hub and ethernet connector. When plugged in completely, push the black lit at both sides at a time to close the connector. See picture below. www.FELIXprinters.com FELIX Pro L XL...
- Page 6 Tighten the 2 bolds highlighted in the piture below. If you feel that is doesn’t fix the panel to the frame, loosen the bolt a couple rotations and tighten it again. The nut needs to rotate 90 degrees insite de profile to fix the panel. Test if the webcam functions as intended! www.FELIXprinters.com FELIX Pro L XL...
- Page 7 If you are unable to continue or have any questions, you can check at the support section of our website or you can contact us directly: Website: www.felixprinters.com/support Email: support@felixprinters.com Telephone: +31 (0)30 30 31 387 Address: Zeemanlaan 15, 3401MV IJsselstein, The Netherlands Kind regards, FELIXprinters www.FELIXprinters.com FELIX Pro L XL...
