- Page 1 HDMI to HDMI Scaler - ID# 15444 Operation Manual...

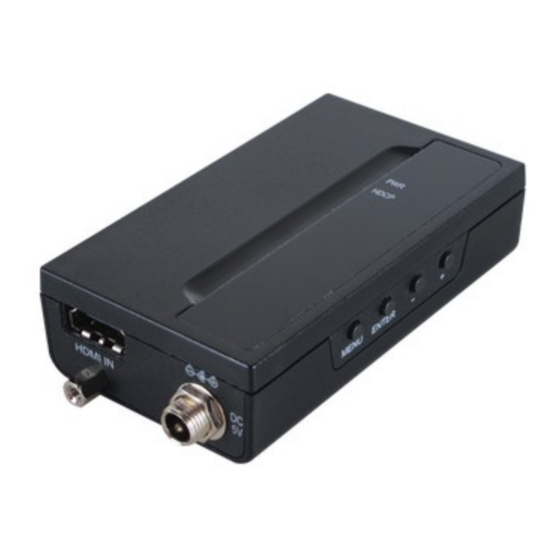

- Page 2 Introduction The compact HDMI to HDMI Scaler box is designed to scale HDMI sources, either HD or PC resolution, to an alternative HDMI resolution (HD or PC). Both of maximum support input and output resolution is up to 1920 x 1200. The HDMI, HDCP and DVI are compliant which is perfect solution for the integration of sources where resolution and/or resolution type requires conversion.
- Page 3 Operating Functions and Controls Top Panel PWR: This LED will illuminate when the scaler box connected to a power supply. When LED flashing, the scaler box goes to “standby” mode. HDCP: This LED will illuminate when detected HDCP source. Right Panel 1.
- Page 4 Left Panel SERVICE: The slot is for manufacturer use only. HDMI OUT: Connect to an HDMI equipped TV/monitor for display of the HDMI source signal. Side Panel MENU: Press this key to enter menu, press again to return. ENTER: Press this key to confirm menu selection. Press “ENTER” key then plug the power in for factory reset.
- Page 5 brightness from 0~100. Saturation To set picture saturation from 0~100. To set picture hue from 0~100. To set picture Sharpness sharpness from 0~100. Picture Reset Reset picture adjustment status. Aspect Full Set picture Full aspect ratio. 16:9 TV 4:3 TV 16:10 TV Keep Ratio Overscan...
- Page 6 block. ( LPCM 2CH, LPCM 6CH, LPCM 8CH, Bitstream, HD, Follow TV**) Output 480p, 576p, Set output 720p59 720p50,720p59, resolution. Resolution 720p60, 1080p23, 1080p24, 1080p25, 1080p29,1080p30, 1080i50, 1080p50, 1080i59, 1080i60, 1080p59, 1080p60, 640x480, 800x600, 1024x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1400x1050, 1440x900, 1600x900, 1600x1200,...
- Page 7 V Position**** Set V position from 0~100. Transparency Set OSD transparent from 0~15. Menu Timeout Set Menu timeout from 5~50 or set to Off for no timeout. Set Info timeout Info. Timeout from 5~50 or set to Off for no timeout.
- Page 8 information Firmware Version To show device’s correct firmware version. * If TV native is not on the above preset resolution, then will set to 1280x720@60. ** If TV is DVI, then input EDID will be DVI. *** Device will read TV’s EDID automatically, and set to native timing, if native timing cannot be supported, then will set to 720p59.
- Page 9 Connection Diagram Input Connection...
- Page 10 Timing DVI & HDMI Supported Resolutions Input Output 480i@59 480p@59 480p@60 576i@50 576p@50 720p@24/25/30/50/60 720p@50/59/60 1080i@50/60 1080i@59 1080p@24/25/30/50/60 1080p@23/29/59 640x480@60 640x480@60/72/75/85 720x400@70 800x600@60 800x600@56/60/72/75/85 1024x768@60 1024x768@60/70/75/85 1152x864@70/75/85 1280x720@60cvt 1280x768@60RB,60,75 1280x800@60RB/60/75 1280x800@60 1280x960@60/85 1280x1024@60 1280x1024@60/60cvt/75/85 1360x768@60 1366x768@60 1366x768@60RB/60 1400x1050@60RB/60 1400x1050@60...
- Page 11 1440x900@60RB/60/75 1440x900@60 1600x900@60RB 1600x1200@60 1680x1050@60RB 1680x1050@60 1920x1200@60RB NATIVE...
