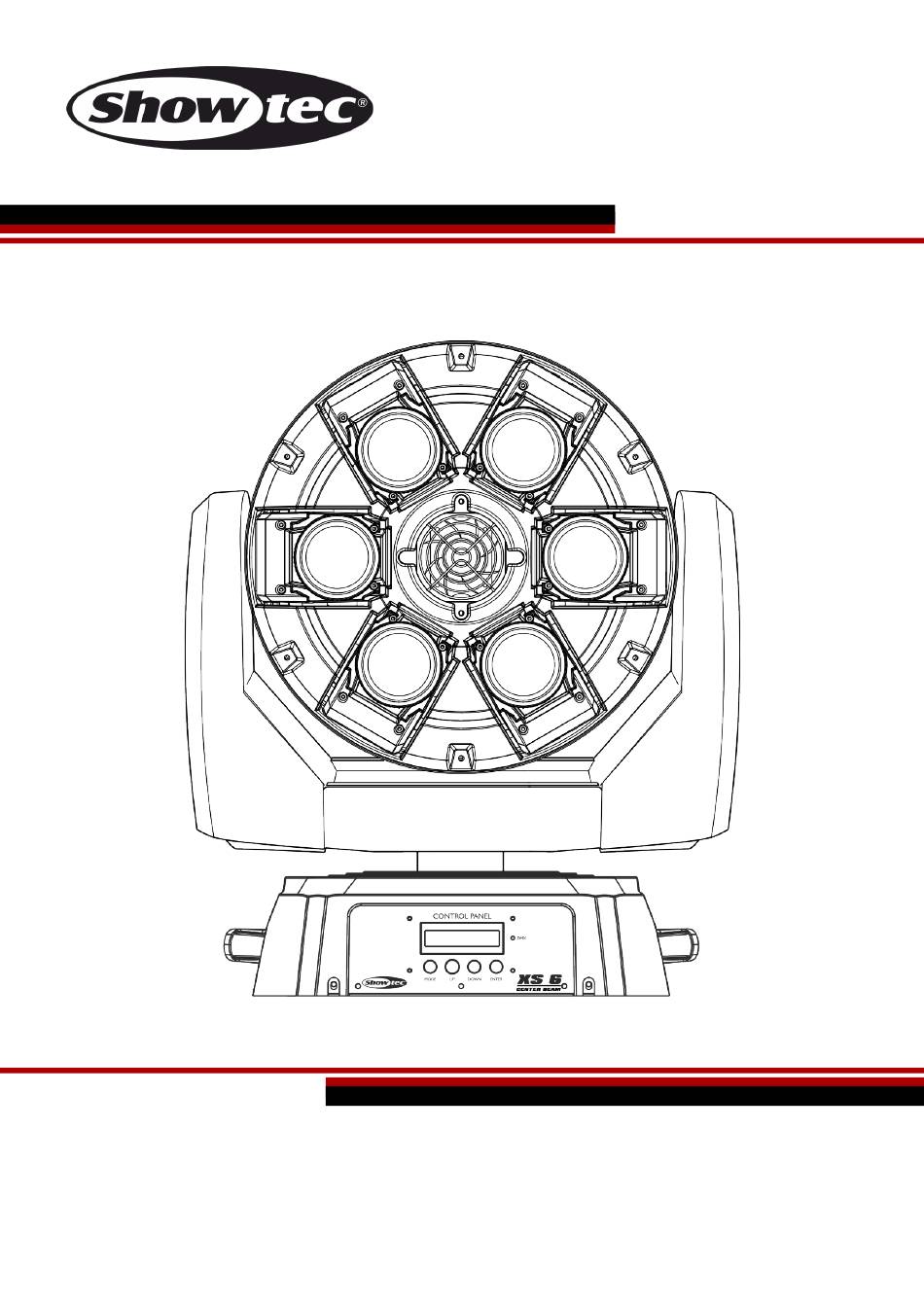

MANUAL
ENGLISH
XS-6
V1
Ordercode: 40193
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XS-6 and is the answer not in the manual?

Questions and answers

Related Manuals for SHOWTEC XS-6

Summary of Contents for SHOWTEC XS-6

  • Page 1 MANUAL ENGLISH XS-6 Ordercode: 40193 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    Backside..................................8 Installation ................................... 8 Set Up and Operation ............................... 8 Control Modes ................................9 One XS-6 (Built-in programs) ............................ 9 One XS-6 (Sound-controlled) ........................... 9 Multiple XS-6s (Master/Slave control) ........................9 Multiple XS-6s (DMX Control) ..........................10 Fixture Linking ................................11 Data Cabling ................................11...

  • Page 3: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec XS-6 • IEC power cable – 1,5 m •...
  • Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.

  • Page 5: Operating Determinations

    XS-6 • The user is responsible for correct positioning and operating of the XS-6. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.

  • Page 6: Connection With The Mains

    XS-6 The XS-6 can be placed on a flat stage floor or mounted to any kind of truss with a clamp and quick- locks. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug.

  • Page 7: Return Procedure

    XS-6 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

  • Page 8: Description Of The Device

    XS-6 Description of the device Features The XS-6 is a center effect with 6 moving heads which provide high output and great effects. Input voltage: 100-240V, 60/50Hz • Power consumption: 285W • DMX channels: 15, 32 • LCD display •...

  • Page 9: Backside

    09) IEC power connector 100-240V OUT Installation Remove all packing materials from the XS-6. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.

  • Page 10: Control Modes

    02) Plug the end of the electric mains power cord into a proper electric power supply socket. 03) Turn on the music. If the device is set to sound-control, then the XS-6 will react to the beat of the music. Please see page 16 for more information about the sound-control options.

  • Page 11: Multiple Xs-6S (Dmx Control)

    XS-6 Multiple XS-6s (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the XS-6s and other devices.

  • Page 12: Fixture Linking

    XS-6 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.

  • Page 13: Control Panel

    When using multiple XS-6s, make sure you set the DMX addresses right. Therefore, the DMX address of the first XS-6 should be 1(001); the DMX address of the second XS-6 should be 1+32=33 (033); the DMX address of the third XS-6 should be 33+32=65 (065), etc. Please, be sure that you do not have any overlapping channels in order to control each XS-6 correctly.

  • Page 14: Menu Overview

    XS-6 Menu Overview See next page for the hidden menu (11. Calibration). For more information, see pages 18-19. Ordercode: 40193...
  • Page 15 XS-6 Ordercode: 40193...

  • Page 16: Main Menu Options

    XS-6 Main Menu Options 1. DMX-512 Mode 2. Control Modes 3. Pan 4. Tilt 5. Display settings 6. Pan Angle settings 7. Tilt Angle settings 8. DMX channel modes 9. Factory Settings 10. Reset 11. Calibration 1. DMX-512 Mode 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu.

  • Page 17: Control Modes

    XS-6 2. Control Modes 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. Press the UP/DOWN buttons to toggle between the following 4 control modes: Built-in programs (Fast)

  • Page 18: Display Settings

    XS-6 5. Display settings 01) While in the main menu, press the UP/DOWN button until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose one of the 2 options: Display remains continuously ON Display turns OFF after 30 seconds 6.

  • Page 19: Factory Settings

    XS-6 9. Factory Settings 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose either No or Ok. 04) Press the ENTER button to confirm your choice.
  • Page 20 XS-6 Head 2 color settings Head 2 gobo settings Head 2 tilt settings Head 3 color settings Head 3 gobo settings Head 3 tilt settings Head 4 color settings Head 4 gobo settings Head 4 tilt settings Head 5 color settings...

  • Page 21: Dmx Channels

    XS-6 DMX Channels 15 channels (Basic) Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish.
  • Page 22 XS-6 240-247 Built-in program 30 248-255 Sound-controlled Mode Channel 8 – Built-in program speed 0-255 Speed adjustment, from fast to slow Channel 9 – Dimmer 0-255 Dimmer intensity, from dark to bright Channel 10 – Shutter Shutter closed Shutter open...
  • Page 23 XS-6 Channel 14 – Static Gobo Wheel + Gobo shake 10-15 Gobo 1 16-21 Gobo 2 22-27 Gobo 3 28-33 Gobo 4 34-39 Gobo 5 40-45 Gobo 6 46-51 Gobo 7 52-57 Gobo 8 58-63 Gobo 9 64-69 Gobo 9 shake effect, from slow to fast...

  • Page 24: Channels (Advanced)

    XS-6 32 channels (Advanced) Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish.
  • Page 25 XS-6 112-119 Built-in program 14 120-127 Built-in program 15 128-135 Built-in program 16 136-143 Built-in program 17 144-151 Built-in program 18 152-159 Built-in program 19 160-167 Built-in program 20 168-175 Built-in program 21 176-183 Built-in program 22 184-191 Built-in program 23...
  • Page 26 XS-6 53-67 Built-in program 4 68-82 Built-in program 5 83-97 Built-in program 6 98-112 Built-in program 7 113-127 Built-in program 8 128-142 Built-in program 9 143-157 Built-in program 10 158-172 Built-in program 11 173-187 Built-in program 12 188-202 Built-in program 13...
  • Page 27 XS-6 Channel 27 – Color Wheel, LED 4 0-15 White 16-31 Blue 32-47 Yellow 48-63 Purple 64-79 Green 80-95 96-111 Cyan 112-127 Orange 128-191 Counterclockwise color rotation, from slow to fast 192-255 Clockwise color rotation, from slow to fast Channel 28 – Color Wheel, LED 5...
  • Page 28 XS-6 Channel 31 – Static Gobo Wheel + Gobo shake 10-15 Gobo 1 16-21 Gobo 2 22-27 Gobo 3 28-33 Gobo 4 34-39 Gobo 5 40-45 Gobo 6 46-51 Gobo 7 52-57 Gobo 8 58-63 Gobo 9 64-69 Gobo 9 shake effect, from slow to fast...

  • Page 29: Maintenance

    04) The electric power supply cables must not show any damages or material fatigue. The XS-6 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth.

  • Page 30: Static Gobo Wheel And Color Wheel

    XS-6 Static Gobo wheel and Color wheel Static Gobo Wheel Fig. 06 Color wheel Fig. 07 Ordercode: 40193...

  • Page 31: Troubleshooting

    04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the XS-6, as this may damage the unit and the warranty will become void.
  • Page 32 XS-6 Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.

  • Page 33: Product Specifications

    XS-6 Product Specifications Model: Showtec XS-6 Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 285W (full output) DMX linking: 30pcs Fuse: F6AL/250V Dimensions: 507 x 345 x 630 mm (LxWxH) Weight: 29 kg Operating and Programming: Signal pin OUT: Pin 1 (earth), pin 2 (-), pin 3 (+)

  • Page 34: Dimensions

    XS-6 Dimensions Ordercode: 40193...

  • Page 35: Notes

    XS-6 Notes Ordercode: 40193...
  • Page 36 ©2015 Showtec...
