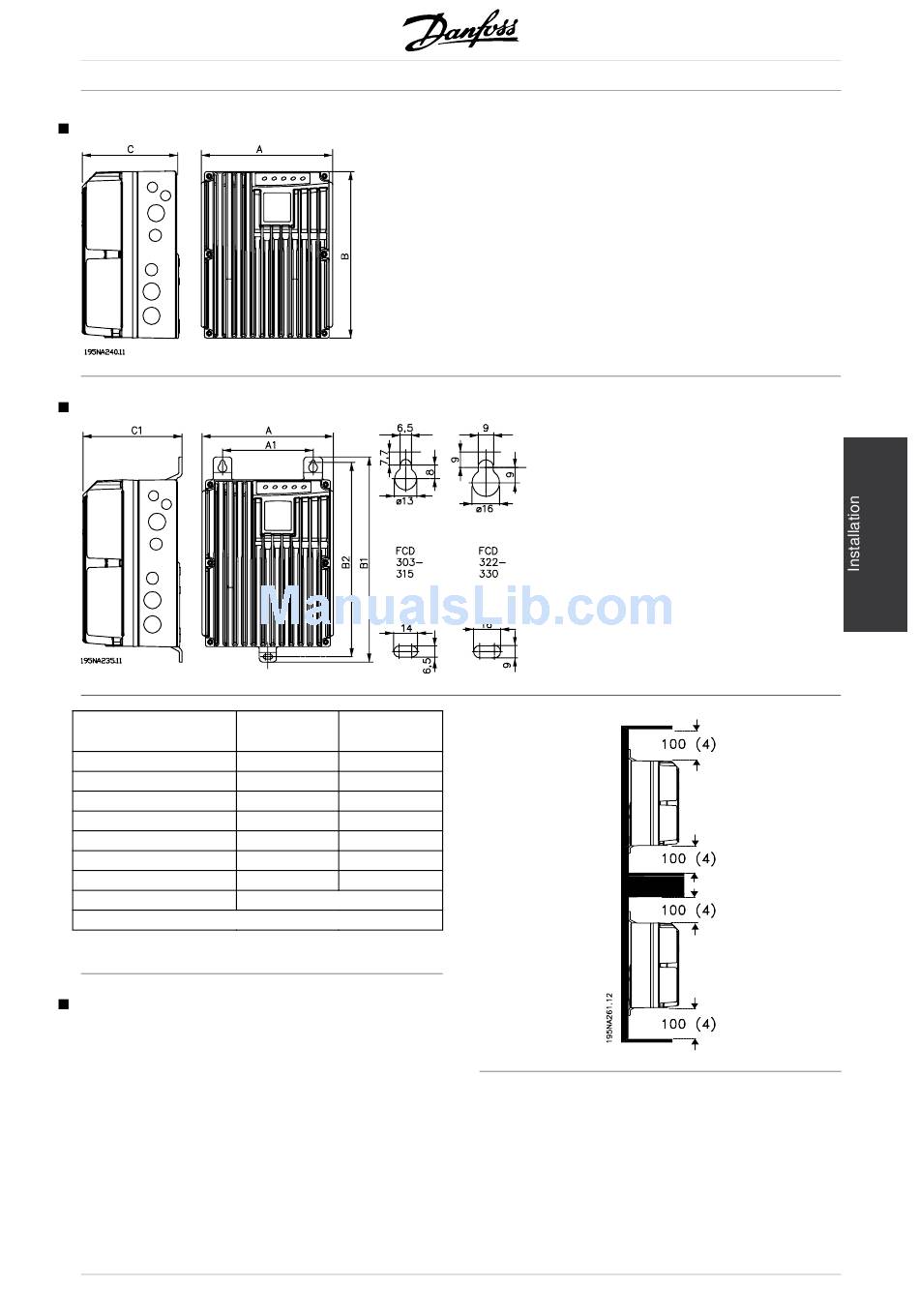

Mechanical dimensions, FCD, motor mounting

Mechanical dimensions, stand alone mounting

Mechanical dimensions in
mm
A
A1
B
B1
B2
C
C1
Cable Gland sizes M16, M20, M25 x 1.5 mm
Space for cable inlets and service switch handle 100-150 mm
Spacing for mechanical installation
All units require a minimum of 100 mm air from other
components above and below the enclosure.
